描述

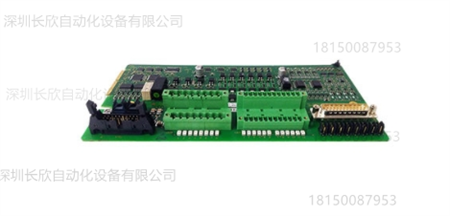

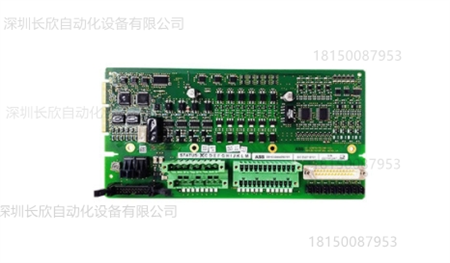

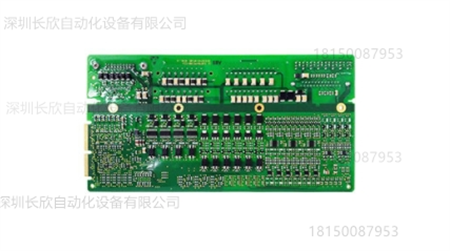

ABB GCD207B101是一款高性能的励磁功率模块，订货号为3BHE024642R0101。以下是其详细产品详情：
产品定位：专为中大功率同步发电机（1MW-10MW）打造的励磁功率模块，是发电机励磁系统的核心动力源。
功能特点
调节精准：采用数字化PID调节算法，电压调节精度≤±0.5%，能在100ms内对负载变化做出响应，调整励磁电流，稳定发电机端电压。
集成度高：将整流桥、控制板、保护电路集成于一体，无需额外搭配整流柜和控制柜，减少接线量，现场安装调试便捷，支持Modbus RTU协议，可远程监控。
保护全面：内置过流、过压、过热、缺相、短路五种保护功能，模块温度超过55℃时，内置风扇自动提速，65℃报警，70℃直接停机。
抗造耐用：防护等级达到IP21，能防滴水和固体异物，内部采用进口大功率IGBT，导通损耗小，发热少，使用寿命达10年以上，可在-10℃至+55℃环境下稳定运行。
技术参数
输入电压：根据具体应用场景和配置而定。
输出：为发电机励磁回路提供稳定的励磁电流输出。
通信接口：RS485接口，支持Modbus RTU协议。
尺寸重量：未明确提及具体尺寸和重量，但通常为紧凑设计，便于安装。
The ABB GCD207B101 is a high-performance excitation power module,part number 3BHE024642R0101.The following are its detailed product details:
Product Positioning:An excitation power module specifically designed for medium-to-high power synchronous generators(1MW-10MW),serving as the core power source for the generator excitation system.
Features
Precise Regulation:Employs a digital PID control algorithm,achieving voltage regulation accuracy≤±0.5%.It responds to load changes within 100ms,adjusting the excitation current to stabilize the generator terminal voltage.
High Integration:Integrates the rectifier bridge,control board,and protection circuit into a single unit,eliminating the need for separate rectifier and control cabinets,reducing wiring complexity,and facilitating on-site installation and commissioning.Supports Modbus RTU protocol for remote monitoring.
Comprehensive Protection:Features five built-in protection functions:overcurrent,overvoltage,overheat,phase loss,and short circuit.When the module temperature exceeds 55℃,the built-in fan automatically speeds up;an alarm sounds at 65℃;and the unit shuts down immediately at 70℃.
Durable and robust:IP21 protection rating,resistant to dripping water and solid foreign objects.Internally uses imported high-power IGBTs with low conduction loss,low heat generation,and a service life of over 10 years.Stable operation is possible in environments ranging from-10℃to+55℃.
Technical Parameters
Input Voltage:Depends on specific application and configuration.
Output:Provides stable excitation current output for the generator excitation circuit.
Communication Interface:RS485 interface,supports Modbus RTU protocol.
Dimensions and Weight:Specific dimensions and weight are not explicitly mentioned,but generally a compact design for easy installation.
