描述
产品概述

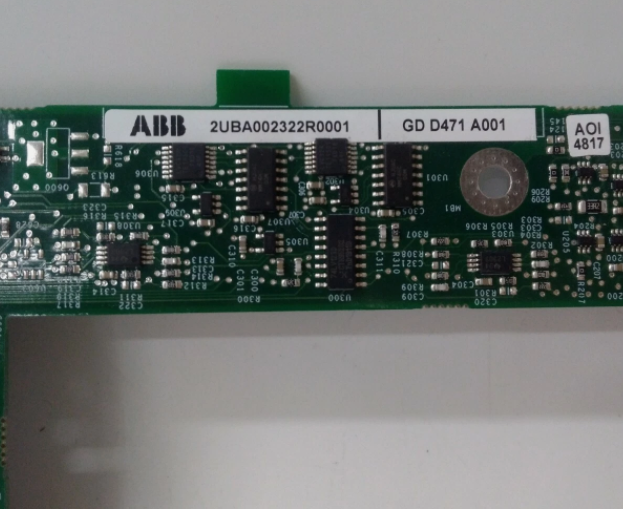

ABB GDD471A001是一款工业控制模块，属于ABB DCS（分布式控制系统）和工业自动化系列，具有多用途特性，可应用于数字控制、机器监控、电力系统、通讯接口扩展等多种场景。其核心功能包括数据传输、逻辑控制、信号处理，并支持高可靠性与抗干扰设计。
核心参数与技术特点
1.物理特性
尺寸与安装：
不同版本尺寸存在差异，常见规格为170mm×170mm或200×110×50mm，支持模块化机架安装或独立部署。
部分型号采用压铸铝外壳，防护等级达IP67，适应潮湿、多尘环境。
工作温度：-30°C至+70°C（部分版本为-15°C至+60°C）。
2.功能特性
核心功能：
数字控制与监测：用于DCS系统的控制与监视，支持工业生产线、机器人、自动化设备的运行管理。
高压变频器控制：作为功率单元控制板，连接主控制板与功率单元，通过串行通讯实现高效电力控制，包含光纤收发器、温度传感器等组件。
通讯接口扩展：支持Modbus、Profibus、以太网、串口等协议，兼容多品牌设备互联。
HMI集成：部分版本配备TFT/LED触摸屏面板，支持高分辨率图形显示与多语言操作界面。
性能优势：
高可靠性：采用嵌入式处理器（如低功耗Pentium III-M/Celeron），处理速度达13Hz，程序容量2MB，数据容量1MB。
抗干扰能力：内置滤波电路、光电隔离器，减少电磁干扰对信号的影响。
自诊断功能：可实时检测故障（如通信中断、过压短路），提升维护效率。
3.设计优势
工业级兼容性：
支持多品牌控制器连接（如ABB、西门子、施耐德），基于.NET开放架构扩展性强。
兼容AT/ATX电源，兼容性高。
扩展性：
支持PCI扩展槽和多模块级联，可扩展至数百路I/O通道。
Product Overview
ABB GDD471A001 is an industrial control module,belonging to the ABB DCS(Distributed Control System)and industrial automation series.It has multi-purpose characteristics and can be applied to various scenarios such as digital control,machine monitoring,power system,communication interface expansion,etc.Its core functions include data transmission,logic control,signal processing,and support high reliability and anti-interference design.
Core parameters and technical characteristics
1.Physical characteristics
Size and Installation:
Different versions have different sizes,the common specifications are 170mm×170mm or 200×110×50mm,and support modular rack installation or independent deployment.
Some models use die-cast aluminum shells with a protection level of IP67,adapting to humid and dusty environments.
Operating temperature:-30°C to+70°C(some versions-15°C to+60°C).
2.Functional characteristics
Core functions:
Digital control and monitoring:used for control and monitoring of DCS systems,supporting the operation and management of industrial production lines,robots,and automation equipment.
High-voltage inverter control:As a power unit control board,it connects the main control board and the power unit,and realizes efficient power control through serial communication,including optical fiber transceiver,temperature sensor and other components.
Communication interface extension:supports Modbus,Profibus,Ethernet,serial port and other protocols,and is compatible with multi-brand device interconnection.
HMI integration:Some versions are equipped with TFT/LED touch screen panels,supporting high-resolution graphic displays and multi-language operation interfaces.
Performance Advantages:
High reliability:Adopts embedded processors(such as low-power Pentium III-M/Celeron),processing speed up to 13Hz,program capacity 2MB,and data capacity 1MB.
Anti-interference ability:built-in filter circuit and photoelectric isolator to reduce the impact of electromagnetic interference on the signal.
Self-diagnosis function:can detect faults in real time(such as communication interruption,overvoltage short circuit)to improve maintenance efficiency.
3.Design Advantages
Industrial compatibility:
Supports multi-brand controller connections(such as ABB,Siemens,Schneider),and is highly scalable based on.NET open architecture.
Compatible with AT/ATX power supply,high compatibility.
Scalability:
Supports PCI expansion slot and multi-module cascade,which can be expanded to hundreds of I/O channels.
