描述

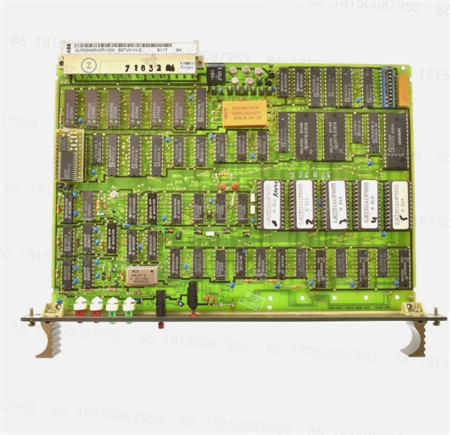

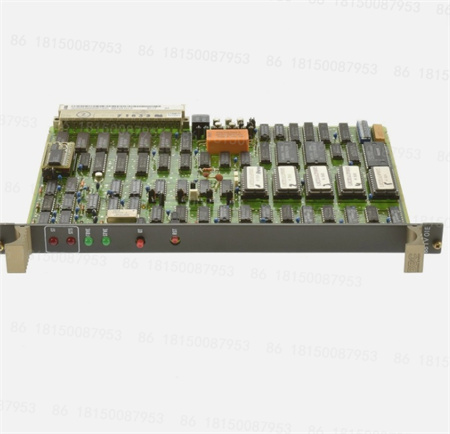

ABB GJR2346500R1000 88TV01H-E是ABB AC 800M系列中的一款数字量输出模块，专为工业自动化场景设计，适用于分布式控制系统（DCS）或过程自动化平台。以下是基于行业应用逻辑及同系列产品特性的综合分析：
一、核心功能与应用场景
信号输出与控制
作为8通道数字量输出模块，该模块可直接驱动继电器、电磁阀等执行器，实现工业设备的启停控制或状态切换。例如，在化工生产线中，它可通过输出信号控制阀门的开闭，或在电力系统中实现断路器的远程分合闸操作。
系统集成能力
支持与ABB AC 800M控制器（如PM865、PM864A）无缝集成，兼容ProControl P13等控制系统架构。其设计目标是满足电力、化工、制药等行业对高精度同步控制的需求，例如在连续生产流程中实现多设备协同动作。
安全与可靠性
模块可能内置过流保护、反极性保护等电路，降低因外部故障导致的设备损坏风险。参考同系列模块（如GJR5252300R3101）的设计，其冗余架构可支持关键场景下的无间断运行。
二、技术特性推测
电气参数
供电电压：可能采用24VDC工业标准供电，符合AC 800M系列的电源规范。
输出能力：单通道负载能力预计在0.5A至2A之间，可驱动小型继电器或电磁阀（参考同系列模块参数）。
触点类型：常开（NO）或常闭（NC）触点可选，支持干接点或湿接点输出。
物理设计
尺寸与安装：参考AC 800M系列模块的通用设计，尺寸可能为234mm（长）×99mm（宽）×60mm（高），采用DIN导轨安装，便于快速集成与维护。
防护等级：预计达到IP20标准，可防止固体异物侵入，但不适用于高湿度或液体飞溅环境。
环境适应性
温度范围：工作温度可能在-20°C至+70°C之间，存储温度为-40°C至+85°C，满足严苛工业环境的要求。
抗干扰能力：通过EMC测试，可耐受工业现场的电磁干扰（如变频器、电机启动产生的噪声）。
三、通信与协议支持
系统通信接口
模块可能通过AC 800M的CEX总线或标准工业协议（如Profinet、Modbus TCP）与上位机通信。例如，与PM865控制器配合时，可实现实时数据交互与远程参数配置。
诊断与监控
支持LED指示灯实时显示通道状态（如输出是否激活、故障报警），并可通过ABB Control Builder M软件进行远程诊断，缩短故障排查时间。
The ABB GJR2346500R1000 88TV01H-E is a digital output module in the ABB AC800M series.Designed specifically for industrial automation scenarios,it is suitable for distributed control systems(DCS)or process automation platforms.The following is a comprehensive analysis based on industry application logic and features of products in the same series:
I.Core Functions and Application Scenarios
Signal Output and Control
As an 8-channel digital output module,this module can directly drive actuators such as relays and solenoid valves to enable start/stop control or state switching of industrial equipment.For example,in a chemical production line,it can output signals to control the opening and closing of valves or remotely open and close circuit breakers in a power system.
System Integration Capabilities
It supports seamless integration with ABB AC800M controllers(such as the PM865 and PM864A)and is compatible with control system architectures such as the ProControl P13.It is designed to meet the high-precision synchronized control needs of industries such as power,chemicals,and pharmaceuticals,such as enabling coordinated operation of multiple devices in continuous production processes.Safety and Reliability
The module may have built-in overcurrent protection,reverse polarity protection,and other circuits to reduce the risk of equipment damage caused by external faults.Based on the design of modules in the same series(such as the GJR5252300R3101),its redundant architecture supports uninterrupted operation in critical scenarios.
II.Speculated Technical Characteristics
Electrical Parameters
Power Supply Voltage:It will likely use the industrial standard 24VDC power supply,complying with the AC 800M series power supply specifications.
Output Capacity:The single-channel load capacity is expected to be between 0.5A and 2A,capable of driving small relays or solenoid valves(refer to the specifications of modules in the same series).
Contact Type:Available in Normally Open(NO)or Normally Closed(NC)contacts,supporting both dry and wet contact outputs.
Physical Design
Dimensions and Mounting:Based on the common design of the AC 800M series modules,the dimensions are expected to be 234mm(L)×99mm(W)×60mm(H).It will be DIN rail-mountable for quick integration and maintenance.Protection Level:Expected to meet IP20 standards,providing protection against the intrusion of solid foreign objects,but not suitable for environments with high humidity or liquid splashing.
Environmental Adaptability
Temperature Range:Operating temperatures range from-20°C to+70°C,and storage temperatures from-40°C to+85°C,meeting the requirements of harsh industrial environments.
Interference Immunity:Passed EMC testing and withstands electromagnetic interference from industrial sites(such as noise generated by inverters and motor startup).
III.Communication and Protocol Support
System Communication Interface
The module can communicate with the host computer via the AC 800M CEX bus or standard industrial protocols(such as Profinet and Modbus TCP).For example,when used with the PM865 controller,real-time data exchange and remote parameter configuration are possible.
Diagnostics and Monitoring
LED indicators display real-time channel status(such as output activation and fault alarms).Remote diagnostics can be performed using ABB Control Builder M software,reducing troubleshooting time.
