ABB GJR5253000R0100的详细产品信息整理，结合ABB工业自动化产品命名规则及典型应用场景进行专业分析：
一、产品概述
品牌与系列
ABB：全球工业自动化与电力技术领导者，产品覆盖PLC、驱动器、机器人等领域。
GJR525系列：属于ABB AC500-S系列PLC的高性能模块化产品，专为中大型自动化系统设计，支持复杂控制任务与分布式架构。
型号解析：
GJR525：模块系列标识，对应AC500-S系列的高端子系列，强调高性能与扩展性。
3000R0100：可能表示模块型号（如3000为子系列，R0100为硬件版本或性能等级）。
末尾无附加代码（如07 CS 61）：可能为标准配置，或需通过其他渠道确认具体功能选项。
定位与用途

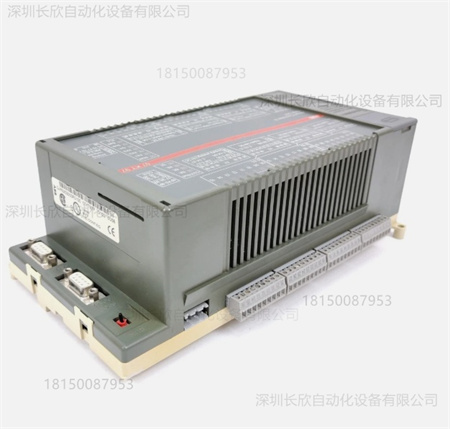

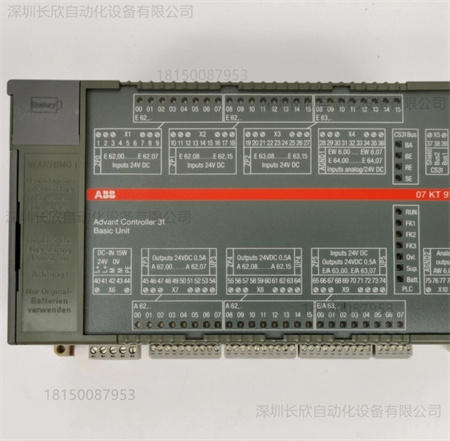

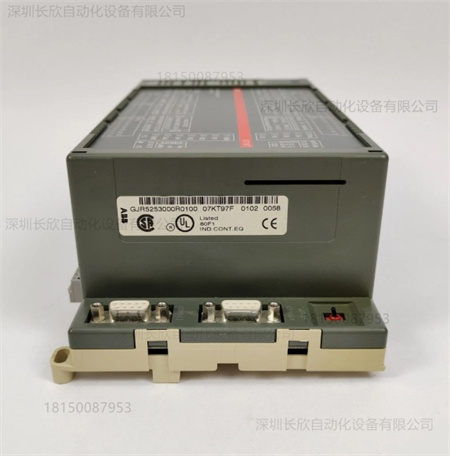

GJR5253000R0100是ABB AC500-S系列的CPU模块或功能模块，适用于：
中大型生产线控制：如汽车装配线、食品饮料灌装线、化工连续生产过程。
复杂运动控制：集成多轴伺服驱动器，实现高速、高精度同步控制（如包装机械、印刷设备）。
分布式I/O网络：作为主站管理多个远程I/O站点（如ET 200M系列），支持千米级通信距离。
二、核心功能与技术参数
1.硬件规格
处理器：
基于ARM Cortex-R系列处理器（如R5或R7），主频≥500MHz，支持多任务并行处理与实时中断响应。
内存与存储：
RAM：≥2MB SRAM，支持大型程序运行及高速数据缓存（如运动控制轨迹规划）。
存储：≥8MB Flash，支持程序存储、历史数据记录（如工艺参数日志）及配方管理。
扩展存储：支持SD卡插槽（最大32GB），用于长期数据存储或程序备份。
通信接口：
以太网：
2×100/1000Mbps端口，支持链路聚合（Link Aggregation）与冗余（如HSR/PRP）。
协议支持：Modbus TCP、OPC UA（Server/Client）、PROFINET IO Controller/Device。
现场总线：
PROFIBUS-DP主站/从站：支持最多124个从站设备，通信速率≤12Mbps。
EtherCAT主站：支持分布式时钟同步（DC），实现微秒级同步控制（如多轴伺服）。
CANopen主站：支持最多127个节点，适用于低速、高可靠性场景（如建筑自动化）。
串口：1×RS232/RS485（可选），用于调试或连接旧式设备（如HMI、条码扫描器）。
I/O扩展能力：
本地扩展：支持最多16个I/O模块（数字量/模拟量混合），总点数≤1024点（具体取决于模块类型）。
分布式扩展：通过EtherCAT或PROFINET连接远程I/O站，支持千点级I/O管理。
This article provides detailed product information for the ABB GJR5253000R0100,combining ABB’s industrial automation product naming conventions with a professional analysis of typical application scenarios.
I.Product Overview
Brand and Series
ABB:A global leader in industrial automation and power technology,with products covering PLCs,drives,robotics,and more.
GJR525 Series:A high-performance modular product within ABB’s AC500-S series of PLCs,designed for medium-to-large automation systems,supporting complex control tasks and distributed architectures.
Model Explanation:
GJR525:Module series identifier,corresponding to the high-end subseries of the AC500-S series,emphasizing high performance and scalability.
3000R0100:May indicate the module model(e.g.,3000 for a subseries,R0100 for a hardware version or performance level).
No additional code at the end(e.g.,07 CS 61):This may be a standard configuration,or specific feature options may require confirmation through other channels.Positioning and Application
The GJR5253000R0100 is a CPU module or function module in the ABB AC500-S series,suitable for:
Medium-to-large production line control:such as automotive assembly lines,food and beverage filling lines,and continuous chemical production processes.
Complex motion control:Integrating multi-axis servo drives to achieve high-speed,high-precision synchronous control(such as packaging machinery and printing equipment).
Distributed I/O networks:Serving as a master station to manage multiple remote I/O stations(such as the ET 200M series),supporting communication distances up to kilometers.
II.Core Functions and Technical Parameters
1.Hardware Specifications
Processor:
Based on an ARM Cortex-R series processor(such as the R5 or R7),with a main frequency of≥500MHz,supporting multi-tasking parallel processing and real-time interrupt response.
Memory and Storage:
RAM:≥2MB SRAM,supporting large program execution and high-speed data caching(such as motion control trajectory planning).
Storage:≥8MB Flash,supporting program storage,historical data logging(such as process parameter logging),and recipe management.Expanded Storage:Supports an SD card slot(up to 32GB)for long-term data storage or program backup.
Communication Interfaces:
Ethernet:
Two 100/1000 Mbps ports,supporting link aggregation and redundancy(such as HSR/PRP).
Protocol Support:Modbus TCP,OPC UA(Server/Client),PROFINET IO Controller/Device.
Fieldbus:
PROFIBUS-DP Master/Slave:Supports up to 124 slave devices,with a communication rate of≤12 Mbps.
EtherCAT Master:Supports distributed clock synchronization(DC),enabling microsecond-level synchronization control(such as multi-axis servos).
CANopen Master:Supports up to 127 nodes,suitable for low-speed,high-reliability scenarios(such as building automation).
Serial Ports:One RS232/RS485(optional),for debugging or connecting to legacy devices(such as HMIs and barcode scanners).I/O Expansion Capabilities:
Local Expansion:Supports up to 16 I/O modules(mixed digital and analog),with a total point count≤1024(depending on module type).
Distributed Expansion:Connects to remote I/O stations via EtherCAT or PROFINET,supporting thousands of I/O points.
