描述

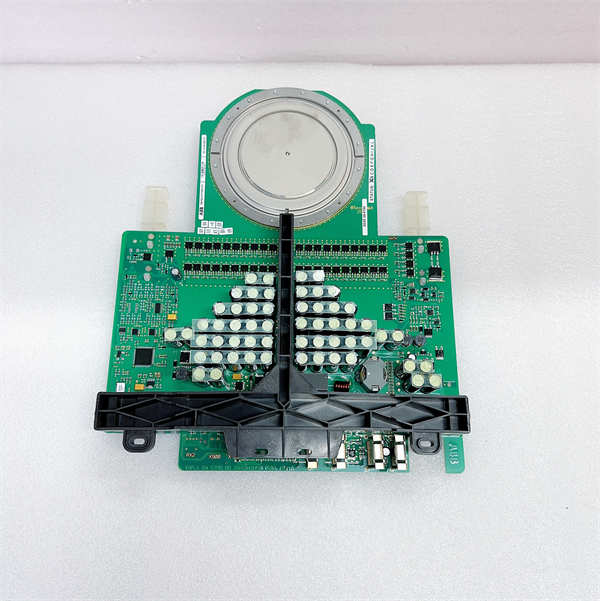

ABB GVC736CE101是一款高性能的工业自动化模块，广泛应用于电力系统控制、电机驱动及能源管理等领域。以下是其核心功能、技术特点及应用场景的综合分析：
一、产品定位与核心功能
技术类型
-可控硅/IGCT模块：属于半导体控制整流器（SCR）或IGCT（绝缘栅双极型晶体管）模块，可精确控制电流的通断与调节，适用于高压大功率应用。
-励磁控制模块：专为发电厂、变电站等电力系统设计，实现发电机励磁系统的智能化控制，提升电力稳定性与安全性。
核心功能
-电流控制：通过触发控制极信号，精确调节交流或直流电路中的电流大小与方向。
-高效励磁：采用数字化技术，快速响应励磁需求，优化发电机输出效率。
-多协议通信：支持Modbus、Profibus等工业协议，便于集成至PLC、SCADA系统。
二、技术参数与性能
电气特性
-额定电流/电压：736 A/1200 V（SCR模块），部分型号（如IGCT）可支持更高电压等级（如45 kV）。
-工作温度：-40℃至125℃，适应极端工业环境。
-防护等级：IP40，防尘防溅水。
效率与损耗
-效率：高达98%，低开关损耗设计，减少能量浪费。
-散热：自然冷却或强制风冷，支持紧凑型安装。
三、应用场景
电力系统
-发电机励磁控制：稳定电网电压，提高系统抗干扰能力。
-变电站保护：实现故障快速隔离与重合闸控制。
工业驱动
-交流电机调速：应用于风机、压缩机等设备，优化能源利用率。
-高压变频器：支持10 kV及以上电压等级的电机驱动。
新能源与可再生能源
-风电/光伏并网：作为逆变器核心组件，实现电能高效转换。
-柔性交流输电（FACTS）：用于STATCOM等设备，提升电网稳定性。
四、性能优势
高可靠性
-模块化设计，支持热插拔维护，MTBF（平均无故障时间）超过50,000小时。
-冗余保护机制，如过流、过压自动切断功能。
灵活扩展
-支持多型号组合（如与3BHB045647R0001等IGCT模块协同工作），适应复杂系统需求。
-通信接口可扩展，兼容主流工业协议。
节能与环保
-低开关损耗设计减少热能排放，符合绿色工业标准。
ABB GVC736CE101 is a high-performance industrial automation module,widely used in power system control,motor drive and energy management.The following is a comprehensive analysis of its core functions,technical features and application scenarios:
I.Product positioning and core functions
Technology type
-Thyristor/IGCT module:It belongs to the semiconductor controlled rectifier(SCR)or IGCT(insulated gate bipolar transistor)module,which can accurately control the on and off and regulation of current,and is suitable for high-voltage and high-power applications.
-Excitation control module:It is designed for power plants,substations and other power systems to realize intelligent control of generator excitation systems and improve power stability and safety.
Core functions
-Current control:By triggering the control pole signal,the current size and direction in the AC or DC circuit can be accurately adjusted.
-Efficient excitation:Using digital technology,quickly respond to excitation needs and optimize the output efficiency of the generator.
-Multi-protocol communication:Supports industrial protocols such as Modbus and Profibus,which is easy to integrate into PLC and SCADA systems.
2.Technical parameters and performance
Electrical characteristics
-Rated current/voltage:736 A/1200 V(SCR module),some models(such as IGCT)can support higher voltage levels(such as 45 kV).
-Operating temperature:-40℃to 125℃,suitable for extreme industrial environments.
-Protection level:IP40,dustproof and splashproof.
Efficiency and loss
-Efficiency:up to 98%,low switching loss design,reducing energy waste.
-Heat dissipation:natural cooling or forced air cooling,supporting compact installation.
3.Application scenarios
Power system
-Generator excitation control:stabilize grid voltage and improve system anti-interference ability.
-Substation protection:realize rapid fault isolation and reclosing control.
Industrial drive
-AC motor speed regulation:applied to fans,compressors and other equipment to optimize energy utilization.
-High-voltage inverter:supports motor drive with voltage levels of 10 kV and above.
New energy and renewable energy
-Wind power/photovoltaic grid connection:As the core component of the inverter,it realizes efficient conversion of electric energy.
-Flexible AC transmission(FACTS):Used in STATCOM and other equipment to improve the stability of the power grid.
IV.Performance advantages
High reliability
-Modular design,support hot-swap maintenance,MTBF(mean time between failures)exceeds 50,000 hours.
-Redundant protection mechanism,such as over-current and over-voltage automatic cut-off function.
Flexible expansion
-Supports multiple model combinations(such as working with IGCT modules such as 3BHB045647R0001)to adapt to complex system requirements.
-The communication interface is expandable and compatible with mainstream industrial protocols.
Energy saving and environmental protection
-Low switching loss design reduces heat emissions and meets green industrial standards.
