描述

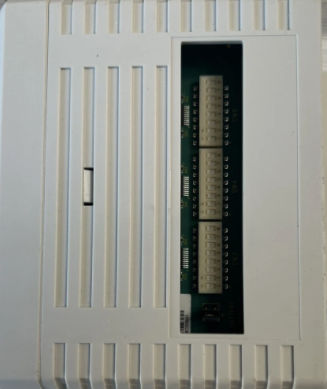

ABB HC800控制处理器模块是ABB集团推出的一款高性能工业自动化控制核心设备，专为复杂工业环境设计，广泛应用于制造业、能源、交通等领域。以下是其产品简介：
一、产品概述
HC800控制器以微型计算机或微处理器为核心，集数据处理、逻辑控制和通信功能于一体，适用于工业自动化系统的实时控制需求。其核心优势包括高可靠性、灵活扩展性和标准化编程接口，支持多种工业协议与设备集成。
二、技术特点
高性能处理器
-基于256MHz 32位Freescale ColdFire处理器，支持双核设计和64位架构，单次可处理超过5000个I/O点的闭环控制（响应时间<250毫秒），满足高实时性场景需求。
通信与接口
-提供2个千兆以太网口、2个串口及1个USB接口，支持Modbus TCP、Profinet、EtherNet/IP等协议，兼容CW800专用冗余通信总线（更新率<100毫秒）。
-支持SD系列I/O、Harmony Rack I/O和S800 I/O子系统，可扩展模拟/数字输入输出模块。
可编程性
-支持IEC 61131-3标准（如LD、FBD、ST、IL）及C/C++自定义编程，内置150+预定义控制算法库（如PID、批量控制），可通过S+Engineering工具实现图形化配置。
模块化设计
-支持DIN导轨安装，尺寸为78.74×210.82×243.84毫米，重量0.88公斤，便于集成到现有系统中。
三、应用领域
工业自动化
-工厂生产线控制、机器人协同、离散制造工艺优化。
能源与公用事业
-电力站监控、变电站自动化、天然气管道压力调节。
建筑与交通
-智能照明/空调系统、交通信号控制、铁路信号调度。
过程工业
-化工反应釜温度控制、制药工艺流程监测、水处理水质分析。
四、技术参数
存储与内存：4GB NAND闪存+512MB DDR3 RAM，支持4MB RAM与8MB Flash扩展。
电源：24V DC输入，冗余电源设计。
环境适应性：工作温度-40°C至70°C，防尘防水等级IP20。
ABB HC800 control processor module is a high-performance industrial automation control core device launched by ABB Group.It is designed for complex industrial environments and is widely used in manufacturing,energy,transportation and other fields.The following is a brief introduction to its products:
I.Product Overview
The HC800 controller is based on a microcomputer or microprocessor,integrating data processing,logic control and communication functions,and is suitable for real-time control needs of industrial automation systems.Its core advantages include high reliability,flexible scalability and standardized programming interface,and supports multiple industrial protocols and equipment integration.
II.Technical Features
High-performance processor
-Based on 256MHz 32-bit Freescale ColdFire processor,it supports dual-core design and 64-bit architecture,and can handle closed-loop control of more than 5,000 I/O points at a time(response time<250 milliseconds),meeting the needs of high real-time scenarios.
Communication and interface
-Provides 2 Gigabit Ethernet ports,2 serial ports and 1 USB port,supports Modbus TCP,Profinet,EtherNet/IP and other protocols,and is compatible with CW800 dedicated redundant communication bus(update rate<100 milliseconds).
-Supports SD series I/O,Harmony Rack I/O and S800 I/O subsystems,and can expand analog/digital input and output modules.
Programmability
-Supports IEC 61131-3 standards(such as LD,FBD,ST,IL)and C/C++custom programming,built-in 150+predefined control algorithm libraries(such as PID,batch control),and can be graphically configured through the S+Engineering tool.
Modular design
-Supports DIN rail installation,with dimensions of 78.74×210.82×243.84 mm and a weight of 0.88 kg,which is easy to integrate into existing systems.
III.Application areas
Industrial automation
-Factory production line control,robot collaboration,discrete manufacturing process optimization.
Energy and utilities
-Power station monitoring,substation automation,natural gas pipeline pressure regulation.
Buildings and transportation
-Intelligent lighting/air conditioning systems,traffic signal control,railway signal dispatching.
Process industry
-Chemical reactor temperature control,pharmaceutical process monitoring,water treatment water quality analysis.
IV.Technical parameters
Storage and memory:4GB NAND flash memory+512MB DDR3 RAM,support 4MB RAM and 8MB Flash expansion.
Power supply:24V DC input,redundant power supply design.
Environmental adaptability:operating temperature-40°C to 70°C,dust and water resistance level IP20.
