描述

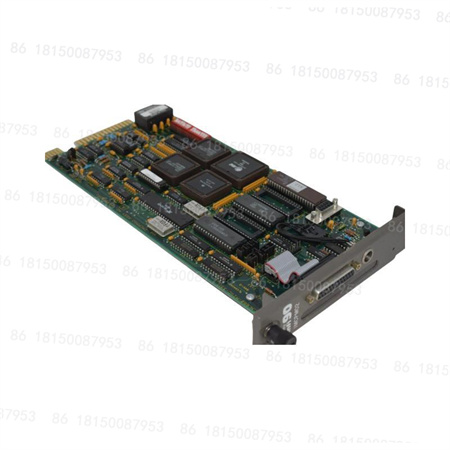

ABB IMCPM02是一款通信端口模块，主要用于ABB Bailey Infi 90工业自动化控制系统。以下是其详细介绍：
基本参数
接口：RS-232。
微处理器：32位处理器，外部总线16位，运行频率16MHz。
内存：128KB ROM和256KB RAM。
功耗：在+5VDC时，最大电流0.81A，典型电流750mA；最大功耗4.1W，典型功耗3.8W。
尺寸：约73.66mm（深）×358.14mm（高）×269.24mm（宽）。
产品特点
通信功能：为Symphony Harmony INFI 90控制系统提供RS232接口，可将控制系统连接到带有RS232端口的PC、终端或其他设备，支持Modbus RTU、ASCII和TCP/IP等通信协议。
兼容性强：可直接与现有的Network 90和Infi 90 IMS PM 01串口模块及IMC PM 01配置端口模块兼容，能安装在使用控制方式或模块总线的PCU中。
功能集成：该模块将CTT 02配置和调试终端及/或工程工作站（EWS）连接到单个Infi 90过程控制单元（PCU），具备IMC PM 01和IMS PM 01模块的所有功能。
应用领域
可应用于过程控制、机器自动化、楼宇自动化、SCADA系统等工业领域，适用于数控机械、冶金、石油化工、造纸、纺织印染、汽车制造等行业。
The ABB IMCPM02 is a communication port module designed for the ABB Bailey Infi 90 industrial automation control system.The following is a detailed description:
Basic Parameters
Interface:RS-232.
Microprocessor:32-bit processor,16-bit external bus,operating frequency:16MHz.
Memory:128KB ROM and 256KB RAM.
Power Consumption:Maximum current 0.81A,typical current 750mA at+5VDC;maximum power consumption 4.1W,typical power consumption 3.8W.
Dimensions:Approximately 73.66mm(D)×358.14mm(H)×269.24mm(W).
Features
Communication Function:Provides an RS232 interface for the Symphony Harmony INFI 90 control system,allowing it to connect to a PC,terminal,or other device with an RS232 port.It supports communication protocols such as Modbus RTU,ASCII,and TCP/IP.Strong Compatibility:This module is directly compatible with existing Network 90 and Infi 90 IMS PM 01 serial port modules and IMC PM 01 configuration port modules,and can be installed in PCUs using either a control mode or a module bus.
Functional Integration:This module connects a CTT 02 configuration and commissioning terminal and/or an engineering workstation(EWS)to a single Infi 90 process control unit(PCU),providing all the functionality of the IMC PM 01 and IMS PM 01 modules.
Application Areas:This module can be used in industrial fields such as process control,machine automation,building automation,and SCADA systems,and is suitable for use in industries such as CNC machinery,metallurgy,petrochemicals,papermaking,textile printing and dyeing,and automotive manufacturing.
