描述

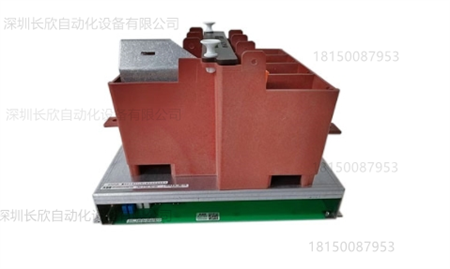

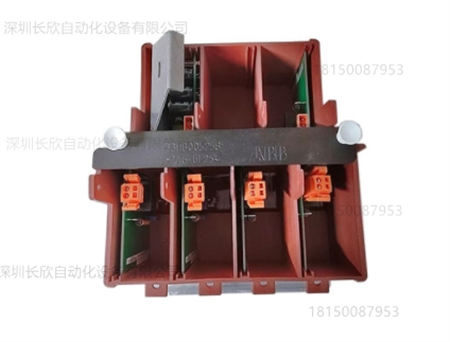

ABB KUC755AE105 3BHB005243R0105是一款高性能的工业自动化控制模块，具有多种功能和优良的性能。以下是其产品详情：
技术参数
输入电压范围：控制电源为24V DC±20%，主电路支持110V-380V工业标准电压。
输出能力：大电流30A（瞬时峰值），在励磁控制场景下支持100Hz输出频率。
处理性能：逻辑处理速度为550μs，程序容量300KB，数据存储空间200KB。
通信接口：标配RS-485（Modbus RTU）接口，可选扩展EtherNet/IP、PROFIBUS-DP接口。
保护功能：具备相过电压保护、熔断器故障监测（FUSE）、死区检测、电压损失报警等功能。
环境适应性：工作温度范围为-40℃-70℃，湿度5%-95%（无凝露），抗振动等级3g（10-500Hz）。
认证标准：符合CE、UL、IEC 61800-3（电磁兼容性）等标准，部分型号可选ATEX防爆认证。
功能特点
高集成度I/O设计：支持最多4096点数字量输入/输出（DI/O）或2048点模拟量输入/输出（AIO），可扩展至16个I/O节点。
跨平台兼容性与热备援：支持DCS、PLC、SCADA等多系统集成，二重化冗余设计允许主从控制器快速切换，切换时间小于100ms，配合无风扇散热与均流电源，确保系统连续运行时间超过50,000小时。
应用领域
高压变频器：如在冶金行业连铸机调速中，可驱动10kV/2,000kW异步电机，实现铸坯拉速的精确调节，精度可达±0.1%。
励磁控制系统：可用于水电站发电机组，调节同步发电机励磁电流，稳定输出电压，波动小于0.5%。
闸门控制：在城市防洪工程的排涝泵站中，可通过RS-485接口连接水位计与闸门执行器，实现洪水期闸门自动启闭，开度精度±1%。
The ABB KUC755AE105 3BHB005243R0105 is a high-performance industrial automation control module with diverse functions and excellent performance.Product details are as follows:
Technical Parameters
Input Voltage Range:Control power supply is 24V DC±20%,and the main circuit supports industrial standard voltages from 110V to 380V.
Output Capacity:High current of 30A(instantaneous peak),supporting 100Hz output frequency in excitation control scenarios.
Processing Performance:Logic processing speed of 550μs,program capacity of 300KB,and data storage space of 200KB.
Communication Interface:Standard RS-485(Modbus RTU)interface,with optional expansion of EtherNet/IP and PROFIBUS-DP interfaces.
Protection Functions:Provides phase overvoltage protection,fuse failure monitoring(FUSE),deadband detection,and voltage loss alarm.Environmental Adaptability:Operating temperature range:-40°C to 70°C,humidity:5%to 95%(non-condensing),vibration resistance:3g(10-500Hz).
Certifications:Complies with CE,UL,IEC 61800-3(Electromagnetic Compatibility),and other standards.ATEX explosion-proof certification is available for some models.
Features:
Highly Integrated I/O Design:Supports up to 4096 digital input/output(DI/O)points or 2048 analog input/output(AIO)points,expandable to 16 I/O nodes.
Cross-Platform Compatibility and Hot Redundancy:Supports integration with multiple systems,including DCS,PLC,and SCADA.The redundant design allows for fast master/slave controller switchover in less than 100ms.Combined with fanless cooling and current-sharing power supplies,the system ensures continuous operation for over 50,000 hours.Applications
High-voltage inverters:For example,in the speed regulation of continuous casting machines in the metallurgical industry,they can drive 10kV/2,000kW asynchronous motors,enabling precise adjustment of billet casting speed with an accuracy of±0.1%.
Excitation control systems:These can be used in hydropower station generator sets to regulate the excitation current of synchronous generators and stabilize output voltage with a fluctuation of less than 0.5%.
Gate control:In drainage pumping stations in urban flood control projects,water level gauges can be connected to gate actuators via an RS-485 interface,enabling automatic gate opening and closing during flood seasons with an opening accuracy of±1%.
