描述
ABB LD800HSE-3BDH000320R02是一款专为工业自动化设计的高性能连接控制器。以下是其详细产品详情：
基本信息

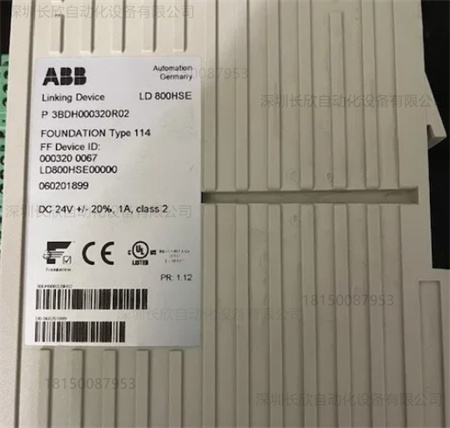

型号：LD800HSE-3BDH000320R02。
输入电压：24V DC（±20%）。
防护等级：IP20。
尺寸：47 x 131 x 111 mm。
重量：约0.4kg。
安装方式：DIN导轨安装。

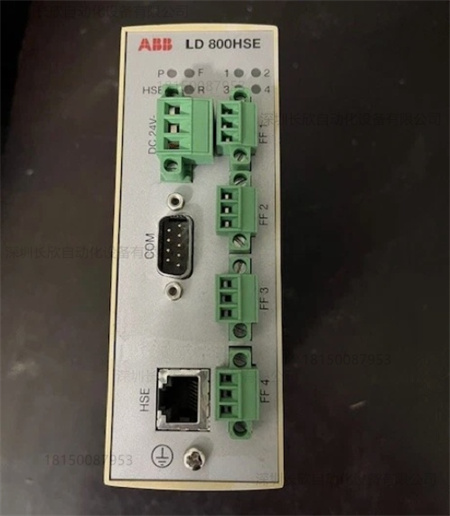

通信接口
以太网接口：1个通道，支持Ethernet 10BASE-T/100BASE-TX，传输速率为10Mbit/s或100Mbit/s。
H1总线接口：4个通道，支持基金会现场总线（FF）协议，传输速率为31.25kbit/s。
串口：RS-232，传输速率为115.2kbit/s。
功能特点
协议支持：支持多种工业通信协议，如Modbus等，能与其他设备进行数据交换和协同工作，可无缝集成到现有自动化系统中。
冗余模式：支持冗余模式，可通过串行冗余链路连接两个LD800HSE设备，提高系统的可靠性。
诊断监测：具备强大的诊断和监测功能，能够及时发现并解决潜在的通信或控制问题，确保系统稳定运行，降低维护成本。
编程灵活：用户可根据具体应用需求对其进行配置和定制，以适应各种复杂的工业自动化场景。
网关功能：是FF高速以太网（FF-HSE）子网之间的网关，并支持FF-H1链接，可实现高速、可靠的数据传输，满足实时控制需求。它可以支持多达四个独立的电隔离FF-H1链路，并在每个链路上作为Link Master和SM时间主机。
应用领域
可广泛应用于石油化工、电力、冶金、水处理、食品饮料等多个工业领域，适用于工业控制系统、机器人、纺织机械、机械包装、印刷机械、食品机械等需要现场总线通信和高精度控制的场合。
The ABB LD800HSE-3BDH000320R02 is a high-performance connectivity controller designed for industrial automation.Below are its detailed product details:
Basic Information
Model:LD800HSE-3BDH000320R02.
Input Voltage:24V DC(±20%).
Protection Rating:IP20.
Dimensions:47 x 131 x 111 mm.
Weight:Approximately 0.4 kg.
Mounting Method:DIN rail mount.
Communication Interfaces
Ethernet Interface:1 channel,supports Ethernet 10BASE-T/100BASE-TX,with a transmission rate of 10 Mbit/s or 100 Mbit/s.
H1 Bus Interface:4 channels,supports the FOUNDATION Fieldbus(FF)protocol,with a transmission rate of 31.25 kbit/s.Serial Port:RS-232,115.2 kbit/s transmission rate.
Features
Protocol Support:Supports multiple industrial communication protocols,such as Modbus,enabling data exchange and interoperability with other devices,allowing seamless integration into existing automation systems.
Redundancy Mode:Supports redundant mode,allowing two LD800HSE units to be connected via a serial redundant link,improving system reliability.
Diagnostic Monitoring:Powerful diagnostic and monitoring capabilities enable timely detection and resolution of potential communication or control issues,ensuring stable system operation and reducing maintenance costs.
Flexible Programming:Users can configure and customize it according to specific application requirements to adapt to various complex industrial automation scenarios.
Gateway Function:Serves as a gateway between FF High-Speed Ethernet(FF-HSE)subnets and supports FF-H1 links,enabling high-speed,reliable data transmission to meet real-time control requirements.It can support up to four independent,electrically isolated FF-H1 links and act as a Link Master and SM Time Master on each link.Applications:This product can be widely used in various industrial fields,including petrochemicals,electric power,metallurgy,water treatment,and food and beverage.It is suitable for industrial control systems,robotics,textile machinery,packaging machinery,printing machinery,food machinery,and other applications requiring fieldbus communication and high-precision control.
