描述

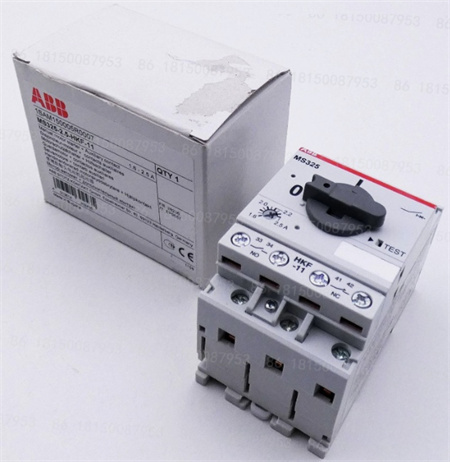

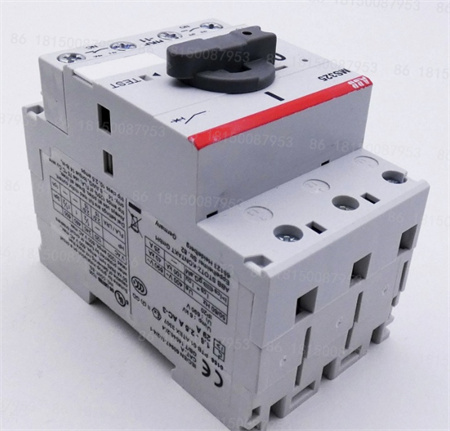

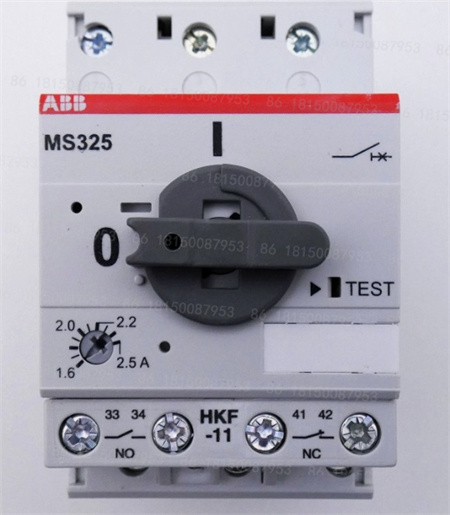

ABB MS325-2.5-HKF-11 1SAM150005R0007是一款手动电机启动器，主要用于工业应用中的电机保护和控制。以下是其产品详情：
基本信息
产品型号：MS325-2.5-HKF-11
部件号：1SAM150005R0007
防护等级：IP20
原产国：瑞士
物理特性
净重：0.36kg
宽度：54mm
高度：87.5mm
深度：75.5mm
电气参数
额定绝缘电压：690V
额定冲击耐受电压：主电路6kV
极数：3
额定频率：主电路50Hz或60Hz
额定工作电流：AC-3（ie）为2.5A
UL/CSA额定电流：2.5A
最大工作电压（UL/CSA）：主电路600V AC
每极功率损耗：在额定工作条件下为0.9-2.1W
额定极限短路分断能力：230V AC时为100kA，400V AC时为60kA，440V AC时为40kA，500V AC时为25kA，690V AC时为4kA
其他特性
操作手柄类型：旋转手柄
安装位置：位置1到6
辅助触点数量：常开（NO）1个，常闭（NC）1个
机械寿命：100000次循环
电气寿命：50000次循环
安装方式：根据IEC 60715标准，可安装在TH 35-15（35x15mm）或TH 35-7.5（35×7.5mm）的导轨上
The ABB MS325-2.5-HKF-11 1SAM150005R0007 is a manual motor starter designed for motor protection and control in industrial applications.The following are product details:
Basic Information
Product Model:MS325-2.5-HKF-11
Part Number:1SAM150005R0007
Protection Rating:IP20
Country of Origin:Switzerland
Physical Characteristics
Net Weight:0.36kg
Width:54mm
Height:87.5mm
Depth:75.5mm
Electrical Parameters
Rated Insulation Voltage:690V
Rated Impulse Withstand Voltage:Main Circuit 6kV
Number of Poles:3
Rated Frequency:Main Circuit 50Hz or 60Hz
Rated Operating Current:2.5A for AC-3(ie)
UL/CSA Rated Current:2.5A
Maximum Operating Voltage(UL/CSA):Main Circuit 600V AC
Power Dissipation Per Pole:0.9-2.1W under rated operating conditions
Rated Ultimate Short-Circuit Breaking Capacity:100kA at 230V AC,60kA at 400V AC,440V 40kA at AC,25kA at 500V AC,4kA at 690V AC
Other Features
Operating Handle Type:Rotary
Mounting Positions:Positions 1 to 6
Number of Auxiliary Contacts:1 Normally Open(NO),1 Normally Closed(NC)
Mechanical Life:100,000 Cycles
Electrical Life:50,000 Cycles
Mounting Method:Mountable on TH 35-15(35x15mm)or TH 35-7.5(35×7.5mm)DIN Rails according to IEC 60715
