描述
产品概述

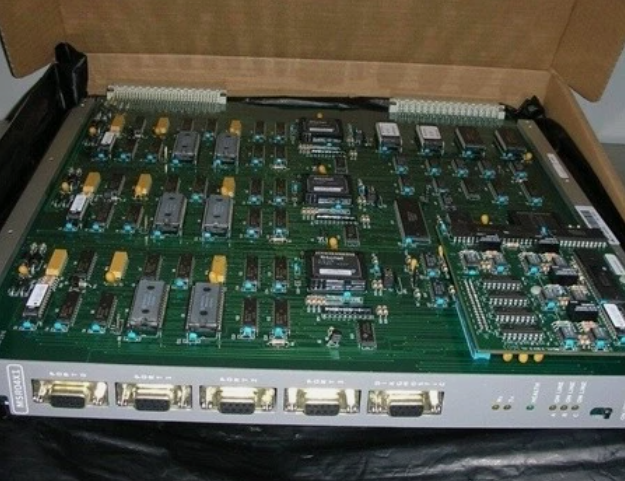

ABB MSR04X1是一款工业自动化核心模块，主要作为串行I/O卡或通信接口模块，用于扩展PLC（可编程逻辑控制器）和机器人系统的输入/输出功能。其核心特点包括多协议支持、紧凑设计和高可靠性，适用于工业自动化、机器人控制及通信集成场景。
核心功能与技术特点
1.串行I/O扩展功能
兼容性：
支持AC500和AC31系列PLC，扩展其数字输入（DI）和数字输出（DO）通道，提升系统控制能力。
可连接传感器、执行器等设备，实现设备状态监测与控制指令传输。
通信协议：
支持RS232-C、RS485、Modbus等工业标准协议，兼容多种设备通信需求。
提供以太网接口（部分型号），支持远程监控与数据传输。
2.机器人控制集成
机器人系统适配：
专为ABB机器人设计，支持机器人与外部设备（如输送链、传感器）的通信与协同控制。
提供数字信号处理功能，优化运动控制精度与响应速度。
3.技术参数
物理特性：
尺寸：紧凑型设计（具体尺寸未明确，参考同类模块约100mm×50mm×30mm）。
防护等级：IP20（工业环境适用）。
工作温度：-30℃～+85℃（部分场景扩展至-40℃～+70℃）。
通信端口：
前面板提供4个独立串行端口（端口0至3），后部复制接口，支持多设备连接。
4.安全与可靠性
故障诊断：
集成状态指示灯（如Tx/Rx活动、模块健康状态），便于实时监控。
支持单槽热修复功能，故障时可快速更换模块，减少停机时间。
保护机制：
内置过流、过压保护，防止硬件损坏。
Product Overview
ABB MSR04X1 is an industrial automation core module,mainly used as a serial I/O card or communication interface module,used to extend the input/output functions of PLC(programmable logic controller)and robot systems.Its core features include multi-protocol support,compact design and high reliability,and are suitable for industrial automation,robotic control and communication integration scenarios.
Core functions and technical features
1.Serial I/O extension function
compatibility:
Supports AC500 and AC31 series PLCs,expanding their digital input(DI)and digital output(DO)channels to improve system control capabilities.
It can connect sensors,actuators and other equipment to realize equipment status monitoring and control command transmission.
Communication protocol:
Supports industry standard protocols such as RS232-C,RS485,Modbus,etc.,and is compatible with various device communication needs.
Provides an Ethernet interface(some models)to support remote monitoring and data transmission.
2.Robot control integration
Robot system adaptation:
Designed specifically for ABB robots,it supports communication and collaborative control between robots and external devices(such as conveying chains,sensors).
Provides digital signal processing functions to optimize motion control accuracy and response speed.
3.Technical parameters
Physical characteristics:
Size:Compact design(the specific size is not clear,refer to similar modules about 100mm×50mm×30mm).
Protection level:IP20(applicable in industrial environments).
Operating temperature:-30℃~+85℃(some scenes are expanded to-40℃~+70℃).
Communication port:
The front panel provides 4 independent serial ports(ports 0 to 3),a rear copy interface,and supports multi-device connection.
4.Safety and reliability
Troubleshooting:
Integrated status indicators(such as Tx/Rx activity,module health status)for real-time monitoring.
Supports single-slot thermal repair function,and can quickly replace modules in case of failure to reduce downtime.
Protection mechanism:
Built-in overcurrent and overvoltage protection to prevent hardware damage.
