描述

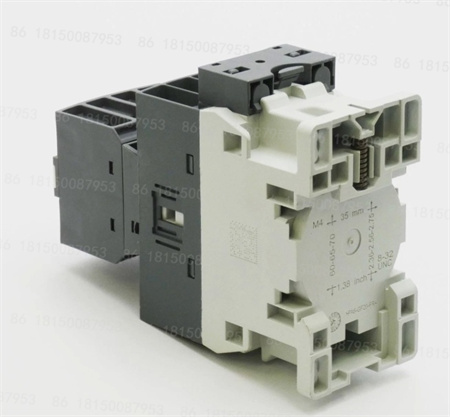

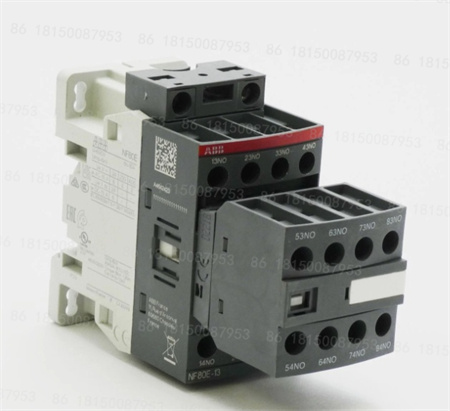

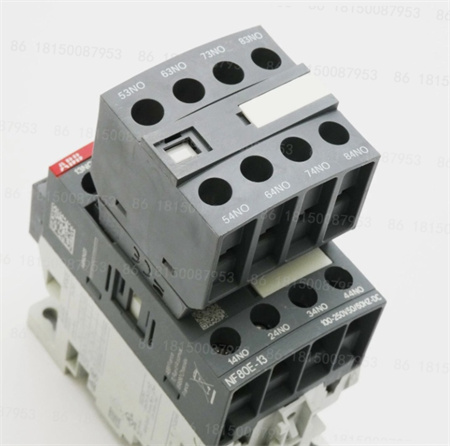

ABB NF80E-13是一款接触器式继电器，主要用于切换辅助和控制电路。以下是其产品详情：
基本信息
型号：NF80E-13
线圈电压：50Hz时为100-250V，60Hz时为100-250V，直流操作时为100-250V。
极数：8极。
触点配置：8个常开（NO）触点。
安装方式：根据IEC 60715标准，可安装在TH 35-15（35x15mm）或TH 35-7.5（35×7.5mm）的导轨上。
电气参数
额定绝缘电压（Ui）：根据IEC 60947-5-1为690V，根据UL/CSA为600V。
额定冲击耐受电压（Uimp）：6kV。
额定工作电流AC-15（Ie）：500V时为2A，690V时为2A，24/127V时为6A，220/240V时为4A，400/440V时为3A。
额定工作电流DC-13（Ie）：250V时为0.27A/68W。
最大电气开关频率：AC-15为每小时1200次循环，DC-13为每小时900次循环。
最大机械开关频率：每小时6000次循环。
产品特点
交直流通用线圈：NF系列为交/直流通用线圈，仅四种线圈便可涵盖24-500V 50/60Hz和20-500V DC的控制电压范围，具有很强的抗控制电压波动能力，可降低线圈功耗。
内置浪涌抑制器：该继电器内置浪涌抑制器，无需额外的浪涌抑制器，提高了产品的可靠性和稳定性。
The ABB NF80E-13 is a contactor relay primarily used for switching auxiliary and control circuits.Product details are as follows:
Basic Information
Model:NF80E-13
Coil Voltage:100-250V at 50Hz,100-250V at 60Hz,100-250V for DC operation.
Number of Poles:8.
Contact Configuration:8 Normally Open(NO)contacts.
Mounting:Mountable on TH 35-15(35x15mm)or TH 35-7.5(35×7.5mm)DIN rails according to IEC 60715.
Electrical Parameters
Rated Insulation Voltage(Ui):690V according to IEC 60947-5-1,600V according to UL/CSA.
Rated Impulse Withstand Voltage(Uimp):6kV.Rated operating current AC-15(Ie):2A at 500V,2A at 690V,6A at 24/127V,4A at 220/240V,and 3A at 400/440V.
Rated operating current DC-13(Ie):0.27A/68W at 250V.
Maximum electrical switching frequency:1200 cycles per hour for AC-15,900 cycles per hour for DC-13.
Maximum mechanical switching frequency:6000 cycles per hour.
Product Features
Universal AC/DC coils:The NF series is a universal AC/DC coil.With only four coil types,it covers the control voltage ranges of 24-500V 50/60Hz and 20-500V DC.It offers strong immunity to control voltage fluctuations and reduces coil power consumption.Built-in surge suppressor:The relay has a built-in surge suppressor,eliminating the need for an additional surge suppressor,which improves product reliability and stability.
