一、产品概述

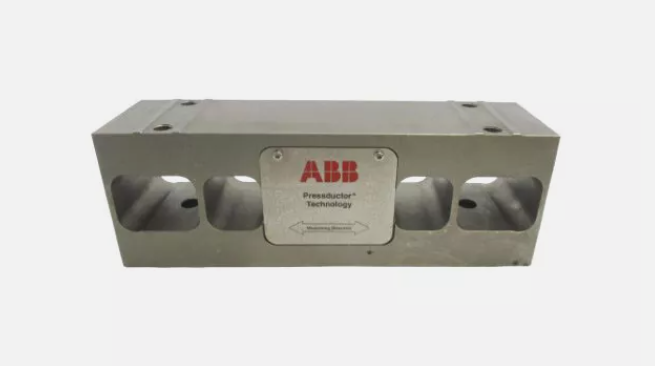

ABB PFCL201C 20KN 3BSE023409R20是一款压磁式称重传感器，专为工业自动化中的垂直力测量设计，适用于带材张力控制、金属加工、造纸、纺织等场景。其核心基于Pressductor®磁致效应技术，通过磁场变化实现高精度力测量，具有抗过载、耐腐蚀和宽温域适应性。
二、核心功能与特点
高精度测量
测量范围：0-20kN，精度等级高，适用于高精度张力控制需求。
采用压磁技术：通过磁场变化检测机械应力，信号与物理变形无关，避免传统应变片传感器的漂移问题。
环境适应性
防护等级：标准型IP65，耐酸型可达IP66/67，适应潮湿、多尘或酸洗环境。
温度范围：
工作温度：-20°C至+50°C
存储温度：-40°C至+70°C
抗干扰能力：低阻抗交流信号设计，抵御电磁干扰和接地故障。
结构设计
材料：整块不锈钢加工，内部密封罐结构，抗冲击和过载能力强。
尺寸与重量：
尺寸：170mm×105mm×32mm
重量：约8.88公斤（垂直安装型）
通信与集成
输出信号：5VDC模拟信号，兼容工业标准通信协议（如Modbus、Profibus）。
支持多轴联动控制，可与ABB控制单元（如PFEA111、PFEA113）配合使用。
1.Product Overview
ABB PFCL201C 20KN 3BSE023409R20 is a piezoelectric weighing sensor designed for vertical force measurement in industrial automation,suitable for strip tension control,metal processing,papermaking,textile and other scenarios.Its core is based on Pressductor®magneto-effect technology,which achieves high-precision force measurement through magnetic field changes,and is resistant to overload,corrosion resistance and wide temperature domain adaptability.
2.Core functions and features
High-precision measurement
Measurement range:0-20kN,high accuracy level,suitable for high-precision tension control requirements.
Use piezomagnetic technology:detect mechanical stress through magnetic field changes,and the signal is not related to physical deformation,avoiding the drift problem of traditional strain gauge sensors.
Environmental adaptability
Protection level:Standard IP65,acid resistant type can reach IP66/67,adapt to humidity,dusty or pickled environments.
Temperature range:
Operating temperature:-20°C to+50°C
Storage temperature:-40°C to+70°C
Anti-interference ability:low-impedance AC signal design to resist electromagnetic interference and grounding faults.
Structural Design
Material:whole piece of stainless steel processing,internal sealed tank structure,strong impact resistance and overload capability.
Size and Weight:
Size:170mm×105mm×32mm
Weight:Approximately 8.88 kg(vertical mounting type)
Communication and integration
Output signal:5VDC analog signal,compatible with industry standard communication protocols(such as Modbus,Profibus).
Supports multi-axis linkage control and can be used in conjunction with ABB control units(such as PFEA111,PFEA113).
