描述

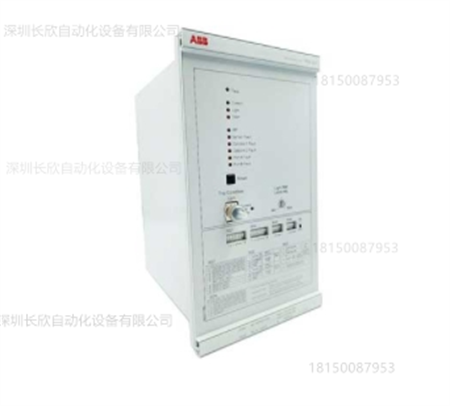

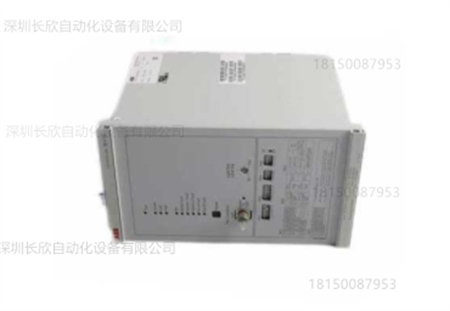

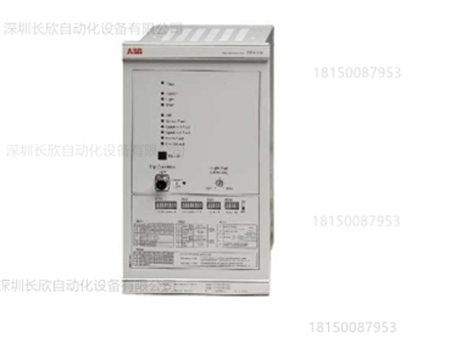

ABB REA101-AAA是一款电弧保护继电器，主要用于中低压开关柜的保护，能够快速检测并响应电弧故障，以保护操作人员和设备安全。以下是其产品详情：
工作电压：110-240V AC。
主要功能：
弧光检测：可以使用缠绕式光纤或探头式光纤检测弧光，支持环型或放射型传感器光纤进行电弧检测。
过流保护：具有三相过流保护功能，可以与弧光保护判据组合，保护动作准确快速。
输出跳闸：配有两个高速固态出口继电器，可快速作用于跳闸，还具有继电器输出用于跳闸。
断路器失灵保护：具备断路器失灵保护功能，可以直接跳闸或者发信。
自我监控：拥有自我监控单元，用于监控传感器光纤、操作电压和中央单元与扩展单元之间的布线。
通信接口：
两个RJ45端口，用于连接扩展单元。
两个光连接器，用于中央单元之间快速ON/OFF信号传输。
扩展能力：作为主单元可以单独应用，或者与REA103、REA105或REA107扩展单元配合使用。REA101配有两个输出端口，每个输出端口最多可连接五个扩展单元，多个REA101单元可通过光纤或通过REA105扩展单元连在一起。
The ABB REA101-AAA is an arc protection relay designed primarily for protecting medium and low voltage switchgear.It can quickly detect and respond to arc faults to protect personnel and equipment.Product details are as follows:
Operating voltage:110-240V AC.
Main functions:
Arc detection:Arc detection can be performed using either spooled or probe-type optical fibers,supporting both ring-type and radial sensor fibers.
Overcurrent protection:Provides three-phase overcurrent protection,which can be combined with arc protection criteria for accurate and rapid protection.
Output tripping:Equipped with two high-speed solid-state output relays for rapid tripping,and also features a relay output for tripping.
Circuit breaker failure protection:Provides circuit breaker failure protection,capable of direct tripping or signaling.
Self-monitoring:Features a self-monitoring unit that monitors the sensor fibers,operating voltage,and wiring between the central unit and expansion units.
Communication interface:
Two RJ45 ports for connecting expansion units.Two optical connectors are used for fast on/off signal transmission between central units.
Expandability:The REA101 can be used as a standalone main unit or in conjunction with REA103,REA105,or REA107 expansion units.The REA101 has two output ports,each capable of connecting up to five expansion units.Multiple REA101 units can be linked together via optical fiber or through REA105 expansion units.
