一、产品概述

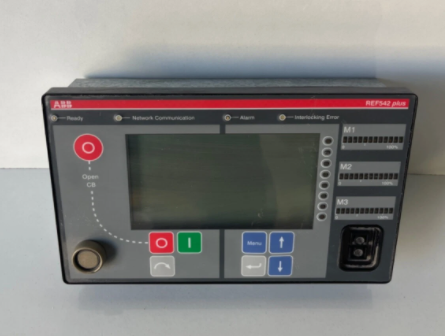

ABB REF542PLUS是一款多功能保护和开关控制装置，专为中压配电系统设计，集成保护、控制、测量、监测和自诊断功能。其模块化架构支持灵活配置，适用于变电站、工业配电、新能源并网等场景，提供高可靠性与智能化的电力系统管理解决方案。
二、核心功能与特点
1.保护功能
过流保护：定时、反时限、定向过流保护，支持相电流、零序电流检测。
电压保护：过压、欠压、电压不平衡保护，确保电网稳定性。
距离保护：适用于输电线路故障检测，支持多段式配置。
差动保护：针对变压器和电机的差动保护，防止内部短路。
热保护：电缆、变压器及电机的热过载保护，基于温度或电流积分算法。
同步检查与自诊断：实时监测硬件/软件状态，支持故障记录与报警触发。
2.控制功能
逻辑控制：支持AND、OR、NAND、NOR、XOR逻辑门，以及计时器、计数器、脉冲发生器等模块，灵活定义控制序列。
联锁与自动化：实现开关设备联锁、操作模式切换（本地/远程/混合模式），防止误操作。
开关设备控制：支持断路器分合闸、弹簧充电监控及跳闸线圈状态检测。
3.监测与诊断
电气参数监测：实时显示电流、电压、功率、频率、谐波（THD）等数据。
设备状态监控：记录开关操作次数、运行时间、最大/平均电流等历史数据。
故障分析：提供故障录波功能（最长30分钟预/后故障数据），支持事件日志查询。
4.通信与集成
协议支持：兼容IEC 61850、Modbus TCP/IP、DNP3等协议，支持双以太网口（10/100 Mbps）和RS485/RS232接口。
系统集成：可无缝接入ABB变电站自动化系统（如S800）或第三方SCADA系统，实现远程监控与数据共享。
1.Product Overview
ABB REF542PLUS is a multi-function protection and switching control device designed for medium voltage distribution systems,integrating protection,control,measurement,monitoring and self-diagnosis functions.Its modular architecture supports flexible configuration and is suitable for substations,industrial power distribution,new energy grid connection and other scenarios,providing high-reliability and intelligent power system management solutions.
2.Core functions and features
1.Protection function
Overcurrent protection:timing,reverse time limit,directional overcurrent protection,supporting phase current and zero-sequence current detection.
Voltage protection:overvoltage,undervoltage,voltage imbalance protection to ensure grid stability.
Distance protection:suitable for transmission line fault detection and supports multi-stage configuration.
Differential protection:Differential protection for transformers and motors to prevent internal short circuits.
Thermal protection:Thermal overload protection of cables,transformers and motors,based on temperature or current integration algorithm.
Synchronous inspection and self-diagnosis:Real-time monitoring of hardware/software status,supporting fault logging and alarm triggering.
2.Control function
Logic control:supports AND,OR,NAND,NOR,XOR logic gates,as well as timers,counters,pulse generators and other modules,and flexibly defines the control sequence.
Interlocking and automation:realizes switching device interlocking and switching operation modes(local/remote/hybrid modes)to prevent misoperation.
Switching equipment control:supports circuit breaker opening and closing,spring charging monitoring and tripping coil status detection.
3.Monitoring and Diagnosis
Electrical parameter monitoring:display data such as current,voltage,power,frequency,harmonic(THD)in real time.
Equipment status monitoring:record historical data such as switching operation times,running time,maximum/average current,etc.
Fault analysis:Provides fault recording function(up to 30 minutes of pre-/post fault data),and supports event log query.
4.Communication and integration
Protocol support:compatible with IEC 61850,Modbus TCP/IP,DNP3 and other protocols,and supports dual Ethernet ports(10/100 Mbps)and RS485/RS232 interfaces.
System integration:It can be seamlessly connected to the ABB substation automation system(such as S800)or third-party SCADA system to realize remote monitoring and data sharing.
