描述
ABB REF543KB127AAAA是一款功能全面的通讯测量模块，专为电力系统保护、控制与监测设计，具备高精度、灵活性和可靠性。以下是其核心功能与技术特点的综合概述：
1.核心功能
参数测量与实时监测：
支持电压、电流、功率因数、频率等电气参数的实时测量与监控，适用于中压馈线、变压器及电机等设备的状态评估。
保护与控制：
集成过流保护、速断保护、接地故障保护等多类型保护功能，并支持远程控制（如开关分合闸），保障电力系统安全稳定运行。
通信与数据交互：
支持Modbus、IEC 61850、Profibus DP等通信协议，可与SCADA、DCS等上层系统无缝对接，实现数据共享与远程管理。
扩展性与模块化设计：
通过模块化卡槽扩展模拟量输入、温度测量（PT100）等功能，适应不同场景需求。
2.技术参数
测量精度：电流测量精度±0.5%，电压测量精度±0.5%。
工作环境：宽温设计（-25°C至+70°C），防护等级IP54，符合IEC 60255等认证标准。

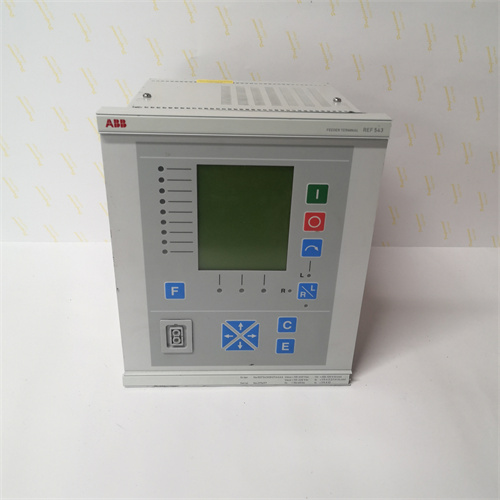

人机界面：内置5.7英寸液晶屏，支持中文菜单操作，提供实时数据可视化与故障录波功能（≥40个事件，1kHz采样率）。
3.应用领域
电力系统：中压开关柜（10–35 kV）、配电变压器保护与监控。
工业控制：中型电机保护、无功补偿电容器组控制。
智能电网：电能质量监测、变电站自动化集成。
轨道交通：铁路电力设备安全保护与状态检测。
4.技术优势
灵活网络适应性：支持中性点不接地、消弧线圈接地等复杂网络保护逻辑。
PLC功能集成：内置可编程逻辑块（AND/OR/Timer等），实现顺序控制与自动化逻辑编程。
数据存储与分析：历史数据存储与查询功能，支持异常事件溯源与趋势分析。
5.其他特性
电源兼容性：宽范围电源输入（24–230 V AC/DC），适应不同供电场景。
扩展通信模块：可选光纤以太网、DNP 3.0等协议模块，提升系统通信灵活性。
ABB REF543KB127AAAA is a comprehensive communication measurement module designed for power system protection,control and monitoring,with high accuracy,flexibility and reliability.The following is a comprehensive overview of its core functions and technical features:
1.Core functions
Parameter measurement and real-time monitoring:
Supports real-time measurement and monitoring of electrical parameters such as voltage,current,power factor,frequency,etc.,suitable for status assessment of equipment such as medium-voltage feeders,transformers and motors.
Protection and control:
Integrates multiple types of protection functions such as overcurrent protection,quick-break protection,and ground fault protection,and supports remote control(such as switch opening and closing)to ensure safe and stable operation of the power system.
Communication and data interaction:
Supports communication protocols such as Modbus,IEC 61850,Profibus DP,etc.,and can be seamlessly connected with upper-level systems such as SCADA and DCS to achieve data sharing and remote management.
Scalability and modular design:
Extend analog input,temperature measurement(PT100)and other functions through modular card slots to meet the needs of different scenarios.
2.Technical parameters
Measurement accuracy:current measurement accuracy±0.5%,voltage measurement accuracy±0.5%.
Working environment:wide temperature design(-25°C to+70°C),protection level IP54,in line with IEC 60255 and other certification standards.
Human-machine interface:built-in 5.7-inch LCD screen,support Chinese menu operation,provide real-time data visualization and fault recording function(≥40 events,1kHz sampling rate).
3.Application areas
Power system:medium-voltage switchgear(10–35 kV),distribution transformer protection and monitoring.
Industrial control:medium-sized motor protection,reactive power compensation capacitor bank control.
Smart grid:power quality monitoring,substation automation integration.
Railway transportation:railway power equipment safety protection and status detection.
4.Technical advantages
Flexible network adaptability:support complex network protection logic such as neutral point ungrounded and arc suppression coil grounded.
PLC function integration:built-in programmable logic blocks(AND/OR/Timer,etc.)to achieve sequential control and automated logic programming.
Data storage and analysis:historical data storage and query functions,support abnormal event tracing and trend analysis.
5.Other features
Power compatibility:wide range power input(24–230 V AC/DC),adaptable to different power supply scenarios.
Extended communication module:optional fiber optic Ethernet,DNP 3.0 and other protocol modules to improve system communication flexibility.
