描述

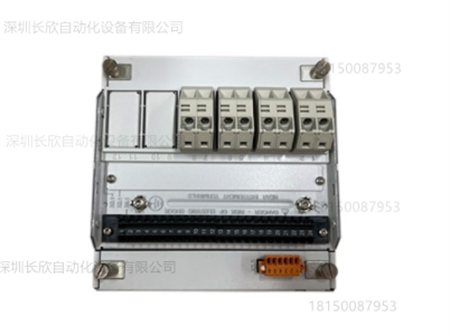

REF610C55LCNR是ABB公司生产的一款馈线保护继电器，主要用于中压配网进、出线间隔保护，也可用于工业应用领域及电网配网中的电动机、变压器和发电机的后备保护。以下是其产品详情：
保护功能
过流保护：具有定时限或反时限特性的过电流保护、定时限或瞬时特性的限时电流速断保护、定时限或瞬时特性的电流速断保护。
零序电流保护：包括定时限、反时限或瞬时特性的零序电流Ⅱ段保护，定时限或瞬时特性的零序电流Ⅰ段保护。
其他保护：电流不平衡保护、电缆馈线热过负荷保护、弧光保护、断路器失灵保护等。
技术参数
电源：辅助电源类型有REF 610xxHxxx和REF 610xxLxxx，额定电压包括AC 100/110/120/220/240V和DC 110/125/220/250V、24/48/60V，静止/运行条件下辅助电源功率小于9W/13W。
输入输出：四个精确的交流电流量输入，用户可选择额定频率50/60Hz；三个常开重载输出接点，两个常开/常闭信号输出接点，根据需要可增加至五个常开/常闭信号输出接点；两个经电气隔离的开关量输入接点，根据需要可增加至五个经电气隔离的开关量输入接点。
故障录波：录波时间5秒（800Hz采样率），可由一个或多个内部或外部信号触发，可记录四个模拟量通道和多达八个可由用户选择的开关量通道，采样率可调整。
通信接口：前面板通讯方式可选择无线或通讯电缆；背板通讯模块可选择塑料光纤、组合光纤（塑料和玻璃光纤）或经RS-485接口的双绞线任一方式与系统通讯，支持的通讯协议有SPA-bus、IEC 60870-5-103或Modbus（RTU和ASCII模式），也可选择DNP 3.0背板通讯模块与系统通讯，接口为RS-485口，使用DNP 3.0通讯协议。

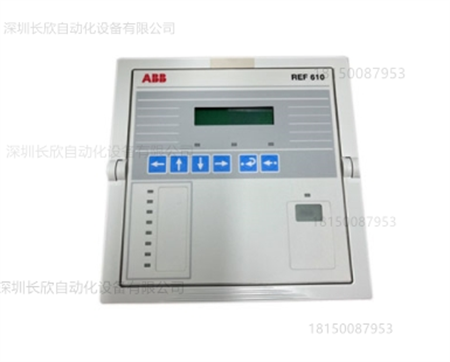

人机界面：配备文本显示的LCD和可操作按钮，有八个可自由定义LED，能以IEC或ANSI任一模式显示继电器动作信息，支持多国语言，用户可选择密码保护以用于人机界面，可显示一次值显示电气量信息和需量值。
物理特性：宽度177mm，高度177mm（4U），深度149.3mm，继电器重量约3.5kg，插件重量约1.8kg。
The REF610C55LCNR is a feeder protection relay manufactured by ABB.It is primarily used for bay protection of incoming and outgoing lines in medium-voltage distribution networks.It can also be used for backup protection of motors,transformers,and generators in industrial applications and power distribution networks.The following are product details:
Protection Functions
Overcurrent Protection:Overcurrent protection with definite or inverse time characteristics,time-limited current quick-trip protection with definite time or instantaneous characteristics,and current quick-trip protection with definite time or instantaneous characteristics.
Zero-sequence Current Protection:Zero-sequence Current Stage II protection with definite time,inverse time,or instantaneous characteristics,and Zero-sequence Current Stage I protection with definite time or instantaneous characteristics.
Other Protection:Current unbalance protection,cable feeder thermal overload protection,arc protection,circuit breaker failure protection,etc.Technical Parameters
Power Supply:Auxiliary power supply types include REF 610xxHxxx and REF 610xxLxxx,with rated voltages of AC 100/110/120/220/240V and DC 110/125/220/250V,24/48/60V.Auxiliary power consumption is less than 9W/13W in static/operating conditions.
Inputs and Outputs:Four precision AC current inputs with a user-selectable 50/60Hz rated frequency;three normally open heavy-duty output contacts;two normally open/normally closed signal output contacts,which can be increased to five normally open/normally closed signal output contacts upon request;and two electrically isolated digital input contacts,which can be increased to five electrically isolated digital input contacts upon request.Fault Recording:Recording time is 5 seconds(800Hz sampling rate),can be triggered by one or more internal or external signals,and can record four analog channels and up to eight user-selectable digital channels.The sampling rate is adjustable.
Communication Interface:Front panel communication options include wireless or cable.The backplane communication module supports plastic fiber,composite fiber(plastic and glass fiber),or twisted pair via RS-485.Supported protocols include SPA-bus,IEC 60870-5-103,or Modbus(RTU and ASCII modes).A DNP 3.0 backplane communication module is also available for communication with the system.It uses an RS-485 port and the DNP 3.0 protocol.Human-Machine Interface:Equipped with an LCD with text display and operational buttons,it features eight customizable LEDs.It displays relay operation information in either IEC or ANSI format,supports multiple languages,and offers user-selectable password protection for the HMI.It can display primary and demand values.
Physical Characteristics:Width 177mm,Height 177mm(4U),Depth 149.3mm.Relay weight approximately 3.5kg,plug-in weight approximately 1.8kg.
