描述

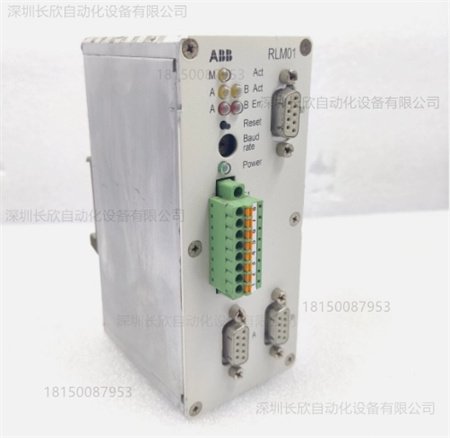

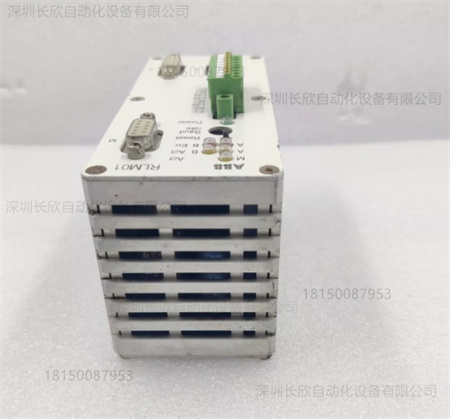

ABB RLM01 REDUNDANCY 3BDZ000398R1是一款PROFIBUS冗余链路模块，主要用于提高PROFIBUS网络的可靠性。以下是其详细信息：
功能特点
冗余转换：可将非冗余的PROFIBUS DP线路转换为两条冗余的RS485线路，反之亦然，确保在一条链路出现故障时能自动切换到备用链路，保证数据传输的连续性。

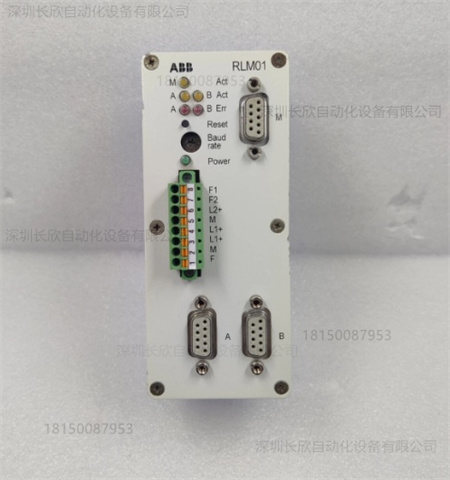

信号放大与监控：放大输入数据的信号形式和振幅，并监控三条链路（A、B和M）的活动和错误状态。通过前面板的LED和信号接触器指示错误，便于快速诊断故障。
透明配置：在PROFIBUS网络中运行时具有透明性，无需分配从站地址，简化了网络配置过程。
技术参数
通信接口：具有A、B、M三个RS485接口，传输速率为9.6Kbps至12Mbps，采用9针Sub-D连接器，电气隔离符合VDE 0110标准，测试电压为500Veff，设备保护等级为3级。
数据电报延迟：A/B到M为1位时间（μs）+0.6μs，M到A/B为4位时间（μs）+0.6μs。
电源供应：工作电压为24VDC（+20%至+33V），典型功耗为150mA（24V时），功率损耗约为3.6W，通过8针端子排连接，电线截面积为0.14-1.5mm²。
环境条件：工作温度为0-50℃，运输/存储温度为-30-85℃，相对湿度最大为75%（运行时无冷凝）。
报警触点：错误时触点打开，开关电压小于60VDC，开关电流最大为1A。
外观设计：尺寸为134x56x70mm（高x宽x深），重量为330g，防护等级为IP20，采用35mm DIN安装导轨安装。
认证：具有CE、UL和CSA认证，还获得德国劳氏船级社（Germanischer Lloyd）认证，可用于船舶和海事系统。
应用领域：广泛应用于工厂自动化、机械控制、电力电路控制、发电厂和变电站、石油和天然气生产等工业控制领域，特别是对PROFIBUS网络可靠性要求高的环境。
The ABB RLM01 REDUNDANCY 3BDZ000398R1 is a PROFIBUS redundant link module designed to improve the reliability of PROFIBUS networks.The following are its details:
Features
Redundant Conversion:Converts a non-redundant PROFIBUS DP line into two redundant RS485 lines,and vice versa.This ensures automatic failover to the backup link if one link fails,ensuring data continuity.
Signal Amplification and Monitoring:Amplifies the signal form and amplitude of input data and monitors the activity and error status of the three links(A,B,and M).Error indication via front-panel LEDs and signal contacts facilitates quick fault diagnosis.
Transparent Configuration:Operates transparently within the PROFIBUS network,eliminating the need to assign slave addresses and simplifying network configuration.Technical Parameters
Communication Interface:Three RS485 interfaces(A,B,and M)with transmission rates of 9.6 Kbps to 12 Mbps,using a 9-pin Sub-D connector.Electrical isolation complies with VDE 0110,with a test voltage of 500 Veff and device protection class 3.
Data telegram delay:A/B to M:1 bit time(μs)+0.6μs,M to A/B:4 bit time(μs)+0.6μs.
Power Supply:Operating voltage:24 VDC(+20%to+33 V),typical power consumption:150 mA(at 24 V),power loss:approximately 3.6 W.Connection via an 8-pin terminal block,wire cross-section:0.14-1.5 mm².Environmental Conditions:Operating temperature:0-50°C,transport/storage temperature:-30-85°C,maximum relative humidity:75%(non-condensing during operation).
Alarm Contact:Contacts open in the event of an error,switching voltage less than 60VDC,maximum switching current 1A.
Appearance:Dimensions:134x56x70mm(H x W x D),weight:330g,IP20 protection rating,mountable on a 35mm DIN rail.
Certifications:CE,UL,and CSA certified,and Germanischer Lloyd certified for use in marine and maritime systems.
Applications:Widely used in industrial control applications such as factory automation,machine control,power circuit control,power plants and substations,and oil and gas production,particularly in environments requiring high PROFIBUS network reliability.
