描述

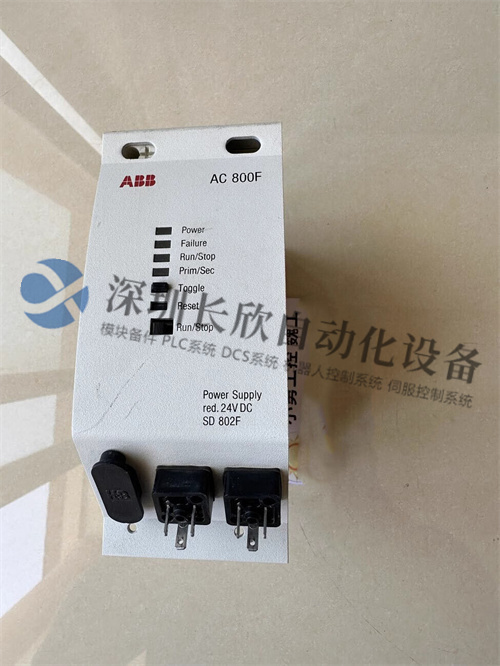

ABB SD802F是一款冗余电源模块，主要为AC800F控制器等设备提供稳定可靠的电力供应。以下是其产品详情：
基本参数

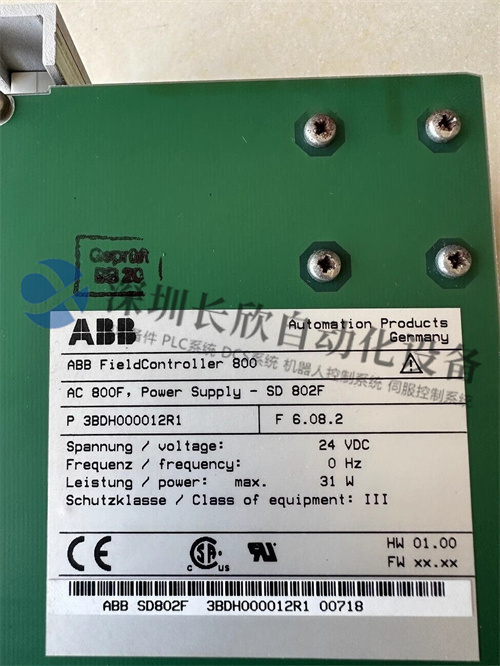

型号：SD802F，部件编号3BDH000012R1。
产地：瑞士。
输入电压：支持AC85-265V或DC24V双模式输入。
输出电压：24V DC。
工作温度范围：-25℃至+70℃。
防护等级：IP20。
功能特点
双电网冗余架构：采用双电源输入设计，可同时连接两路独立电网，当主电源电压波动或中断时，备用电源可在<50ms内自动接管，确保关键设备持续供电。
宽电压输入范围：输入电压耐受范围达±20%，可兼容全球不同地区的电网标准，同时覆盖直流供电场景，能在电网波动较大的环境中稳定输出24V DC。
热插拔与自诊断功能：支持带电插拔，模块故障时维护人员无需停机即可更换，更换时间可缩短至5分钟以内。模块内置电压/电流监测芯片，可实时采集输入电压、输出电流、温度等参数，并通过PROFINET或Modbus TCP协议上传至上位机，配合ABB的Control Builder F组态软件，可生成电源健康状态报表，提前预警潜在故障。
高防护等级与冗余校验：外壳采用IP20防护设计，内部电路通过三防涂层处理，适应化工、沿海等恶劣环境。输出端配备冗余校验电路，当检测到输出电压异常时，自动切断电源并触发报警，避免错误电压损坏下游设备；同时，模块支持实时数据掉电保持功能，确保控制程序、工艺参数等关键数据在电源中断时不会丢失。
应用场景
石油化工：为DCS控制系统的电源柜提供冗余供电，确保温度、压力、流量等关键参数的实时监测与调节，避免安全事故。
电力调度：为SCADA系统的服务器、通信网关等设备供电，其双电网冗余设计可应对电网切换、设备检修等场景，确保调度指令的实时下发与执行。
轨道交通：为联锁控制器、轨道电路设备等供电，热插拔功能支持在运营时段内更换故障模块，避免因电源维护导致的列车晚点。
冶金制造：可在高温环境下长期运行，为PLC、变频器等设备供电，其冗余校验功能可防止因电源波动导致的电机误启动，保障生产的安全性与连续性。
The ABB SD802F is a redundant power supply module,primarily designed to provide stable and reliable power for devices such as the AC800F controller.Here are its product details:
Basic Parameters
Model:SD802F,Part Number:3BDH000012R1.
Origin:Switzerland.
Input Voltage:Supports dual-mode input of AC 85-265V or DC 24V.
Output Voltage:24V DC.
Operating Temperature Range:-25°C to+70°C.
Protection Level:IP20.
Features
Dual Power Supply Redundancy:With a dual power input design,it can connect to two independent power grids simultaneously.When the main power supply fluctuates or fails,the backup power supply automatically takes over within<50ms,ensuring continuous power to critical equipment.
Wide Input Voltage Range:The input voltage tolerance is±20%,compatible with various power grid standards worldwide,including DC power supply scenarios.It can stably output 24V DC even in environments with significant power grid fluctuations.
Hot-Swappable and Self-Diagnostic Function:Supports hot-swapping;maintenance personnel can replace the module without shutting down the system,reducing downtime to less than 5 minutes.The module has built-in voltage/current monitoring chips that collect real-time data on input voltage,output current,temperature,etc.,and transmits it via PROFINET or Modbus TCP to a host computer.With ABB’s Control Builder F configuration software,it can generate power supply health reports and provide early warnings of potential failures.
High Protection Level and Redundancy Check:The enclosure has an IP20 protection rating,and the internal circuitry is coated for protection against harsh environments such as chemical plants and coastal areas.A redundancy check circuit automatically shuts down the power and triggers an alarm when an abnormal output voltage is detected,preventing damage to downstream equipment.The module also supports real-time data retention,ensuring that critical data such as control programs and process parameters are not lost during power outages.
Applications
Petrochemical Industry:Provides redundant power supply for DCS control system cabinets,ensuring real-time monitoring and control of critical parameters such as temperature,pressure,and flow,thus preventing safety accidents.Power Distribution:Provides power to SCADA system servers,communication gateways,and other equipment.Its dual power grid redundancy design ensures reliable operation during power grid outages or equipment maintenance,guaranteeing the real-time transmission and execution of control commands.
Rail Transportation:Provides power to interlocking controllers,track circuits,and other equipment.Hot-swapping capability allows for replacement of faulty modules during operation,preventing train delays due to power supply issues.
Metallurgy and Manufacturing:Designed for long-term operation in high-temperature environments,powering PLCs,frequency inverters,and other equipment.Its redundancy and fault-tolerance features prevent motor misstarts due to power fluctuations,ensuring safe and continuous production.
