描述

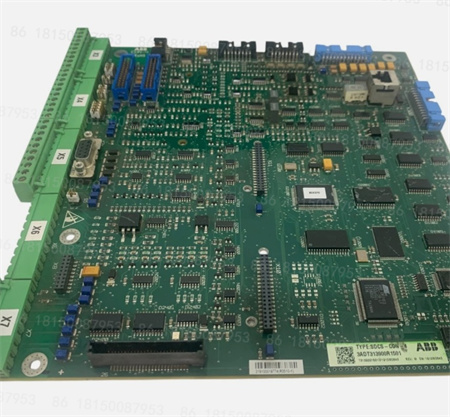

ABB SDCS-CON-4是ABB传动控制系统中一款高性能控制模块。以下是其产品详情：
基本信息
产品型号：SDCS-CON-4
制造商：ABB
产品类型：传动系统控制模块
供电电压：24V DC±10%
额定功耗：最大15W
通信接口：Profibus DP、Modbus RTU、Ethernet/IP
工作温度：-10℃至+55℃
存储温度：-40℃至+70℃
物理尺寸：120mm×80mm×45mm（长×宽×高）
防护等级：IP20
重量：约250g
认证标准：CE、UL、cUL
功能特点
控制精度高：内置32位高速处理器，可实现微秒级指令响应，确保电机转速、扭矩等参数的精准调节，控制误差低于0.1%。
兼容性强：能够无缝适配ABB ACS800、ACS880等主流传动系列，同时支持第三方品牌功率单元。
通信能力出色：集成多种工业标准协议，无需额外转换模块即可与不同厂商的自动化系统对接。
自诊断功能完善：可实时监测温度、电压、通信状态等关键参数，出现异常时能快速定位故障点并触发保护机制。
稳定性高：采用宽温耐受与抗电磁干扰（EMC）结构，平均无故障时间（MTBF）超过100,000小时。
应用领域
冶金行业：精准控制轧机、卷取机等设备的电机转速，确保板材厚度均匀。
化工领域：协调泵类、搅拌器的运行，根据工艺需求实时调节流量与搅拌强度。
市政基础设施：用于污水处理厂的曝气风机、污泥泵控制，实现能耗与处理效率的平衡。
食品饮料生产线：配合传送带、灌装设备的传动系统，保证生产节奏的一致性。
智能制造场景：如汽车装配线、物流分拣系统，可通过网络实现多模块同步控制。
The ABB SDCS-CON-4 is a high-performance control module for ABB drive systems.Here are its product details:
Basic Information
Product Model:SDCS-CON-4
Manufacturer:ABB
Product Type:Drive System Control Module
Supply Voltage:24V DC±10%
Rated Power Consumption:Max 15W
Communication Interface:Profibus DP,Modbus RTU,Ethernet/IP
Operating Temperature:-10°C to+55°C
Storage Temperature:-40°C to+70°C
Dimensions:120mm x 80mm x 45mm(L x W x H)
Protection Level:IP20
Weight:Approx.250g
Certifications:CE,UL,cUL
Features
High Control Precision:Built-in 32-bit high-speed processor enables microsecond-level command response,ensuring precise control of motor speed,torque,and other parameters with an accuracy of less than 0.1%.
Strong Compatibility:Seamlessly integrates with ABB ACS800,ACS880,and other mainstream drive series,and also supports third-party power units.
Excellent Communication Capabilities:Integrates multiple industrial standard protocols,allowing seamless integration with automation systems from different manufacturers without additional conversion modules.
Comprehensive Self-Diagnosis:Real-time monitoring of key parameters such as temperature,voltage,and communication status;quickly identifies and triggers protection mechanisms upon detecting abnormalities.
High Reliability:Designed with wide temperature tolerance and electromagnetic compatibility(EMC)features,achieving an MTBF of over 100,000 hours.
Applications
Metallurgy Industry:Precisely controls motor speed for rolling mills,winders,etc.,ensuring uniform sheet thickness.
Chemical Industry:Coordinates pumps and agitators,dynamically adjusting flow rate and agitation intensity according to process requirements.
Municipal Infrastructure:Used for aeration blowers and sludge pumps in wastewater treatment plants,balancing energy consumption and treatment efficiency.
Food and Beverage Production Lines:Works with conveyor belts and filling equipment to ensure consistent production rhythm.
Intelligent Manufacturing:For applications such as automotive assembly lines and logistics sorting systems,enabling synchronized control of multiple modules via network.
