描述

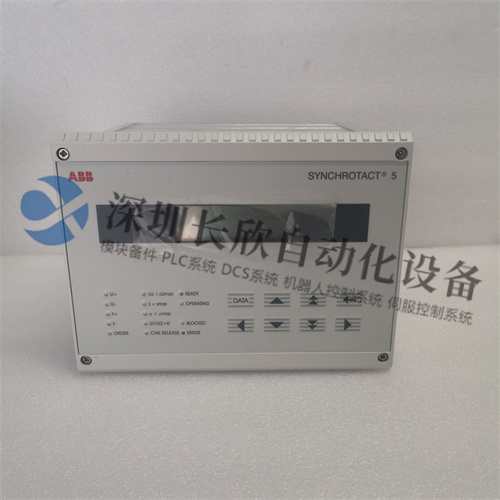

ABB SYNCHROTACT5 3BHB006713R0217是一款先进的数字同步设备，隶属于ABB的SYNCHROTACT同步设备系列。以下是其产品详情：
基本信息
制造商：ABB
产品类型：数字同步设备/发电机和线路自动并联装置
工作频率：50Hz、60Hz或16.7Hz
通道配置：通常为双通道系统
通信协议：支持IEC 61850、Modbus、Profibus、LON等
可同步断路器数量：单个继电器可同步多达7个不同要求的断路器
功率损耗：典型值24W/35VA（对于双通道冗余系统）
重量：约3.3kg
功能特点
高安全性与可靠性：采用双通道概念，包含两个不同制造商的微处理器系统，硬件和软件结构各异，即使一个通道故障，另一通道也能无缝接管，防止误合闸和异步合闸。
高精度自动同步：能精确测量并匹配发电机或线路的电压、频率和相位角，通过先进算法预先计算断路器合闸的超前角度，实现无扰动并联。
灵活多样的应用场景：支持发电机与电网自动同步、同步线路之间并联以及对自动或手动并联过程进行监测，还具备“死母线/死线”功能，可在一端无电压情况下实现并联。
多功能与可配置性：可存储多达7套不同的参数设置，通过可配置的数字输入和输出进行选择，适应不同并联点和并联条件。
简化调试与维护：配套SynView PC软件工具，提供友好界面，可快速进行设备配置和参数设置，还能根据相关设备特性推荐设置值，同时具备丰富的诊断功能和事件记录。
应用领域
发电厂：用于火力、水力、核能及燃气轮机联合循环电厂中发电机组与电网的自动同步并联，保护发电机和变压器等设备。
电网变电站：在大型输电和配电变电站中，用于同步并联不同母线或输电线路，优化电网负荷分配和电力传输路径。
工业自备电厂：为钢铁、化工、造纸等工业企业的自备发电机组提供可靠同步解决方案，保障生产连续性和电力供应稳定性。
新能源并网：为风力发电、太阳能发电等分布式电源提供精确的并网同步控制，确保间歇性电源安全平稳并入电网。
其他领域：还可应用于泵站和水处理设施、铁路和交通系统等，用于电机或发电机与电网的同步并联。
The ABB SYNCHROTACT5 3BHB006713R0217 is an advanced digital synchronizing device,part of ABB’s SYNCHROTACT series.Here are its product details:
Basic Information
Manufacturer:ABB
Product Type:Digital Synchronizing Device/Automatic Generator and Line Parallelization Unit
Operating Frequency:50Hz,60Hz,or 16.7Hz
Channel Configuration:Typically a dual-channel system
Communication Protocols:Supports IEC 61850,Modbus,Profibus,LON,etc.
Number of Synchronizable Circuit Breakers:A single relay can synchronize up to 7 circuit breakers with different requirements
Power Consumption:Typical 24W/35VA(for dual-channel redundant system)
Weight:Approx.3.3kg
Features
High Safety and Reliability:Utilizes a dual-channel concept with two microprocessor systems from different manufacturers,featuring independent hardware and software structures.Even if one channel fails,the other seamlessly takes over,preventing mis-closing and asynchronous closing.
High-Precision Automatic Synchronization:Accurately measures and matches the voltage,frequency,and phase angle of the generator or line.Pre-calculates the lead angle for circuit breaker closing using advanced algorithms,ensuring smooth parallel operation.
Flexible and Versatile Applications:Supports automatic synchronization of generators with the grid,parallel operation between synchronous lines,and monitoring of automatic or manual parallelization processes.It also features a”dead busbar/dead line”function for parallelization when one end has no voltage.
Multifunctional and Configurable:Can store up to 7 sets of different parameter settings,selectable via configurable digital inputs and outputs,adapting to different parallelization points and conditions.
Simplified Commissioning and Maintenance:Comes with SynView PC software,providing a user-friendly interface for quick device configuration and parameter setting.It also recommends settings based on device characteristics and offers comprehensive diagnostic functions and event logging.
Applications
Power Plants:Used for automatic synchronization and parallel operation of generators with the grid in thermal,hydroelectric,nuclear,and combined-cycle gas turbine power plants,protecting generators,transformers,and other equipment.Power Grid Substations:Used in large-scale transmission and distribution substations to synchronize and interconnect different busbars or transmission lines,optimizing power grid load distribution and power transmission paths.
Industrial Power Plants:Provide reliable synchronization solutions for self-generated power plants in industries such as steel,chemicals,and paper manufacturing,ensuring continuous production and stable power supply.
Renewable Energy Integration:Offer precise grid-tie synchronization control for distributed energy sources such as wind power and solar power,ensuring the safe and stable integration of intermittent power sources into the grid.
Other Applications:Also applicable to pump stations and water treatment facilities,railway and transportation systems,etc.,for synchronizing and interconnecting motors or generators with the power grid.
