描述

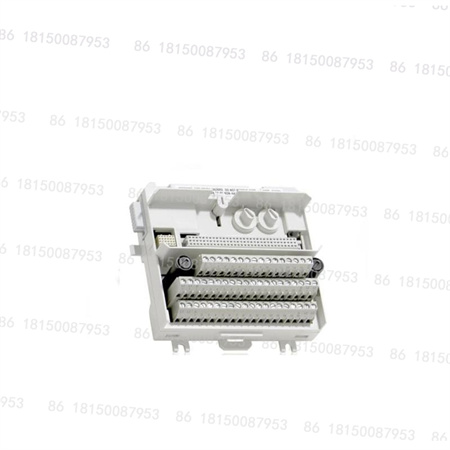

ABB TU830V1 3BSE013234R1是用于ABB S800 I/O系统的扩展型模块终端单元（MTU）。以下是其产品详情：
基本信息
品牌：ABB
型号：TU830V1
订货号：3BSE013234R1
通道数：16
额定电压：50V
尺寸：长64mm，高120.5mm，宽110mm
重量：0.2kg
安装方式：DIN导轨安装
技术参数
最大电流：每I/O通道最大电流为2A，过程连接最大电流为5A。
线径要求：实心线0.2-4mm²，绞线0.2-2.5mm²，24-12awg。
介电测试电压：500V AC。
兼容模块：可与AI810、AI815、AO810、DO810、DI810、DP820等多种I/O模块配合使用。
功能特点
信号连接与分配：作为无源单元，可将现场接线连接到I/O模块，还包含ModuleBus的一部分，能将ModuleBus分发到I/O模块端，然后分发到下一个MTU，同时通过将输出位置信号转移到下一个MTU来生成I/O模块的正确地址。
安装与维护方便：采用DIN导轨安装方式，便于安装和拆卸。其机械键控设计可防止插入错误的I/O模块，且过程电压可连接到两个单独隔离的组，每组都有一个6.3A的保险丝，提高了系统的安全性和可靠性，也便于维护。
The ABB TU830V1 3BSE013234R1 is an expansion module terminal unit(MTU)for the ABB S800 I/O system.Product details are as follows:
Basic Information
Brand:ABB
Model:TU830V1
Order Number:3BSE013234R1
Number of Channels:16
Rated Voltage:50V
Dimensions:Length 64mm,Height 120.5mm,Width 110mm
Weight:0.2kg
Mounting Method:DIN Rail
Technical Parameters
Maximum Current:2A per I/O channel,5A for process connections.
Wire Size Requirements:Solid wire 0.2-4mm²,stranded wire 0.2-2.5mm²,24-12awg.
Dielectric Test Voltage:500V AC.Compatible Modules:Compatible with various I/O modules,including the AI810,AI815,AO810,DO810,DI810,and DP820.
Features
Signal Connection and Distribution:This passive unit connects field wiring to the I/O module and also includes a portion of the ModuleBus,distributing the ModuleBus to the I/O module and then to the next MTU.It also generates the correct address for the I/O module by transferring the output position signal to the next MTU.
Easy Installation and Maintenance:DIN rail mounting facilitates installation and removal.Its mechanical keying prevents insertion of the wrong I/O module.The process voltage can be connected to two separately isolated groups,each with a 6.3A fuse,enhancing system safety and reliability while facilitating maintenance.
