描述

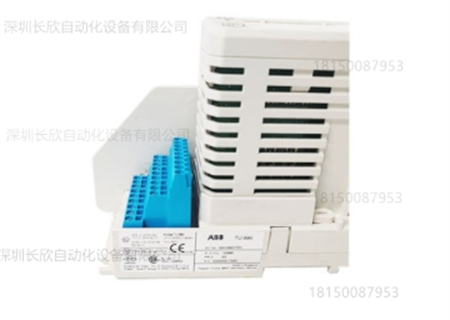

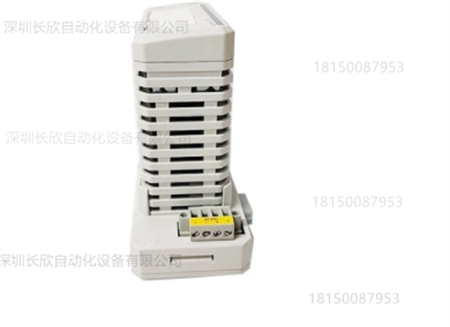

ABB TU890 3BSC690075R1是一款用于工业自动化的接线端子模块，属于ABB S800 I/O系列。以下是其产品详情：
基本信息
品牌：ABB
型号：TU890 3BSC690075R1
输入通道：24路（模拟量/数字量混合）
信号类型：0-10V DC、4-20mA、24V DC数字量
工作电压：24V DC（由PLC本体供电）
防护等级：IP67
认证标准：IEC 61131-2、UL 508A、CE等
技术特点
高密度连接：支持24路模拟量/数字量混合输入，通道间距仅6.2mm，在3U机架空间内可集成传统设备2倍的I/O点数。其专利弹簧端子技术使单通道接线时间缩短至3秒，较螺钉端子效率提升70%。
环境适应性强：通过IP67防护等级认证，可在-40℃至85℃极端温度、95%湿度及强振动（5G）环境下稳定运行。
智能诊断：内置自检功能可实时监测通道状态，通过LED指示灯与HMI界面同步报警，能提前预警故障，避免安全事故。
应用领域
智能制造：可连接工业机器人，实现高精度同步控制，提高焊接良品率。
能源管理：能集成大量监测点，提高数据采集频率，缩短故障定位时间。
过程控制：与DCS系统联动，可精确控制工艺参数，如将发酵罐温度波动范围控制在±0.1℃以内。
The ABB TU890 3BSC690075R1 is a terminal block module for industrial automation,belonging to the ABB S800 I/O series.Below are its product details:
Basic Information
Brand:ABB
Model:TU890 3BSC690075R1
Input Channels:24(Analog/Digital Mixed)
Signal Type:0-10V DC,4-20mA,24V DC Digital
Operating Voltage:24V DC(Powered by PLC)
Protection Rating:IP67
Certification Standards:IEC 61131-2,UL 508A,CE,etc.
Technical Features
High-Density Connection:Supports 24 channels of analog/digital mixed input with a channel pitch of only 6.2mm,integrating twice the I/O points of traditional devices within a 3U rack space.Its patented spring terminal technology reduces single-channel wiring time to 3 seconds,improving efficiency by 70%compared to screw terminals.
Strong environmental adaptability:IP67 protection certified,it can operate stably in extreme temperatures ranging from-40℃to 85℃,95%humidity,and strong vibration(5G)environments.
Intelligent diagnostics:Built-in self-test function monitors channel status in real time,providing early warning of faults via LED indicators and synchronized alarms with the HMI interface,preventing safety accidents.
Application areas:
Smart manufacturing:Can connect to industrial robots for high-precision synchronous control,improving welding yield.
Energy management:Can integrate numerous monitoring points,increasing data acquisition frequency and shortening fault location time.
Process control:Linked with DCS systems,it can precisely control process parameters,such as controlling fermenter temperature fluctuations within±0.1℃.
