描述

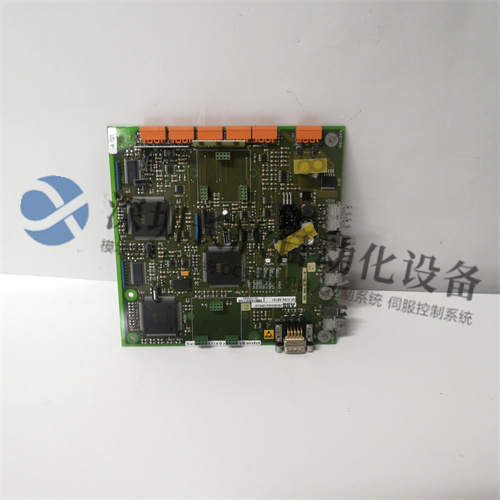

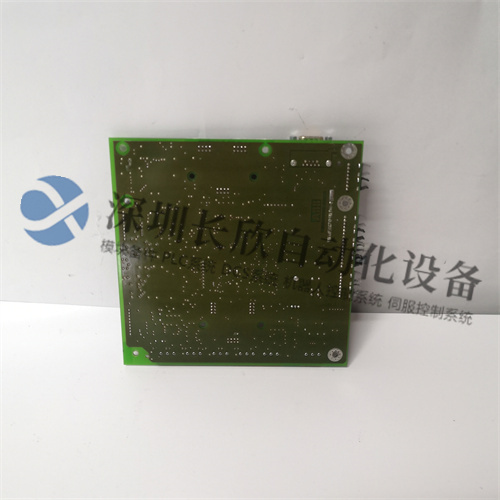

ABB UFC762AE101 3BHE006412R0101是一款高性能的工业控制器模块，以下是其产品详情：
基本信息
型号：UFC762AE101
订货号：3BHE006412R0101
输入电压：24V DC（部分型号支持AC 100-240V，50/60Hz）
输出信号：0-10V DC（模拟量输出），支持数字量（ON/OFF）和脉冲信号
控制精度：±0.1%FS（部分场景为±0.2%F.S±1个字）
功耗：≤2W（典型值）
尺寸：144mm×144mm×102mm（部分型号为100mm×112mm×45mm）
重量：约0.62磅至1.5kg
安装方式：DIN 35导轨安装或壁挂式安装
防护等级：IP20（部分型号支持更高防护）
工作温度：-20℃至+60℃（部分型号为-10℃至+55℃）
工作湿度：5%至95%RH（非凝结）
功能特点
伺服电机控制：支持速度、位置、扭矩三闭环控制，可实现高精度运动控制，部分模块还支持同时控制多个伺服电机，适应复杂运动轨迹。
高性能处理：采用32位处理器，支持高速数据运算，确保实时控制响应，并通过编码器接口连接伺服电机编码器，提供位置反馈和闭环控制。
通信与集成能力：兼容Modbus、Profibus、以太网等多种协议，可与PLC、HMI、传感器等设备无缝对接，作为ABB控制系统核心模块，可与其他I/O卡件、伺服驱动模块配套使用。
自诊断与保护功能：实时监测过载、过热、通信中断等异常状态，生成报警信号并触发保护机制，部分型号支持主从站冗余配置，提升系统可用性。
用户友好配置：通过配置软件可设定电机参数、选择控制模式，简化调试流程，还支持远程监控和参数调整，降低现场维护成本。
应用领域
制造业：可用于机器人控制、包装机械等，精确控制机械臂运动轨迹，同步控制多个伺服电机，实现高速、精准的包装流程。
能源行业：适用于风力/水力发电系统，调节发电机转速和扭矩，优化能源转换效率，也可用于输配电监控，实时监测电网参数。
基础设施：可用于水处理系统，控制泵阀开度，实现流量和压力的精准调节，以及轨道交通信号控制，协调列车运行间隔。
重工业：如冶金生产线，控制轧机、连铸机等设备，保障产品质量稳定，也可用于化工过程控制，调节反应釜温度、压力。
其他领域：还可应用于医疗设备、环境监测、智能仓储系统等领域。
The ABB UFC762AE101 3BHE006412R0101 is a high-performance industrial controller module.Here are its product details:
Basic Information
Model:UFC762AE101
Part Number:3BHE006412R0101
Input Voltage:24V DC(Some models support AC 100-240V,50/60Hz)
Output Signal:0-10V DC(Analog output),supports digital(ON/OFF)and pulse signals
Control Accuracy:±0.1%FS(Some applications:±0.2%F.S±1 bit)
Power Consumption:≤2W(Typical)
Dimensions:144mm×144mm×102mm(Some models:100mm×112mm×45mm)
Weight:Approx.0.62 lbs to 1.5 kg
Mounting Method:DIN 35 rail or wall mount
Protection Level:IP20(Some models support higher protection levels)
Operating Temperature:-20°C to+60°C(Some models:-10°C to+55°C)
Operating Humidity:5%to 95%RH(Non-condensing)
Features
Servo Motor Control:Supports closed-loop control of speed,position,and torque for high-precision motion control.Some modules support simultaneous control of multiple servo motors for complex motion trajectories.
High-Performance Processing:Uses a 32-bit processor for high-speed data processing,ensuring real-time control response.Connects to servo motor encoders via an encoder interface for position feedback and closed-loop control.
Communication and Integration Capabilities:Compatible with various protocols such as Modbus,Profibus,and Ethernet.Seamlessly integrates with PLCs,HMIs,sensors,etc.As a core module of the ABB control system,it can be used with other I/O cards and servo drive modules.
Self-Diagnosis and Protection Functions:Real-time monitoring of overload,overheating,communication interruptions,etc.,generating alarm signals and triggering protection mechanisms.Some models support master-slave redundancy for enhanced system availability.User-friendly configuration:The configuration software allows users to set motor parameters and select control modes,simplifying the commissioning process.It also supports remote monitoring and parameter adjustment,reducing on-site maintenance costs.
Application Areas
Manufacturing:Suitable for robotic control and packaging machinery,enabling precise control of robotic arm movements and synchronized control of multiple servo motors for high-speed,accurate packaging processes.
Energy Industry:Applicable to wind and hydropower systems,regulating generator speed and torque to optimize energy conversion efficiency.It can also be used for power transmission and distribution monitoring,providing real-time monitoring of power grid parameters.
Infrastructure:Suitable for water treatment systems,controlling pump and valve operation for precise flow and pressure regulation,and for railway signal control,coordinating train operation intervals.
Heavy Industry:For metallurgical production lines,controlling rolling mills,continuous casting machines,etc.,to ensure stable product quality.It can also be used for chemical process control,regulating reactor temperature and pressure.
Other Fields:Also applicable to medical equipment,environmental monitoring,and intelligent warehousing systems.
