描述
产品概述

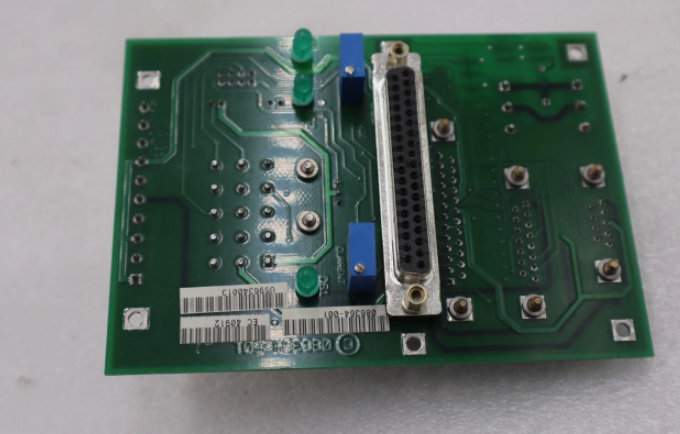

ABB XDD501A101是一款多功能工业自动化控制模块，属于控制系统系列，可能根据配置不同表现为可编程逻辑控制器（PLC）、总线终端模块或驱动单元板，适用于工业自动化、机器人、能源管理、电气控制等场景。
核心功能与技术特点
1.控制模块功能
编程灵活性：支持用户自定义控制逻辑，适配不同生产流程需求。
多通道输入输出：配备数字输入/输出及模拟输入，实现与外部设备的交互。
实时性能：毫秒级响应速度，满足工业控制的实时性要求。
故障检测与报警：具备异常状态监测功能，支持快速定位问题。
2.总线终端模块功能
总线协议支持：兼容PROFIBUS、Modbus、Ethernet/IP等工业总线协议。
数据交换：作为总线终端设备，负责数据采集与控制信号传输，支持网络集成。
接口类型：提供电气或光纤接口，适应不同总线特性。
3.驱动单元板功能
动力与控制：为驱动系统提供稳定电源和精确控制信号，确保设备正常运行。
高性能设计：采用先进电路工艺，支持复杂环境下的稳定输出。
紧凑结构：体积小巧，便于集成，同时具备良好散热性能。
4.测量模块功能（特定配置）
浊度监测：用于测量原水、污水及高悬浮物水的浊度（0～9999 NTU），适用于水处理行业。
光学隔离：传感器不直接接触液体，减少维护需求。
技术参数
参数类别规格
电源要求220 V AC（控制器模块）或24 V DC（驱动单元板）
工作温度-20℃～60℃（控制器模块），-30℃～70℃（驱动单元板）
防护等级IP20（控制室安装）
通信接口支持工业总线协议（如PROFIBUS、Modbus）
响应时间毫秒级（PLC模块），1 ms（驱动单元板）
Product Overview
ABB XDD501A101 is a multi-functional industrial automation control module,belonging to the control system series,which may be represented by programmable logic controller(PLC),bus terminal module or driver unit board depending on the configuration.It is suitable for industrial automation,robotics,energy management,electrical control and other scenarios.
Core functions and technical features
1.Control module function
Programming flexibility:supports user-defined control logic and adapts to different production process requirements.
Multi-channel input and output:equipped with digital input/output and analog input to achieve interaction with external devices.
Real-time performance:millisecond-level response speed,meeting the real-time requirements of industrial control.
Fault detection and alarm:It has abnormal status monitoring function and supports rapid positioning of problems.
2.Bus terminal module function
Bus protocol support:compatible with industrial bus protocols such as PROFIBUS,Modbus,Ethernet/IP.
Data exchange:As a bus terminal device,it is responsible for data acquisition and control signal transmission,and supports network integration.
Interface type:Provides electrical or optical fiber interfaces to adapt to different bus characteristics.
3.Drive unit board function
Power and control:Provides stable power supply and precise control signals for the drive system to ensure the normal operation of the equipment.
High-performance design:Adopt advanced circuit technology to support stable output in complex environments.
Compact structure:small size,easy to integrate,and has good heat dissipation performance.
4.Measurement module function(specific configuration)
Turbidity monitoring:used to measure the turbidity of raw water,sewage and high-suspended water(0~9999 NTU),suitable for the water treatment industry.
Optical isolation:The sensor does not directly contact liquid,reducing maintenance needs.
Technical parameters
Parameter Category Specifications
Power requirements 220 V AC(controller module)or 24 V DC(drive unit board)
Working temperature-20℃~60℃(controller module),-30℃~70℃(drive unit board)
Protection level IP20(Control room installation)
Communication interface supports industrial bus protocols(such as PROFIBUS,Modbus)
Response time milliseconds(PLC module),1 ms(drive unit board)
