描述

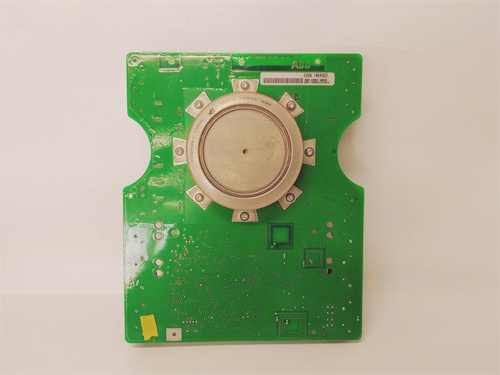

ABB 3BHB013088R0001是一款高性能工业自动化控制模块,主要应用于电力电子、高压变频器及分布式控制系统(DCS),其核心功能和技术特点如下:
一、模块类型与核心功能
IGCT(集成门极换流晶闸管)模块
该模块基于IGCT技术,属于高压电力电子器件,具有高耐压(可达4kV以上)、大电流(数千安培)及快速开关特性,适用于高压变频器、风电变流器、电力传动等场景。
DCS控制处理器模块
集成控制处理器功能,支持现场总线通信(如Profibus、Modbus)及以太网协议,可实现复杂逻辑运算与数据交互,广泛应用于工业自动化系统的数据采集、监控及控制。
二、技术参数
电气特性
-工作电压:220V DC/AC
-输出频率:26–30Hz
-处理速度:10–15Hz
-程序/数据容量:3MB/2MB
性能指标
-开关频率:高达数百kHz
-导通损耗:低于传统IGBT,适用于高效率变频器设计
-温度范围:-25°C至70°C(工业级宽温)
三、应用领域
电力系统
-高压变频器调节板卡,用于电机驱动、电力传输及配电系统
-风电变流器核心模块,支持690V及以上电压等级
工业自动化
-DCS系统控制处理器,实现流程工业的实时监控与故障诊断
-机器人控制系统(如ABB机器人DSQC系列)的接口模块
能源转换
-智能电动执行器(如ABB Ontrac系列)的力矩保护与位置控制
-建筑自动化中的智能照明与安防系统控制
四、技术优势
高可靠性
-冗余设计(TMR架构)支持故障自隔离,MTBF超过10万小时
-防护等级IP55,抗电磁干扰能力突出
灵活性与扩展性
-支持定制化参数配置(如IGCT导通电压、开关时间)
-可通过Modbus或Profinet协议接入不同品牌控制器
节能特性
-低导通损耗降低变频器发热,提升系统效率
-智能过流保护减少能源浪费
ABB 3BHB013088R0001 is a high-performance industrial automation control module,mainly used in power electronics,high-voltage inverters and distributed control systems(DCS).Its core functions and technical features are as follows:
I.Module type and core functions
IGCT(Integrated Gate Commutation Thyristor)Module
This module is based on IGCT technology and is a high-voltage power electronic device with high withstand voltage(up to 4kV or more),large current(several thousand amperes)and fast switching characteristics.It is suitable for high-voltage inverters,wind power converters,power transmission and other scenarios.
DCS control processor module
Integrated control processor function,supports fieldbus communication(such as Profibus,Modbus)and Ethernet protocol,can realize complex logic operations and data interaction,and is widely used in data acquisition,monitoring and control of industrial automation systems.
2.Technical parameters
Electrical characteristics
-Operating voltage:220V DC/AC
-Output frequency:26–30Hz
-Processing speed:10–15Hz
-Program/data capacity:3MB/2MB
Performance indicators
-Switching frequency:up to hundreds of kHz
-Conduction loss:lower than traditional IGBT,suitable for high-efficiency inverter design
-Temperature range:-25°C to 70°C(industrial wide temperature)
3.Application areas
Power system
-High-voltage inverter regulation board for motor drive,power transmission and distribution system
-Wind power converter core module,supporting voltage levels of 690V and above
Industrial automation
-DCS system control processor to achieve real-time monitoring and fault diagnosis of process industry
-Interface module for robot control system(such as ABB robot DSQC series)
Energy conversion
-Torque protection and position control of intelligent electric actuators(such as ABB Ontrac series)
-Intelligent lighting and security system control in building automation
IV.Technical advantages
High reliability
-Redundant design(TMR architecture)supports fault self-isolation,MTBF exceeds 100,000 hours
-Protection level IP55,outstanding anti-electromagnetic interference capability
Flexibility and scalability
-Support customized parameter configuration(such as IGCT conduction voltage,switching time)
-Can access controllers of different brands through Modbus or Profinet protocol
Energy-saving characteristics
-Low conduction loss reduces inverter heating and improves system efficiency
-Intelligent overcurrent protection reduces energy waste
