描述

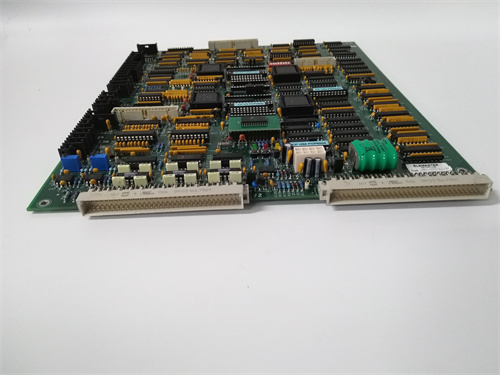

ABB ARC093AV1是一款高性能控制器模块，专为工业自动化系统设计，具备高精度信号处理、多协议通信及灵活扩展能力。以下是其核心功能与技术参数的综合概述：
一、产品概述
型号：ARC093AV1
品牌：ABB
系列：控制系统
功能定位：用于工业过程中的信号监测与电流控制，支持与其他ABB模块协同工作。
二、核心功能
多协议通信
-支持多种工业通信协议（如Modbus、Profinet等），可与上位机、PLC或其他设备高效数据交互。
-提供以太网、RS485等接口，满足不同场景的连接需求。
高精度信号处理
-具备多通道输入/输出功能，支持模拟量与数字量信号的精确采集与控制。
-适用于电流、电压、温度等关键参数的监测与调节。
可编程性
-支持基于.NET框架的开放式编程，可通过Panel Builder 800工具实现灵活配置，满足复杂控制逻辑需求。
三、技术参数
环境适应性
-工作温度：-30℃至+70℃
-湿度：95%（非凝结）
-防护等级：IP40（模块本体）
电气特性
-工作电压：220V AC（兼容宽电压范围）
-处理速度：15Hz（典型值）
-程序存储：2MB（用户程序）
扩展性
-支持本地通信扩展及远程访问，可通过底板或总线接口连接其他模块。
四、应用领域
工业控制
-电力系统保护、电机控制、工艺参数监测等。
智能制造
-机器人控制系统、智能产线设备协同与故障诊断。
能源与环保
-石油天然气管道监控、污水处理厂水质分析等。
机械加工
-机床自动化、压力机控制等高精度场景。
smart
smart
ABB ARC093AV1 is a high-performance controller module designed for industrial automation systems.It has high-precision signal processing,multi-protocol communication and flexible expansion capabilities.The following is a comprehensive overview of its core functions and technical parameters:
I.Product Overview
Model:ARC093AV1
Brand:ABB
Series:Control System
Functional Positioning:Used for signal monitoring and current control in industrial processes,and supports collaboration with other ABB modules.
II.Core Functions
Multi-protocol Communication
-Supports a variety of industrial communication protocols(such as Modbus,Profinet,etc.),and can interact with host computers,PLCs or other devices efficiently.
-Provides Ethernet,RS485 and other interfaces to meet the connection requirements of different scenarios.
High-precision signal processing
-With multi-channel input/output functions,it supports accurate acquisition and control of analog and digital signals.
-Suitable for monitoring and adjustment of key parameters such as current,voltage,and temperature.
Programmability
-Supports open programming based on the.NET framework,and can be flexibly configured through the Panel Builder 800 tool to meet complex control logic requirements.
III.Technical parameters
Environmental adaptability
-Operating temperature:-30℃to+70℃
-Humidity:95%(non-condensing)
-Protection level:IP40(module body)
Electrical characteristics
-Operating voltage:220V AC(compatible with a wide voltage range)
-Processing speed:15Hz(typical value)
-Program storage:2MB(user program)
Expandability
-Supports local communication expansion and remote access,and can connect other modules through the baseboard or bus interface.
IV.Application areas
Industrial control
-Power system protection,motor control,process parameter monitoring,etc.
Intelligent manufacturing
-Robot control system,intelligent production line equipment collaboration and fault diagnosis.
Energy and environmental protection
-Oil and gas pipeline monitoring,sewage treatment plant water quality analysis,etc.
Mechanical processing
-High-precision scenarios such as machine tool automation and press control.
