描述

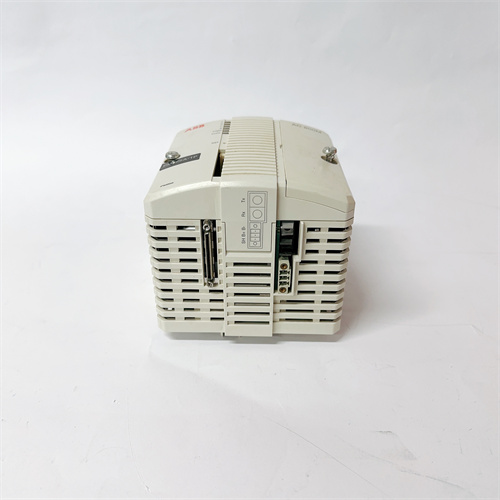

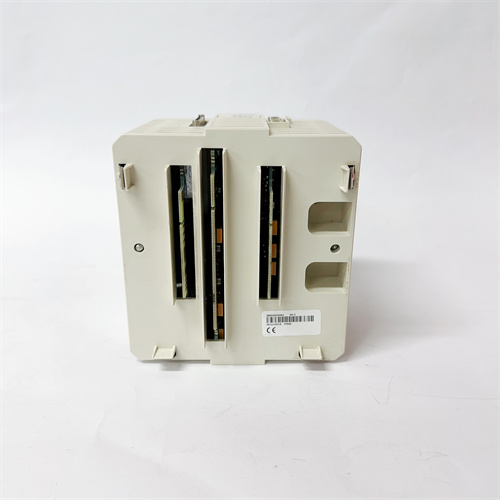

ABB PM891K01 3BSE053241R1是一款高性能分布式控制系统的核心处理器单元，专为工业自动化应用设计，尤其适用于石油、天然气、发电、化学加工等高可靠性需求场景。以下是其关键特性和技术细节的综合分析：
一、核心参数与架构
型号：PM891K01 3BSE053241R1
品牌：ABB
系列：System 800xA控制系统
结构形式：单片单元（集成电源、CPU板、终端）
安装方式：控制室安装
尺寸：280 mm（长）×105 mm（高）×245 mm（宽）
重量：2.1 kg
二、技术特点
高性能处理能力
-处理器：MPC8270多核处理器，时钟频率450 MHz
-内存：256 MB RAM（可用应用内存208.985 MB）
-处理速度：0.043毫秒/1000次布尔运算
-兼容性：仅支持ABB System 800xA 6.0.2及更高版本系统。
冗余设计
-CPU冗余：支持双机热备，主备切换时间小于1毫秒
-通信冗余：双冗余以太网端口（RJ45）和冗余通信接口
-总线冗余：通过CEX总线互连单元（BC810）分段提升可用性
-I/O冗余：支持S800 I/O单元集群的冗余配置。
通信与扩展能力
-接口：2个以太网端口（CN1/CN2）、1个隔离串行端口（COM4）
-总线扩展：CEX总线支持连接7个S800 I/O单元集群（每个集群最多12个模块）
-协议支持：以太网、Modbus、Profibus等工业协议。
安全与防护
-防护等级：IP20（无需额外防护外壳）
-EMC认证：符合工业电磁兼容标准
-安全功能：实时时钟、LED指示灯、安全数字接口（SD卡）和初始化按钮
-无内部电池：需外接电源供电。
三、应用领域
石油与天然气：复杂流程控制、远程监控
电力行业：发电机组自动化、电网稳定性管理
化工与制药：反应器温度控制、工艺参数监测
智能制造：生产线控制、机器人协同作业
能源管理：分布式能源系统集成与优化。
ABB PM891K01 3BSE053241R1 is a core processor unit of a high-performance distributed control system,designed for industrial automation applications,especially for high reliability demanding scenarios such as oil,gas,power generation,and chemical processing.The following is a comprehensive analysis of its key features and technical details:
I.Core parameters and architecture
Model:PM891K01 3BSE053241R1
Brand:ABB
Series:System 800xA control system
Structural form:single-chip unit(integrated power supply,CPU board,terminal)
Installation method:control room installation
Dimensions:280 mm(length)×105 mm(height)×245 mm(width)
Weight:2.1 kg
II.Technical features
High-performance processing capability
-Processor:MPC8270 multi-core processor,clock frequency 450 MHz
-Memory:256 MB RAM(available application memory 208.985 MB)
-Processing speed:0.043 milliseconds/1000 Boolean operations
-Compatibility:Only supports ABB System 800xA 6.0.2 and higher systems.
Redundant design
-CPU redundancy:supports dual-machine hot standby,and the master-slave switching time is less than 1 millisecond
-Communication redundancy:dual redundant Ethernet ports(RJ45)and redundant communication interfaces
-Bus redundancy:improve availability through segmentation of CEX bus interconnection unit(BC810)
-I/O redundancy:supports redundant configuration of S800 I/O unit clusters.
Communication and expansion capabilities
-Interface:2 Ethernet ports(CN1/CN2),1 isolated serial port(COM4)
-Bus expansion:CEX bus supports connecting 7 S800 I/O unit clusters(up to 12 modules per cluster)
-Protocol support:Ethernet,Modbus,Profibus and other industrial protocols.
Safety and protection
-Protection level:IP20(no additional protective housing required)
-EMC certification:meets industrial electromagnetic compatibility standards
-Safety functions:real-time clock,LED indicator,secure digital interface(SD card)and initialization button
-No internal battery:external power supply is required.
III.Application areas
Oil and gas:complex process control,remote monitoring
Power industry:generator automation,grid stability management
Chemical and pharmaceutical:reactor temperature control,process parameter monitoring
Intelligent manufacturing:production line control,robot collaborative operation
Energy management:distributed energy system integration and optimization.
