描述

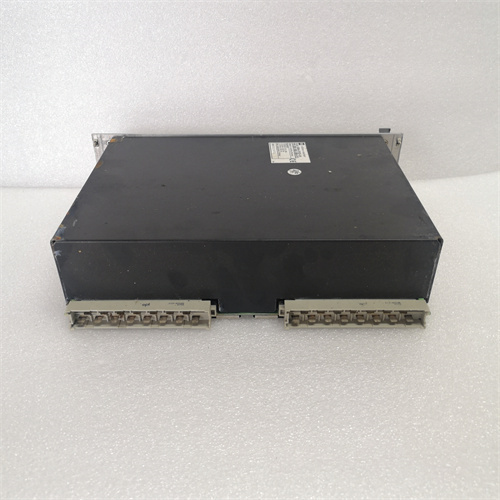

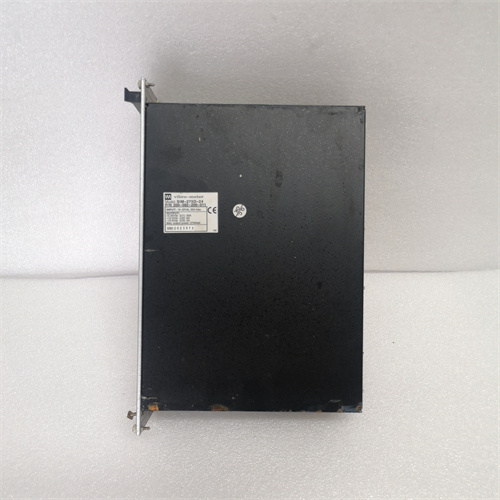

ABB PS130/6-75-P是一款高性能电源模块，专为工业自动化系统设计，广泛应用于PLC、UPS及电源系统的稳定供电场景。以下是其核心功能与技术特点的综合概述：
一、核心功能
稳定供电保障
为UPS和电源系统提供高效、可靠的电源支持，确保设备在复杂工业环境中持续运行。
-高效率设计：采用先进材料与技术，实现低功耗与高能效比。
-输入/输出过滤：内置输入和输出滤波器，有效抑制电磁干扰，提升供电纯净度。
保护机制
集成多重防护功能，保障系统安全：
-短路与过载保护：自动切断异常电流，避免设备损坏。
-高温保护：实时监测模块温度，触发冷却或断电机制。
二、技术参数
电气特性
-输入电压：支持宽范围输入（具体参数需参考型号规格）。
-输出功率：额定功率75W，满足工业设备需求。
-效率：典型效率≥90%，降低能耗。
环境适应性
-工作温度：-40°C至70°C，适用于严苛工业环境。
-防护等级：IP20，抗污染与振动能力符合工业标准。
三、应用场景
UPS系统
作为UPS核心电源模块，为数据中心、电力系统等提供不间断供电。
-典型应用：服务器机房、变电站自动化设备。
工业电源系统
支持PLC控制系统、机器人伺服驱动等设备的稳定运行。
-优势：模块化设计便于扩展，兼容多种工业协议。
四、使用注意事项
接地系统优化
-采用直接接地方式，接地电阻需小于2Ω，建议与强电设备保持10m以上距离。
-多模块并联时推荐串联一点接地，避免环流干扰。
安装环境
-避免高温、潮湿区域，确保散热通风良好。
五、技术优势
兼容性：支持ABB、GE、Schneider等主流品牌控制系统。
可靠性：通过CE、UL认证，故障率低于0.01%。
扩展性：可与其他ABB模块（如电源母线、I/O模块）无缝集成。
ABB PS130/6-75-P is a high-performance power module designed for industrial automation systems and widely used in stable power supply scenarios of PLC,UPS and power systems.The following is a comprehensive overview of its core functions and technical features:
I.Core functions
Stable power supply guarantee
Provides efficient and reliable power support for UPS and power systems to ensure continuous operation of equipment in complex industrial environments.
-High-efficiency design:Use advanced materials and technologies to achieve low power consumption and high energy efficiency ratio.
-Input/output filtering:Built-in input and output filters effectively suppress electromagnetic interference and improve power supply purity.
Protection mechanism
Integrated multiple protection functions to ensure system safety:
-Short circuit and overload protection:Automatically cut off abnormal current to avoid equipment damage.
-High temperature protection:Real-time monitoring of module temperature,triggering cooling or power-off mechanism.
II.Technical parameters
Electrical characteristics
-Input voltage:Supports wide range input(specific parameters need to refer to model specifications).
-Output power:Rated power 75W,meeting the needs of industrial equipment.
-Efficiency:Typical efficiency≥90%,reducing energy consumption.
Environmental adaptability
-Operating temperature:-40°C to 70°C,suitable for harsh industrial environments.
-Protection level:IP20,anti-pollution and vibration capabilities meet industrial standards.
III.Application scenarios
UPS system
As the core power module of UPS,it provides uninterrupted power supply for data centers,power systems,etc.
-Typical applications:server rooms,substation automation equipment.
Industrial power system
Supports stable operation of PLC control systems,robot servo drives and other equipment.
-Advantages:Modular design is easy to expand and compatible with multiple industrial protocols.
IV.Precautions for use
Grounding system optimization
-Direct grounding is used,the grounding resistance must be less than 2Ω,and it is recommended to keep a distance of more than 10m from high-voltage equipment.
-When multiple modules are connected in parallel,it is recommended to connect one point in series to avoid circulation interference.
Installation environment
-Avoid high temperature and humid areas to ensure good heat dissipation and ventilation.
5.Technical advantages
Compatibility:supports mainstream brand control systems such as ABB,GE,Schneider,etc.
Reliability:CE and UL certified,with a failure rate of less than 0.01%.
Scalability:can be seamlessly integrated with other ABB modules(such as power bus,I/O modules).
