描述

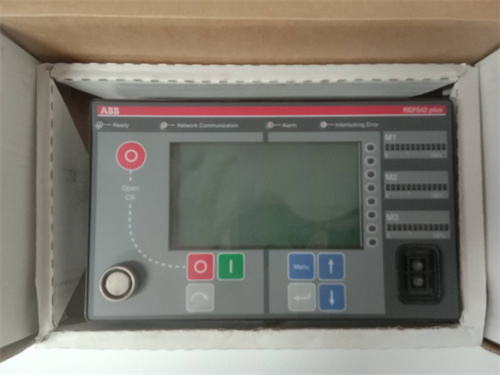

ABB REF542PLUS是一款集保护、控制、测量、通信和监视于一体的紧凑型数字继电保护设备，广泛应用于中压开关柜及配电系统，提供高效、灵活的电力系统解决方案。以下是其核心功能与技术特点的综合概述：
一、核心功能与技术特点
多功能集成
REF542PLUS将保护、控制、测量、状态监视等功能集成于单一装置，支持馈线保护、变压器保护、电机保护及开关控制，可灵活适配不同应用场景。其保护功能模块化设计，用户可通过软件配置实现多达24种保护方案，例如：
-电流保护：过流、反时限过流、接地故障保护。
-电压保护：过压、欠压、残余过电压保护。
-距离保护：适用于复杂电网拓扑的快速故障定位。
-差动保护：针对变压器、电机的精确差动保护。
图形化人机界面（HMI）
-高清晰度显示：采用大屏幕LCD，支持中文界面，可实时显示一次系统单线图、测量值、事件记录等信息。
-触摸屏操作：支持参数配置、报警确认、控制操作（如分合闸），操作逻辑直观易用。
-多语言支持：适配全球用户需求，提升本地化体验。
通信与集成能力
-协议兼容性：支持IEC 61850、Modbus、Modbus TCP等标准协议，可无缝集成至ABB或第三方变电站自动化系统。
-扩展接口：提供以太网、RS485等接口，支持远程数据采集与控制，实现智能电网的实时监控。
自诊断与维护
-状态监控：实时监测开关设备状态（如弹簧储能时间、跳闸线圈回路）、电流/电压输入断线等异常。
-事件记录：存储故障录波、操作日志，便于事后分析与运维决策。
-维护建议：定期检查接线松动、电源电压稳定性，提供维护记录模板，降低故障风险。
二、应用场景
配电网与变电站
-快速切除故障区域，保障系统可靠性；保护变压器、断路器等关键设备。
工业电力系统
-防护制造业、化工厂等场景的电机、开关设备过载、短路故障。
新能源领域
-适用于风力发电、太阳能逆变器的电力保护，确保清洁能源系统的稳定运行。
基础设施
-保护医院、数据中心等关键设施的供电，避免因电力故障导致的业务中断。
ABB REF542PLUS is a compact digital relay protection device that integrates protection,control,measurement,communication and monitoring.It is widely used in medium-voltage switchgear and distribution systems,providing efficient and flexible power system solutions.The following is a comprehensive overview of its core functions and technical features:
I.Core functions and technical features
Multi-function integration
REF542PLUS integrates protection,control,measurement,status monitoring and other functions into a single device,supports feeder protection,transformer protection,motor protection and switch control,and can be flexibly adapted to different application scenarios.Its protection function is modularly designed,and users can implement up to 24 protection schemes through software configuration,such as:
-Current protection:overcurrent,inverse time overcurrent,ground fault protection.
-Voltage protection:overvoltage,undervoltage,residual overvoltage protection.
-Distance protection:suitable for fast fault location in complex power grid topologies.
-Differential protection:accurate differential protection for transformers and motors.
Graphical human-machine interface(HMI)
-High-definition display:large-screen LCD,supporting Chinese interface,can display the single-line diagram of the primary system,measurement values,event records and other information in real time.
-Touch screen operation:supports parameter configuration,alarm confirmation,control operations(such as opening and closing),and the operation logic is intuitive and easy to use.
-Multi-language support:adapt to global user needs and enhance localization experience.
Communication and integration capabilities
-Protocol compatibility:supports standard protocols such as IEC 61850,Modbus,Modbus TCP,etc.,and can be seamlessly integrated into ABB or third-party substation automation systems.
-Expansion interface:provides Ethernet,RS485 and other interfaces,supports remote data acquisition and control,and realizes real-time monitoring of smart grids.
Self-diagnosis and maintenance
-Status monitoring:real-time monitoring of switchgear status(such as spring energy storage time,trip coil circuit),current/voltage input disconnection and other abnormalities.
-Event recording:store fault recordings and operation logs to facilitate post-analysis and operation and maintenance decisions.
-Maintenance suggestions:Regularly check loose connections and power supply voltage stability,provide maintenance record templates,and reduce the risk of failure.
2.Application scenarios
Distribution network and substation
-Quickly remove the fault area to ensure system reliability;protect key equipment such as transformers and circuit breakers.
Industrial power system
-Protect motors and switchgear from overload and short circuit failures in manufacturing,chemical plants and other scenarios.
New energy field
-Applicable to power protection of wind power generation and solar inverters to ensure the stable operation of clean energy systems.
Infrastructure
-Protect the power supply of key facilities such as hospitals and data centers to avoid business interruptions caused by power failures.
