描述

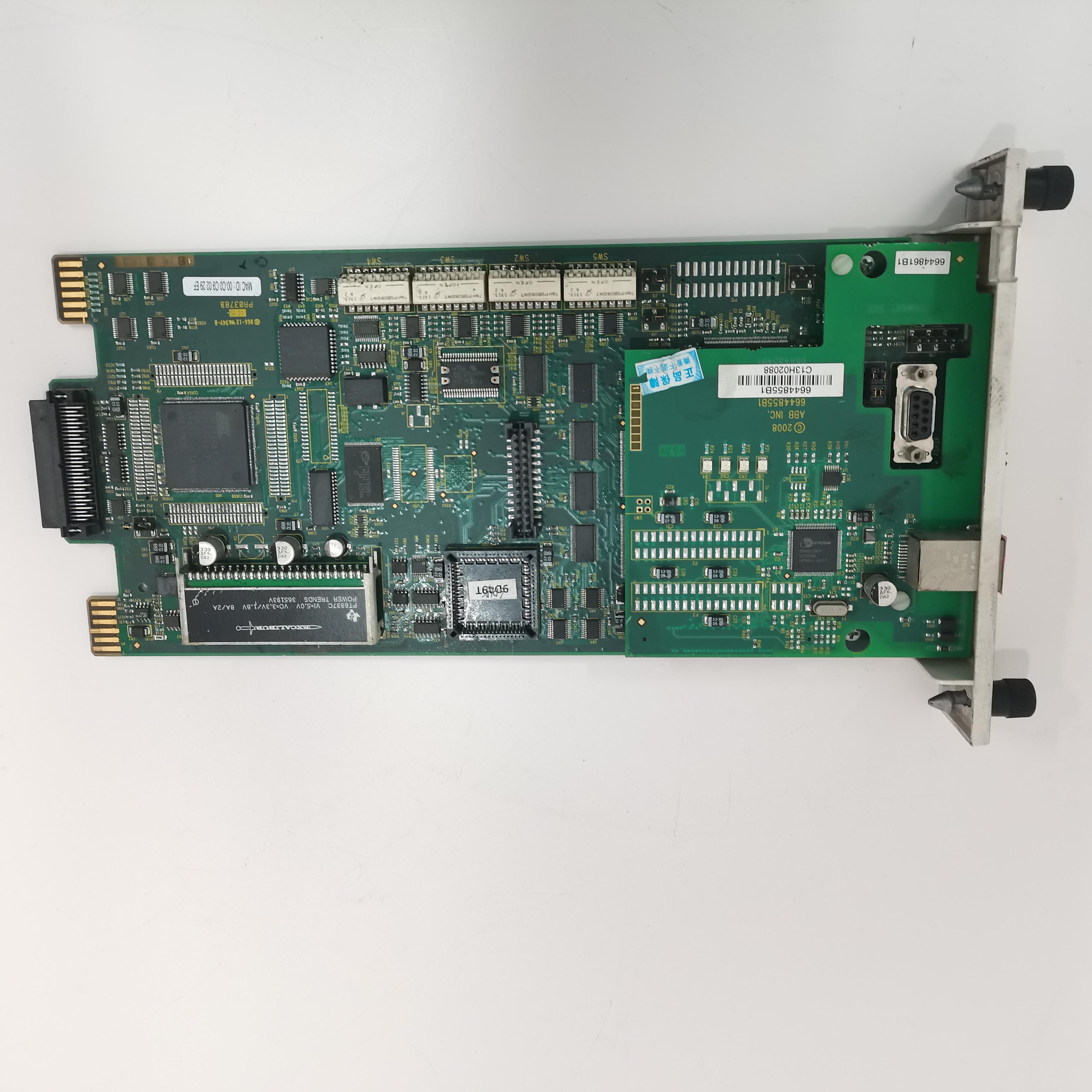

ABB SPBRC300是一款多功能控制器模块，广泛应用于工业自动化领域，具有高安全性能、灵活扩展和多场景适应性。以下是其核心功能与技术特点的综合概述：
一、核心功能定位
安全相关控制
SPBRC300属于ABB SafePerbance系列，专为安全关键任务设计，符合国际标准（如EN 61508和EN ISO 13849），支持紧急停机、故障自诊断及冗余配置，确保工业环境中的设备和人员安全。
桥式起重机控制
该模块也可作为桥接控制器，适用于桥式起重机的吊运与行走控制，支持可编程模式、多种编码器接口及远程监控功能，广泛应用于港口、工厂等场景。
过程数据处理
作为HR系列可扩展控制器的一员，SPBRC300集成32位ColdFire处理器（160 MHz），支持复杂控制策略（如连续控制、批量控制），并提供150多种预定义功能块和C语言编程能力。
二、技术特点
高性能与可靠性
-处理能力：支持多任务并行操作，满足高动态控制需求。
-冗余设计：双模件冗余配置可实现故障无缝切换，提升系统可用性。
-环境适应性：宽温设计（-40℃至+70℃），抗干扰能力强，适用于工业现场。
通信与接口
-支持Modbus TCP、Profibus DP等协议，兼容以太网、串口等接口，可集成智能设备（如HART仪表）。
-支持100 Mbps以太网端口（仅限SPBRC410型号），扩展通信能力。
编程与配置
-支持梯形图（Ladder）、功能块（FBD）、C语言等多种编程方式，兼容Composer 5.0及以上开发工具。
-在线配置功能灵活，用户可动态调整参数与控制策略。
三、应用领域
工业自动化
-制造业：生产线安全监控、机器人控制。
-能源与公用事业：电力系统保护、水处理流程控制。
-交通运输：港口起重机、铁路信号系统。
特殊场景
-安全保护：化工、冶金行业中的危险区域监控。
-环保领域：废水处理、空气质量监测系统。
PFCL201CE 50KN 3BSX802939-108
ABB SPBRC300 is a multifunctional controller module widely used in industrial automation,with high safety performance,flexible expansion and multi-scenario adaptability.The following is a comprehensive overview of its core functions and technical features:
I.Core Function Positioning
Safety-related Control
SPBRC300 belongs to the ABB SafePerbance series,designed for safety-critical tasks,in compliance with international standards(such as EN 61508 and EN ISO 13849),supports emergency shutdown,fault self-diagnosis and redundant configuration to ensure the safety of equipment and personnel in industrial environments.
Bridge Crane Control
The module can also be used as a bridge controller for the hoisting and travel control of bridge cranes.It supports programmable modes,multiple encoder interfaces and remote monitoring functions,and is widely used in ports,factories and other scenarios.
Process Data Processing
As a member of the HR series of scalable controllers,SPBRC300 integrates a 32-bit ColdFire processor(160 MHz),supports complex control strategies(such as continuous control,batch control),and provides more than 150 predefined function blocks and C language programming capabilities.
2.Technical Features
High Performance and Reliability
-Processing Capacity:Supports multi-task parallel operation to meet high dynamic control requirements.
-Redundant Design:Dual-module redundant configuration can achieve seamless fault switching and improve system availability.
-Environmental Adaptability:Wide temperature design(-40℃to+70℃),strong anti-interference ability,suitable for industrial sites.
Communication and Interface
-Supports Modbus TCP,Profibus DP and other protocols,compatible with Ethernet,serial port and other interfaces,and can integrate intelligent devices(such as HART instruments).
-Supports 100 Mbps Ethernet port(SPBRC410 model only)to expand communication capabilities.
Programming and Configuration
-Supports multiple programming methods such as ladder diagram(Ladder),function block(FBD),C language,etc.,and is compatible with Composer 5.0 and above development tools.
-Flexible online configuration function,users can dynamically adjust parameters and control strategies.
3.Application Fields
Industrial Automation
-Manufacturing:production line safety monitoring,robot control.
-Energy and Utilities:Power system protection,water treatment process control.
-Transportation:Port cranes,railway signaling systems.
Special Scenarios
-Safety Protection:Hazardous Area Monitoring in Chemical and Metallurgical Industries.
-Environmental Protection:Wastewater Treatment,Air Quality Monitoring Systems.
