描述

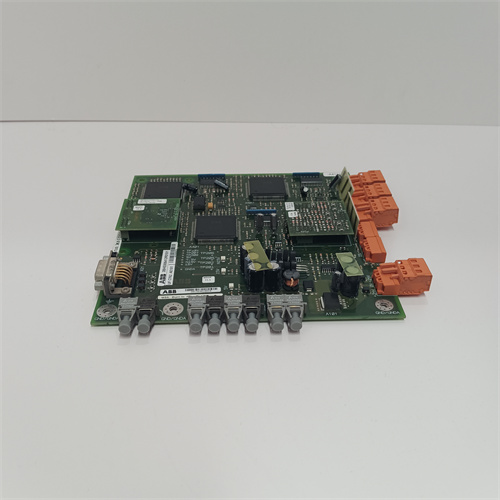

ABB UFC719AE01是一款多功能工业自动化模块，广泛应用于控制、通信、电源保护及高压转换等领域。以下是其核心功能、技术参数及应用领域的综合概述：
一、核心功能
PLC控制与扩展
-作为硬PLC模块，支持模块化扩展，最多可扩展4个IO模块，总IO点数达128个，适用于复杂控制系统的构建。
-内置8K程序空间，支持用户程序安全保护机制（如两级密码加密），确保数据安全。
输入/输出控制
-支持多种信号类型（如开关量、脉冲、模拟量），具备数字信号处理与协议转换能力（如MODBUS转PROFIBUS）。
-兼容高压逆变器功能，可将高压直流电转换为频率和电压可调的交流电，适用于高压电机驱动。
电源保护与稳定性
-集成电压骤降校正功能，通过有源电压调节器（AVC）保护工业负载免受电网干扰，效率超过98%。
-配合UPS-I短时储能系统，可实现短暂断电下的不间断供电，适用于半导体及数据中心场景。
通信与协议支持
-集成2个串口（RS-232/RS-485），支持Modbus、Profibus等工业协议，便于设备互联与数据传输。
-可扩展通信距离，实现远程监控与数据采集。
二、技术参数
处理器与存储：32位架构，8K程序空间，1MB数据存储，支持多任务并行处理。
IO特性：模拟输入（0-10V、4-20mA）、数字量输入/输出（24V隔离）、继电器输出（2A）。
环境适应性：工作温度-30°C至+70°C，湿度95%（非凝结），防护等级IP20。
电源：支持220V AC或24V DC供电，部分型号兼容高压直流输入。
三、应用领域
工业自动化：流程控制、机器人定位、电力系统监测等场景的控制核心。
能源与交通：高压电机驱动、变频器IO扩展、轨道交通信号控制。
电源管理：敏感设备电压保护（如半导体生产线）、数据中心不间断供电。
智能仪表：传感器信号采集、数据转换与协议适配。
ABB UFC719AE01 is a multifunctional industrial automation module,widely used in control,communication,power protection and high-voltage conversion.The following is a comprehensive overview of its core functions,technical parameters and application areas:
I.Core functions
PLC control and expansion
-As a hard PLC module,it supports modular expansion,up to 4 IO modules can be expanded,and the total number of IO points reaches 128,which is suitable for the construction of complex control systems.
-Built-in 8K program space,support user program security protection mechanism(such as two-level password encryption)to ensure data security.
Input/output control
-Supports multiple signal types(such as switching quantity,pulse,analog quantity),with digital signal processing and protocol conversion capabilities(such as MODBUS to PROFIBUS).
-Compatible with high-voltage inverter function,it can convert high-voltage DC into AC with adjustable frequency and voltage,suitable for high-voltage motor drive.
Power protection and stability
-Integrated voltage sag correction function,protects industrial loads from grid interference through active voltage regulator(AVC),with an efficiency of more than 98%.
-With UPS-I short-term energy storage system,it can realize uninterrupted power supply under short power outage,which is suitable for semiconductor and data center scenarios.
Communication and protocol support
-Integrates 2 serial ports(RS-232/RS-485),supports industrial protocols such as Modbus and Profibus,and facilitates device interconnection and data transmission.
-Expandable communication distance to achieve remote monitoring and data acquisition.
2.Technical parameters
Processor and storage:32-bit architecture,8K program space,1MB data storage,support multi-task parallel processing.
IO characteristics:analog input(0-10V,4-20mA),digital input/output(24V isolation),relay output(2A).
Environmental adaptability:working temperature-30°C to+70°C,humidity 95%(non-condensing),protection level IP20.
Power supply:supports 220V AC or 24V DC power supply,and some models are compatible with high-voltage DC input.
3.Application field
Industrial automation:control core of scenarios such as process control,robot positioning,and power system monitoring.
Energy and transportation:high-voltage motor drive,inverter IO expansion,rail transit signal control.
Power management:voltage protection of sensitive equipment(such as semiconductor production lines),uninterrupted power supply for data centers.
Smart meters:sensor signal acquisition,data conversion and protocol adaptation.
