描述
产品简要说明

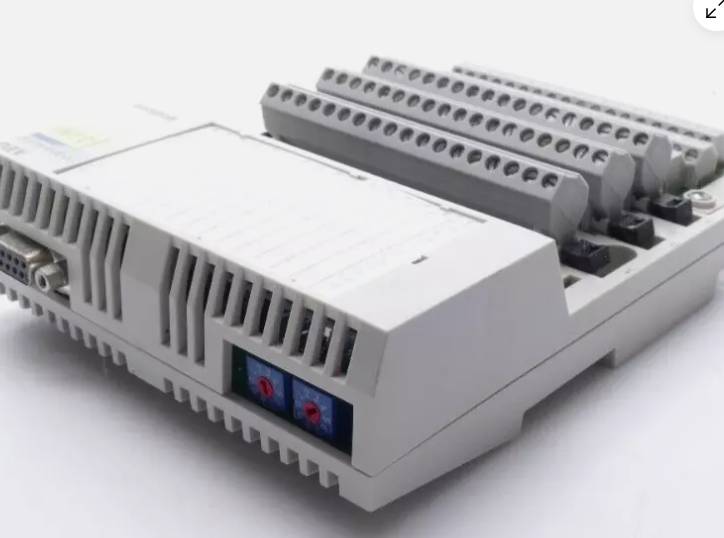

AEG Modicon 170BDM34200是施耐德电气（Schneider Electric）Modicon系列的工业通信模块，专为复杂工业网络架构设计。其核心功能包括：
协议兼容性：支持Modbus TCP/IP、EtherNet/IP、PROFINET
高速数据传输：网络带宽达100Mbps，支持实时数据交换
冗余设计：双电源输入与通信链路冗余配置
产品详细说明
1.硬件架构与核心功能
通信协议支持
协议栈：
Modbus TCP/IP：支持ASCII与RTU模式，兼容主流SCADA系统
EtherNet/IP：支持CIP（工业协议）与UOIT（统一对象模型）
PROFINET：实时通信周期≤1ms
物理接口
以太网端口：2个RJ45端口（10/100Mbps，支持冗余）
串行接口：2个RS-485端口（支持Modbus RTU）
电源接口：24V DC双冗余输入（支持热备份切换）
数据处理能力
数据缓存：16MB RAM（支持动态数据分区）
事件记录：最大存储10,000条报警事件
产品概述:AEG Modicon 170BDM34200
作为Modicon系列的通信核心模块，其核心价值在于协议兼容性与高可靠性：
技术优势：
多协议融合：单模块集成Modbus、EtherNet/IP、PROFINET协议栈
工业级防护：IP67防护等级（防尘防水）
行业适配：
智能制造：连接PLC、传感器与上位机系统
能源管理：电力监控系统（EMS）数据聚合
物流自动化：AGV调度与仓储管理系统
技术规格:AEG Modicon 170BDM34200
参数项规格描述
通信协议Modbus TCP/IP、EtherNet/IP、PROFINET
网络带宽100Mbps
存储容量RAM 16MB/Flash 2MB
防护等级IP67
工作温度-30℃至70℃
电源输入24V DC×2（冗余）
Product brief description
The AEG Modicon 170BDM34200 is a Schneider Electric Modicon series industrial communication module designed for complex industrial network architectures.Its core functions include:
Protocol compatibility:Supports Modbus TCP/IP,EtherNet/IP,PROFINET
High-speed data transmission:network bandwidth up to 100Mbps,supports real-time data exchange
Redundant design:dual power input and communication link redundant configuration
Product details
1.Hardware architecture and core functions
Communication protocol support
Protocol stack:
Modbus TCP/IP:Supports ASCII and RTU modes,compatible with mainstream SCADA systems
EtherNet/IP:Supports CIP(Industrial Protocol)and UOIT(Unified Object Model)
PROFINET:Real-time communication cycle≤1ms
Physical interface
Ethernet port:2 RJ45 ports(10/100Mbps,support redundancy)
Serial interface:2 RS-485 ports(supports Modbus RTU)
Power interface:24V DC dual redundant input(supports hot backup switching)
Data processing capability
Data cache:16MB RAM(supports dynamic data partitioning)
Event record:maximum storage of 10,000 alarm events
Product Overview:AEG Modicon 170BDM34200
As the communication core module of the Modicon series,its core value lies in protocol compatibility and high reliability:
Technical Advantages:
Multi-protocol fusion:single-module integration Modbus,EtherNet/IP,PROFINET protocol stack
Industrial protection:IP67 protection level(dust and waterproof)
Industry adaptation:
Intelligent manufacturing:connecting PLC,sensor and computer system
Energy Management:Electric Power Monitoring System(EMS)Data Aggregation
Logistics automation:AGV scheduling and warehousing management system
Technical Specifications:AEG Modicon 170BDM34200
Parameters Specification Description
Communication protocol Modbus TCP/IP,EtherNet/IP,PROFINET
Network bandwidth 100Mbps
Storage capacity RAM 16MB/Flash 2MB
Protection level IP67
Operating temperature-30℃to 70℃
Power input 24V DC×2(redundant)
