描述
产品简要说明

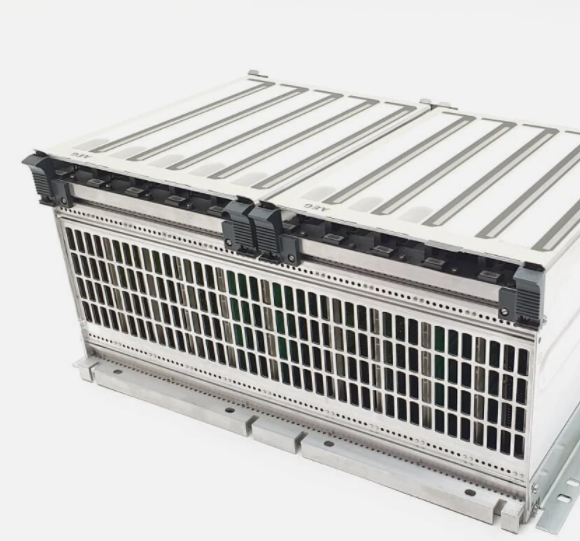

AEG Modicon ALU151 CPU是施耐德电气（Schneider Electric）Modicon系列的中型工业PLC控制器，专为复杂工业自动化系统的实时控制与数据处理设计。其核心功能包括：
高性能处理器：32位双核CPU，主频1GHz
多协议兼容：支持Modbus TCP/IP、EtherNet/IP及PROFINET
扩展能力：支持本地I/O扩展与远程分布式控制
产品详细说明
1.硬件架构与处理能力
处理器与内存
CPU：双核ARM Cortex-A架构，主频1GHz
内存：
RAM：512MB DDR4（支持程序与数据并行存储）
Flash：4GB（可存储固件及用户程序）
实时性：
扫描周期：≤20ms（10K I/O点）
硬实时任务处理能力
通信接口
以太网接口：
2个千兆工业以太网口（支持冗余配置）
协议支持：Modbus TCP/IP、EtherNet/IP、PROFINET
串口：
4个RS-485/422接口（兼容Modbus RTU）
1个USB 3.0接口（支持固件升级与数据导出）
电源与供电
电压范围：24V DC±10%
功耗：≤15W（典型值）
冗余电源：支持双电源热备份
产品概述:AEG Modicon ALU151 CPU
作为Modicon系列的中型控制核心，其核心价值在于高性能实时控制与多协议兼容性：
技术优势：
双核架构：独立处理控制任务与通信任务，避免资源冲突
宽温设计：-20℃至60℃工作范围
行业适配：
智能制造：机器人协同控制与产线节拍优化
能源管理：光伏逆变器实时监测与故障诊断
轨道交通：列车信号系统逻辑控制
Product brief description
The AEG Modicon ALU151 CPU is a medium-sized industrial PLC controller from Schneider Electric Modicon series,designed for real-time control and data processing of complex industrial automation systems.Its core functions include:
High-performance processor:32-bit dual-core CPU,main frequency 1GHz
Multi-protocol compatibility:Supports Modbus TCP/IP,EtherNet/IP and PROFINET
Extension capability:Support local I/O expansion and remote distributed control
Product details
1.Hardware architecture and processing capabilities
Processor and memory
CPU:Dual-core ARM Cortex-A architecture,main frequency 1GHz
Memory:
RAM:512MB DDR4(supports parallel storage of programs and data)
Flash:4GB(can store firmware and user programs)
Real-time:
Scan period:≤20ms(10K I/O points)
Hard real-time task processing capability
Communication interface
Ethernet interface:
2 Gigabit Industrial Ethernet ports(supports redundant configuration)
Protocol support:Modbus TCP/IP,EtherNet/IP,PROFINET
Serial port:
4 RS-485/422 interfaces(compatible with Modbus RTU)
1 USB 3.0 interface(supports firmware upgrade and data export)
Power supply and power supply
Voltage range:24V DC±10%
Power consumption:≤15W(typical)
Redundant power supply:Support dual power supply hot backup
Product Overview:AEG Modicon ALU151 CPU
As the mid-sized control core of the Modicon series,its core value lies in high-performance real-time control and multi-protocol compatibility:
Technical Advantages:
Dual-core architecture:independently handle control tasks and communication tasks to avoid resource conflicts
Wide temperature design:-20℃to 60℃working range
Industry adaptation:
Intelligent manufacturing:robot collaborative control and production line beat optimization
Energy management:Real-time monitoring and fault diagnosis of photovoltaic inverters
Rail Transit:Logical Control of Train Signal System
