描述
产品简要说明

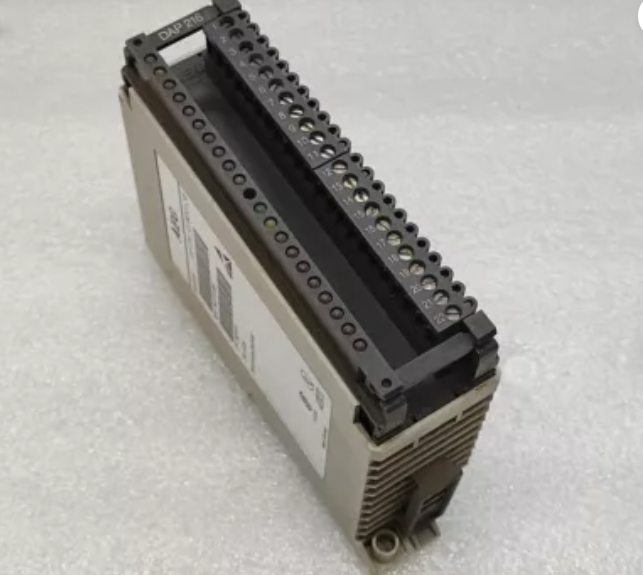

AEG Modicon DAP 216N/AS-BDAP-216N是施耐德电气（Schneider Electric）Modicon系列的高密度数字量I/O扩展模块，专为工业自动化系统设计。其核心功能包括：
I/O通道配置：支持24路独立隔离数字量输入（DI）与24路数字量输出（DO）
信号类型：兼容NPN/PNP型开关信号（DI）与继电器/晶体管输出（DO）
通信协议：支持Modbus RTU协议（RS-485接口）
产品详细说明
1.硬件架构与核心功能
I/O通道特性
隔离设计：
DI通道：光耦隔离（耐压2500V AC）
DO通道：继电器隔离（触点容量2A/250V AC）
信号兼容性：
DI输入：NPN/PNP型开关信号（3.3-30V DC）
DO输出：继电器（机械触点）或晶体管（24V DC）可选
通信接口
主通信端口：RS-485 Modbus RTU接口（波特率9600-115200bps）
辅助接口：
1个USB Type-C（固件升级与诊断）
电源与防护
供电方式：24V DC单电源输入（冗余可选）
防护等级：IP20（室内工业环境适用）
抗干扰能力：符合IEC 61000-4-4（EFT 4kV）
产品概述:AEG Modicon DAP 216N/AS-BDAP-216N
作为Modicon系列的高密度I/O扩展模块，其核心价值在于系统集成效率与可靠性：
技术优势：
紧凑设计：单模块集成48路I/O（DI+DO），节省机柜空间
灵活配置：支持继电器/晶体管输出模式切换
行业适配：
智能制造：机械臂动作信号采集与控制
物流自动化：分拣系统光电传感器与电磁阀驱动
楼宇自动化：消防联动信号采集与执行
Product brief description
AEG Modicon DAP 216N/AS-BDAP-216N is a high-density digital I/O expansion module of Schneider Electric Modicon series,designed for industrial automation systems.Its core functions include:
I/O channel configuration:Supports 24 independent isolated digital inputs(DI)and 24 digital outputs(DO)
Signal type:Compatible with NPN/PNP switch signal(DI)and relay/transistor output(DO)
Communication protocol:Support Modbus RTU protocol(RS-485 interface)
Product details
1.Hardware architecture and core functions
I/O channel characteristics
Isolation design:
DI channel:optocoupler isolation(with 2500V AC)
DO channel:relay isolation(contact capacity 2A/250V AC)
Signal compatibility:
DI input:NPN/PNP type switch signal(3.3-30V DC)
DO output:Relay(mechanical contact)or transistor(24V DC)optional
Communication interface
Main communication port:RS-485 Modbus RTU interface(baud rate 9600-115200bps)
Auxiliary interface:
1 x USB Type-C(firmware upgrade and diagnostics)
Power and protection
Power supply method:24V DC single power supply input(redundant optional)
Protection level:IP20(applicable for indoor industrial environment)
Anti-interference ability:comply with IEC 61000-4-4(EFT 4kV)
Product Overview:AEG Modicon DAP 216N/AS-BDAP-216N
As a high-density I/O expansion module of the Modicon series,its core value lies in system integration efficiency and reliability:
Technical Advantages:
Compact design:single module integrated 48-channel I/O(DI+DO),saving cabinet space
Flexible configuration:Supports relay/transistor output mode switching
Industry adaptation:
Intelligent manufacturing:robotic arm action signal acquisition and control
Logistics automation:photoelectric sensor and solenoid valve drive in sorting system
Building automation:Fire linkage signal acquisition and execution
