描述
产品简要说明

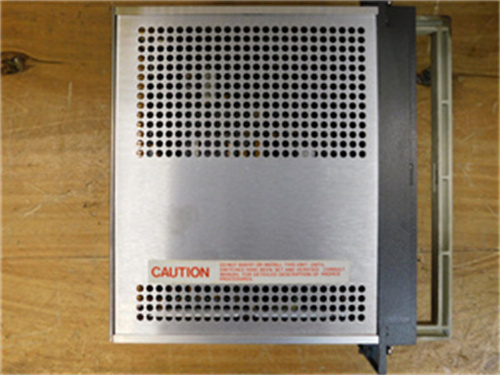

AEG MODICON J892 ASCII REMOTE I/O PROCESSOR AS-J892-001是施耐德电气（Schneider Electric）Modicon系列的远程I/O通信处理器，专为工业自动化系统设计，核心特性包括：
远程I/O管理：支持ASCII协议通信，实现分布式I/O数据采集与控制
多协议兼容性：适配Modbus RTU、EtherNet/IP等工业协议，支持跨平台集成
环境适应性：IP20防护等级，适应工业环境温度与电磁干扰
产品详细说明
1.硬件架构与核心功能
模块化设计
物理接口：
通信接口：双RS-485端口（主从模式可配置）
扩展能力：支持最多16个远程I/O站级联，总通道数可达256路
通信特性：
协议支持：ASCII命令集、Modbus RTU、EtherNet/IP（需主控支持）
主控兼容性：适配Modicon M340、Quantum系列控制器
电气特性
工作电压：24V DC±10%（支持冗余电源输入）
隔离保护：通信接口与I/O通道之间电气隔离（耐压3000V AC）
2.远程I/O管理与通信机制
ASCII协议解析：支持ASCII命令集（如RD读取、WR写入、ST状态查询）
数据缓存机制：内置16KB FIFO缓冲区，支持突发数据传输
故障诊断：实时上报通信错误（如超时、校验失败）
3.环境适应性与可靠性
温度范围：-20℃至60℃（短期工作可扩展至70℃）
抗干扰能力：符合EN 61000-6-2/4标准（抗电磁干扰、浪涌保护）
冗余设计：支持双通信链路热备，故障切换时间<500ms
产品概述:AEG MODICON J892 ASCII REMOTE I/O PROCESSOR AS-J892-001
作为Modicon系列的远程I/O通信中枢，其核心价值在于分布式系统扩展与协议兼容性：
技术亮点：
ASCII协议支持：简化非标准设备接入，降低系统集成复杂度
级联扩展能力：单处理器支持16个远程I/O站，覆盖大型工厂场景
行业适配：
能源管理：风电场远程传感器数据采集与控制
智能制造：汽车生产线分布式执行机构协同控制
建筑自动化：楼宇空调系统多区域温度监测与调节
Product brief description
AEG MODICON J892 ASCII REMOTE I/O PROCESSOR AS-J892-001 is a Schneider Electric Modicon series remote I/O communication processor designed for industrial automation systems.The core features include:
Remote I/O management:Supports ASCII protocol communication,realizes distributed I/O data acquisition and control
Multi-protocol compatibility:adapted to industrial protocols such as Modbus RTU,EtherNet/IP,and supports cross-platform integration
Environmental adaptability:IP20 protection level,adapt to industrial ambient temperature and electromagnetic interference
Product details
1.Hardware architecture and core functions
Modular design
Physical interface:
Communication interface:Dual RS-485 ports(master and slave mode can be configurable)
Extended capability:Supports cascade of up to 16 remote I/O stations,with a total number of channels up to 256 channels.
Communication characteristics:
Protocol support:ASCII command set,Modbus RTU,EtherNet/IP(requires master support)
Master control compatibility:adapted to Modicon M340 and Quantum series controllers
Electrical characteristics
Operating voltage:24V DC±10%(supports redundant power input)
Isolation protection:electrical isolation between the communication interface and the I/O channel(withstand voltage of 3000V AC)
2.Remote I/O management and communication mechanism
ASCII protocol analysis:supports ASCII command set(such as RD reading,WR writing,ST status query)
Data cache mechanism:built-in 16KB FIFO buffer,supports burst data transmission
Troubleshooting:Report communication errors in real time(such as timeout,verification failure)
3.Environmental adaptability and reliability
Temperature range:-20℃to 60℃(short-term work can be expanded to 70℃)
Anti-interference ability:complies with EN 61000-6-2/4 standard(anti-electromagnetic interference,surge protection)
Redundant design:supports dual communication link hot standby,failover time<500ms
Product Overview:AEG MODICON J892 ASCII REMOTE I/O PROCESSOR AS-J892-001
As the remote I/O communication center of the Modicon series,its core value lies in the compatibility of distributed system expansion and protocol:
Technical Highlights:
ASCII protocol support:simplifies non-standard equipment access and reduces system integration complexity
Cascading expansion capability:a single processor supports 16 remote I/O stations,covering large factory scenarios
Industry adaptation:
Energy management:Wind farm remote sensor data acquisition and control
Intelligent manufacturing:collaborative control of distributed actuators in automobile production lines
Building automation:multi-region temperature monitoring and regulation of building air conditioning systems
