描述
产品简要说明

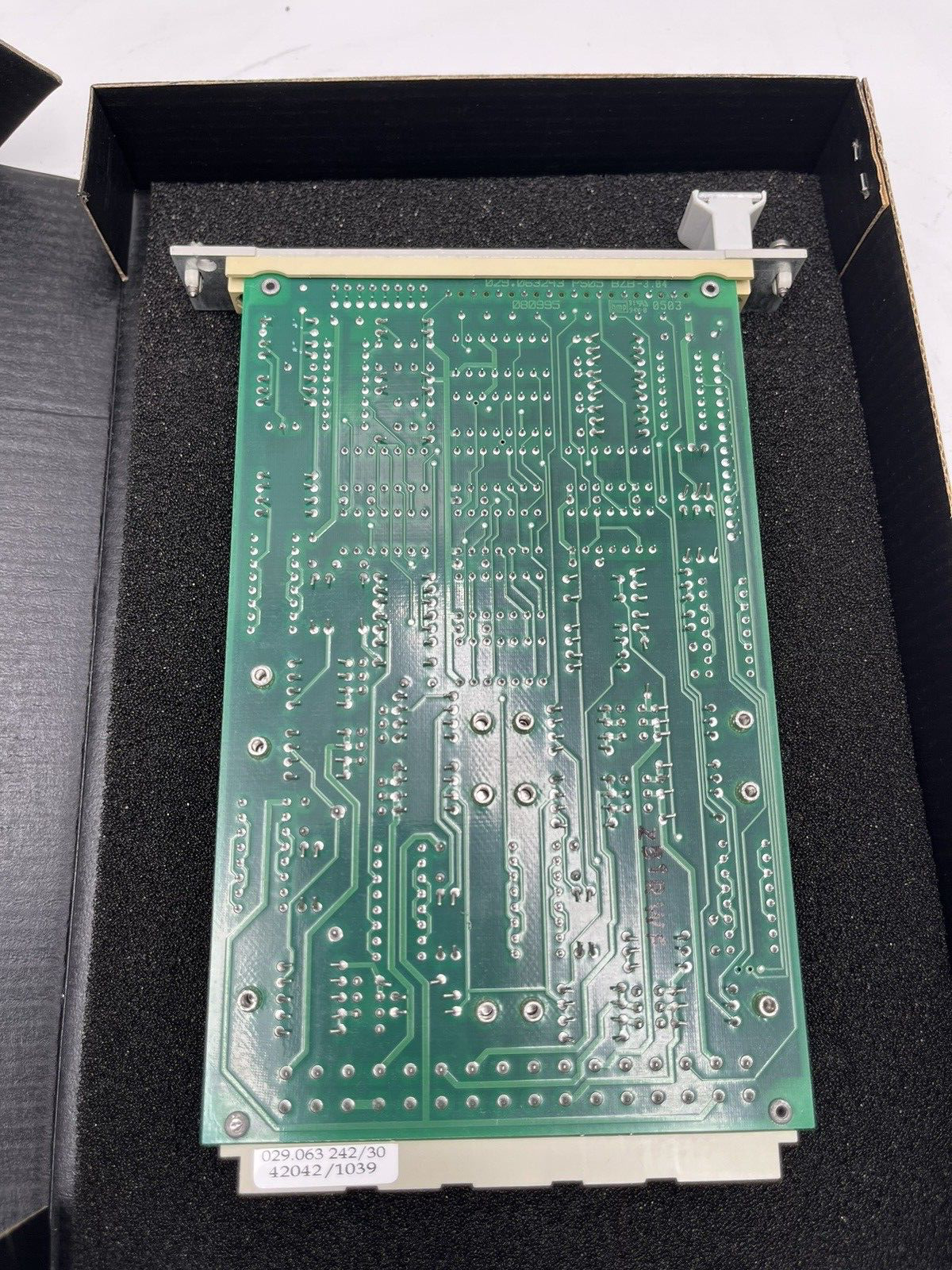

ALSTOM 029.063 242是一款高精度智能传感器模块，专为轨道交通环境监测与工业自动化设计，核心功能包括：
多参数感知：支持温度、湿度、振动、气体浓度（如CO₂、VOC）等多物理量实时采集
工业级防护：IP67防护等级，适应-40℃至70℃极端环境
低功耗设计：休眠模式下功耗≤5mA，支持电池供电
智能边缘计算：内置数据预处理算法，减少云端传输负载
产品详细说明
1.硬件架构与感知能力
核心传感器：
温度传感器：±0.5℃精度（-40℃至125℃量程）
振动传感器：三轴加速度计（0.1g至100g量程）
气体传感器：电化学式CO₂传感器（0-2000ppm量程，响应时间≤30秒）
信号处理：
16位ADC模数转换器，采样率1kHz
低噪声放大电路设计，信噪比≥90dB
2.通信与数据交互
通信接口：
1×LoRaWAN（支持星型网络组网，传输距离≥10km）
1×RS-485（Modbus RTU协议，波特率可配置）
数据协议：
支持MQTT over LoRaWAN协议，适配工业物联网平台
数据加密：AES-128加密传输
3.轨道交通场景适配设计
抗电磁干扰：
符合EN 50121-3-2标准（铁路电磁兼容性）
屏蔽外壳设计，抗干扰能力提升40%
长期稳定性：
温度补偿算法，确保传感器漂移≤1%年
防尘防潮结构，适应隧道、站台等高湿度环境
技术规格:ALSTOM 029.063 242
参数项规格描述
感知参数温度（±0.5℃）、湿度（±3%RH）、振动（三轴加速度计）、CO₂（0-2000ppm）
防护等级IP67（防尘防水）
通信协议LoRaWAN+Modbus RTU
功耗工作模式≤20mA，休眠模式≤5mA
工作温度-40℃至70℃
核心价值与性能亮点
1.全场景环境监测
技术突破：在地铁隧道中，CO₂浓度实时监测数据帮助优化通风系统，降低能耗10%-15%
2.长寿命部署
场景案例：某高铁站台项目中，振动传感器连续运行3年无漂移，维护成本降低50%
应对挑战，创造价值
1.复杂工业环境干扰
技术突破：在化工厂气体泄漏监测中，LoRaWAN穿透能力实现无盲区覆盖
2.低维护需求
场景案例：城市地下管廊项目中，电池供电模式下传感器续航达5年
Product brief description
ALSTOM 029.063 242 is a high-precision intelligent sensor module designed for rail transit environmental monitoring and industrial automation.The core functions include:
Multi-parameter perception:supports real-time acquisition of multiple physical quantities such as temperature,humidity,vibration,gas concentration(such as CO₂,VOC)and other multiple physical quantities.
Industrial protection:IP67 protection level,adapted to extreme environments of-40℃to 70℃
Low power consumption design:power consumption≤5mA in sleep mode,supports battery power supply
Intelligent edge computing:built-in data preprocessing algorithm to reduce cloud transmission load
Product details
1.Hardware architecture and perception capabilities
Core sensor:
Temperature sensor:±0.5℃accuracy(-40℃to 125℃range)
Vibration sensor:three-axis accelerometer(0.1g to 100g range)
Gas sensor:electrochemical CO₂sensor(0-2000ppm range,response time≤30 seconds)
Signal processing:
16-bit ADC analog-to-digital converter,sampling rate of 1kHz
Low noise amplifier circuit design,signal-to-noise ratio≥90dB
2.Communication and data interaction
Communication interface:
1×LoRaWAN(supports star network networking,transmission distance≥10km)
1×RS-485(Modbus RTU protocol,baud rate configurable)
Data protocol:
Supports MQTT over LoRaWAN protocol and is adapted to industrial IoT platform
Data encryption:AES-128 encrypted transmission
3.Rail Transit Scene Adaptation Design
Anti-electromagnetic interference:
Comply with EN 50121-3-2 standard(rail electromagnetic compatibility)
Shielding shell design,anti-interference capability is improved by 40%
Long-term stability:
Temperature compensation algorithm ensures sensor drift≤1%year
Dust-proof and moisture-proof structure,adapting to high humidity environments such as tunnels and platforms
Technical Specifications:ALSTOM 029.063 242
Parameters Specification Description
Perceived parameters Temperature(±0.5℃),humidity(±3%RH),vibration(three-axis accelerometer),CO₂(0-2000ppm)
Protection level IP67(dust-proof and waterproof)
Communication Protocol LoRaWAN+Modbus RTU
Power consumption:Operating mode≤20mA,Sleep mode≤5mA
Operating temperature-40℃to 70℃
Core Valuesand Performance Highlights
1.Full-scene environment monitoring
Technical breakthrough:In subway tunnels,real-time monitoring of CO₂concentration helps optimize ventilation systems and reduce energy consumption by 10%-15%.
2.Long-life deployment
Scenario case:In a high-speed rail platform project,the vibration sensor operated continuously for three years without drift,and the maintenance cost was reduced by 50%.
Respond to challenges and create value
1.Interference in complex industrial environment
Technical breakthrough:LoRaWAN penetration capability achieves blind spot-free coverage in gas leakage monitoring in chemical plant
2.Low maintenance requirements
Scenario case:In the urban underground pipeline project,the sensor battery life is 5 years under battery powered mode
