描述
产品简要说明

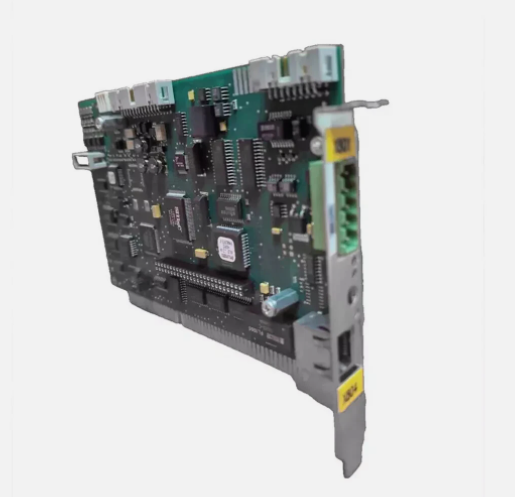

Alstom A00502/001是阿尔斯通（Alstom）针对电力、轨道交通及工业安全领域设计的模块化PLC控制器，核心特性包括：
模块化架构：支持灵活扩展，兼容多种I/O模块
工业级性能：高处理速度与低故障率设计
安全认证：符合铁路与电力行业的严格标准
产品详细说明
1.硬件架构与核心参数
物理特性
尺寸：参考同类产品（如ALSTOM 8263-4154）推测为紧凑型设计，支持导轨安装
重量：约1.2-1.5公斤
安装方式：模块式扩展，兼容标准DIN导轨
电气性能
电源输入：
DC 24V/AC 110-230V（冗余供电可选）
功耗：≤10W（典型负载）
通信接口：
2×EtherCAT总线接口
1×光纤以太网（抗电磁干扰）
信号处理能力
数字量I/O：
支持扩展模块（如LC105A-1数字离散输出模块）
最大支持500点I/O（参考ALSTOM 8263-4154）
模拟量输入：
可选4-20mA/0-10V通道，分辨率16位
2.功能特性与行业适配
安全控制机制
冗余设计：
双通道通信校验，故障切换时间≤20ms
硬件自检与实时诊断功能
安全等级：
SIL2/SIL3认证（IEC 61508）
符合铁路EN 50126/50128标准
工业协议兼容性
协议支持：
IEC 61850 MMS（电力系统协议）
PROFINET实时通信
通信案例：
适配智能变电站设备群控需求
Product brief description
Alstom A00502/001 is a modular PLC controller designed by Alstom for the fields of electricity,rail transit and industrial safety.The core features include:
Modular architecture:supports flexible expansion and is compatible with multiple I/O modules
Industrial-grade performance:high processing speed and low failure rate design
Safety certification:Comply with strict standards in the railway and power industry
Product details
1.Hardware architecture and core parameters
Physical characteristics
Dimensions:Referring to similar products(such as ALSTOM 8263-4154)it is speculated to be a compact design,supporting rail installation
Weight:about 1.2-1.5 kg
Installation method:modular expansion,compatible with standard DIN rails
Electrical performance
Power input:
DC 24V/AC 110-230V(optional for redundant power supply)
Power consumption:≤10W(typical load)
Communication interface:
2×EtherCAT bus interface
1×Fiber Optical Ethernet(anti-electromagnetic interference)
Signal processing capability
Digital I/O:
Support expansion modules(such as LC105A-1 digital discrete output module)
Supports maximum 500-point I/O(refer to ALSTOM 8263-4154)
Analog input:
4-20mA/0-10V channels are available,with 16-bit resolution
2.Functional characteristics and industry adaptation
Safety control mechanism
Redundant design:
Dual channel communication verification,failover time≤20ms
Hardware self-test and real-time diagnostic functions
Safety Level:
SIL2/SIL3 certification(IEC 61508)
Comply with railway EN 50126/50128 standards
Industrial Agreement Compatibility
Protocol support:
IEC 61850 MMS(Power System Protocol)
PROFINET real-time communication
Communication cases:
Adapt to group control requirements of smart substation equipment
