描述
一、产品概述

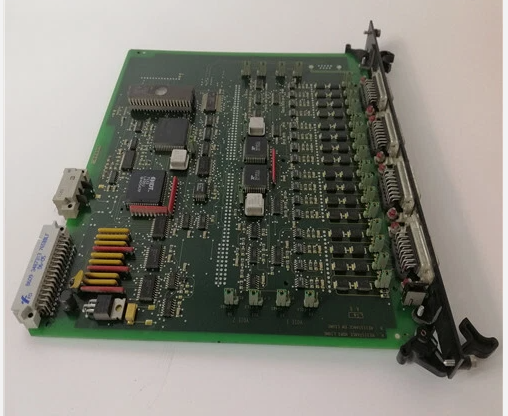

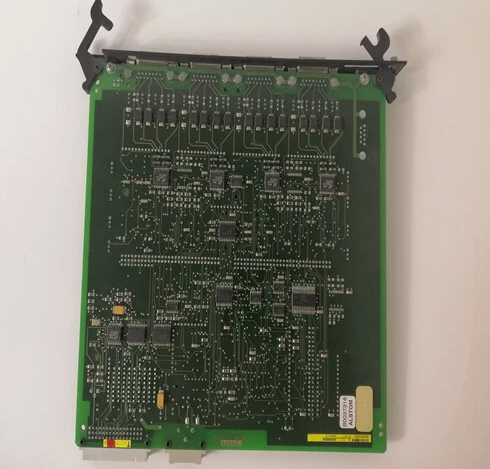

ALSTOM IR139-1是ALSTOM（现为通用电气（GE）能源部门）开发的工业控制主板，专为工业自动化系统设计，作为核心控制单元负责数据处理、逻辑运算及信号输出，适用于电力、能源、轨道交通、化工等高可靠性场景。其设计强调高性能、高稳定性和模块化扩展能力。
二、核心功能与特点
高性能控制
采用高性能微控制器（如ARM或DSP），支持快速数据处理与实时控制，适用于复杂工业逻辑运算。
多路I/O通道：集成模拟/数字输入输出接口，兼容传感器、执行器等设备信号。
通信与集成
多协议支持：兼容Modbus、Profibus、Ethernet/IP等工业通信协议，支持与上位机、其他模块或设备的数据交互。
远程监控：通过通信接口实现远程参数配置、状态监测及故障诊断，降低运维成本。
可靠性与安全性
工业级防护：标准防护等级为IP20（室内），可选IP65（户外）高防护版本，适应恶劣环境。
安全保护机制：内置过载、过热监测及保护功能，防止系统异常导致的设备损坏。
灵活扩展性
模块化设计：支持DIN导轨安装，可扩展通信卡、I/O卡等模块，适配不同规模系统需求。
热插拔功能：部分型号支持在线维护，减少停机时间。
三、技术参数
参数类别具体规格
输入电压24 V DC或220 V AC
通信接口支持Modbus、Profibus、Ethernet/IP等工业协议
处理器高性能微控制器（如ARM或DSP）
I/O通道多路模拟/数字输入输出（具体数量需参考型号配置）
工作温度-20°C至+60°C
尺寸约150 mm×100 mm×50 mm（参考同类产品）
电源冗余部分型号支持双电源输入，确保系统持续运行
认证标准CE、UL、RoHS，符合工业电磁兼容性（EMC）标准
1.Product Overview
ALSTOM IR139-1 is an industrial control motherboard developed by ALSTOM(now General Electric(GE)Energy Department).It is specially designed for industrial automation systems.It is responsible for data processing,logic computing and signal output as the core control unit.It is suitable for high-reliability scenarios such as electricity,energy,rail transit,and chemical industry.Its design emphasizes high performance,high stability and modular expansion capabilities.
2.Core functions and features
High performance control
It adopts high-performance microcontrollers(such as ARM or DSP)to support fast data processing and real-time control,and is suitable for complex industrial logic operations.
Multi-channel I/O channels:Integrated analog/digital input and output interface,compatible with sensors,actuators and other equipment signals.
Communication and integration
Multi-protocol support:compatible with industrial communication protocols such as Modbus,Profibus,Ethernet/IP,etc.,and supports data interaction with host computers,other modules or devices.
Remote monitoring:Remote parameter configuration,status monitoring and fault diagnosis are realized through the communication interface,reducing operation and maintenance costs.
Reliability and security
Industrial protection:The standard protection level is IP20(indoor),optional IP65(outdoor)high-protection version,adapting to harsh environments.
Safety protection mechanism:built-in overload,overheating monitoring and protection functions to prevent equipment damage caused by system abnormalities.
Flexible scalability
Modular design:supports DIN rail installation,can expand communication card,I/O card and other modules,and adapt to the needs of systems of different scales.
Hot-swap function:Some models support online maintenance to reduce downtime.
3.Technical parameters
Parameter category Specific specifications
Input voltage 24 V DC or 220 V AC
Communication interface supports industrial protocols such as Modbus,Profibus,Ethernet/IP
Processor High-performance microcontrollers(such as ARM or DSP)
I/O channel,multiple analog/digital input and output(specific quantity requires reference model configuration)
Operating temperature-20°C to+60°C
Size:Approximately 150 mm×100 mm×50 mm(refer to similar products)
Power redundancy Some models support dual power inputs to ensure continuous operation of the system
Certification standards CE,UL,RoHS,comply with industrial electromagnetic compatibility(EMC)standards
