描述
产品简要说明
ALSTOM MICOM P211是一款高性能电动机综合保护装置，专为工业低压电动机设计，核心功能包括：
多维度保护：支持过负荷、过电流、接地故障、启动超时、缺相及不平衡保护
智能化控制：可分配保护功能至输出继电器，支持RS485远程通信

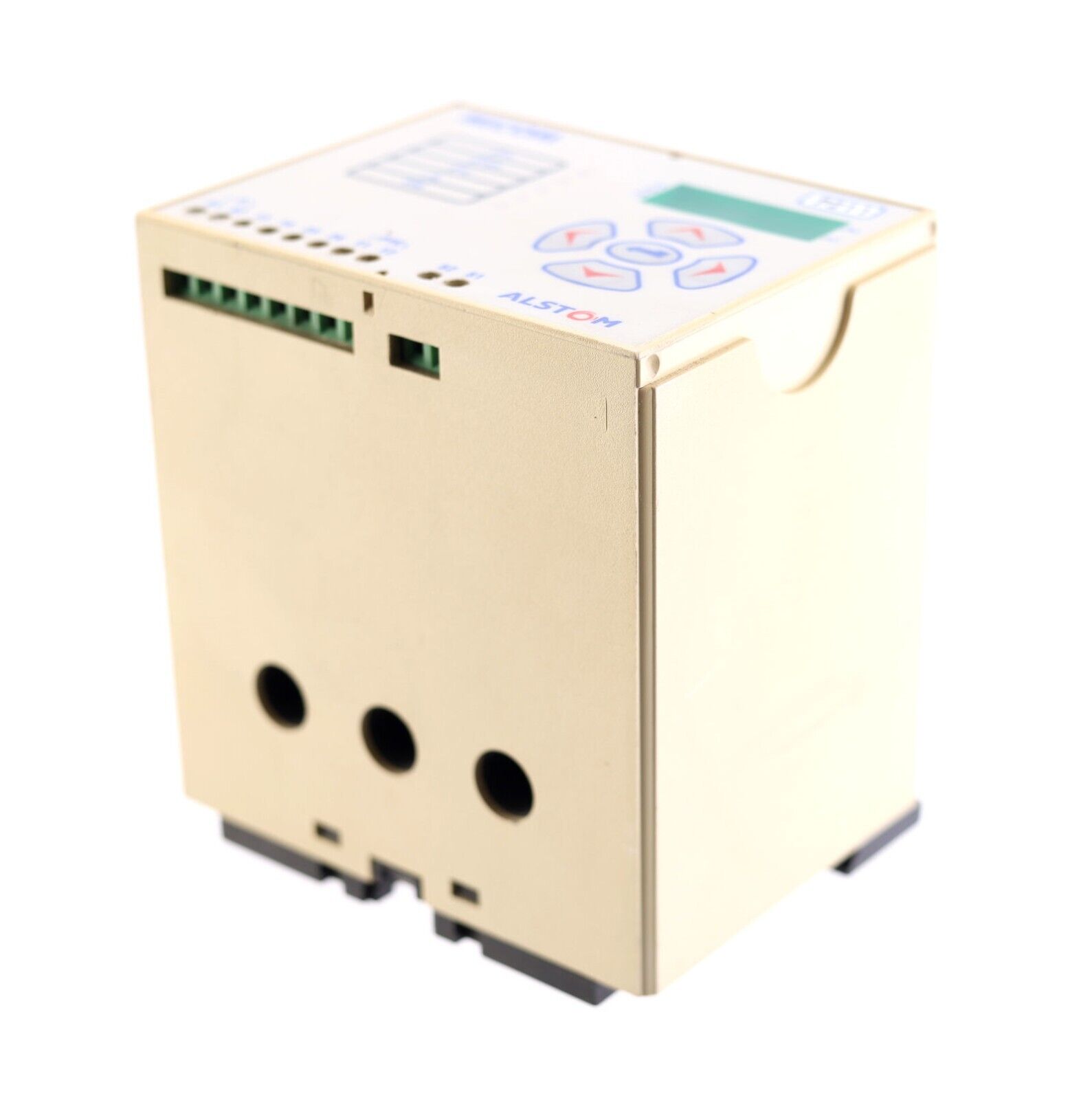

灵活安装：支持DIN轨道或嵌入式安装，兼容35mm轨道标准
产品详细说明
1.硬件架构与功能模块
版本差异：
A型：基础版，仅支持前面板整定
B型：增加零序电流输入与RS485通信接口
C型：在B型基础上扩展数字量输入（V1/V2）与输出继电器（P3/P4）
输入配置：
三相电流输入（L1/L2/L3），支持外部TA接入（整定电流＞80A时需专用TA）
辅助电源输入（A1-A2端子，电压范围兼容AC/DC 24-240V）
2.核心保护逻辑
常规保护：
过负荷保护：基于热时间常数动态计算，支持多级延时整定
过电流保护：瞬时或短延时响应，阈值可配置（1-2000A）
接地故障保护：零序电流检测，灵敏度可调（0.1A-10A）
特殊保护：
启动超时保护：监测电动机启动时间，超限时触发跳闸
缺相与不平衡保护：检测三相电流差异，阈值可配置（5%-50%）
控制功能：
启动次数限制：可设定允许启动次数，防止频繁启停导致设备损伤
3.智能化与通信能力
本地交互：

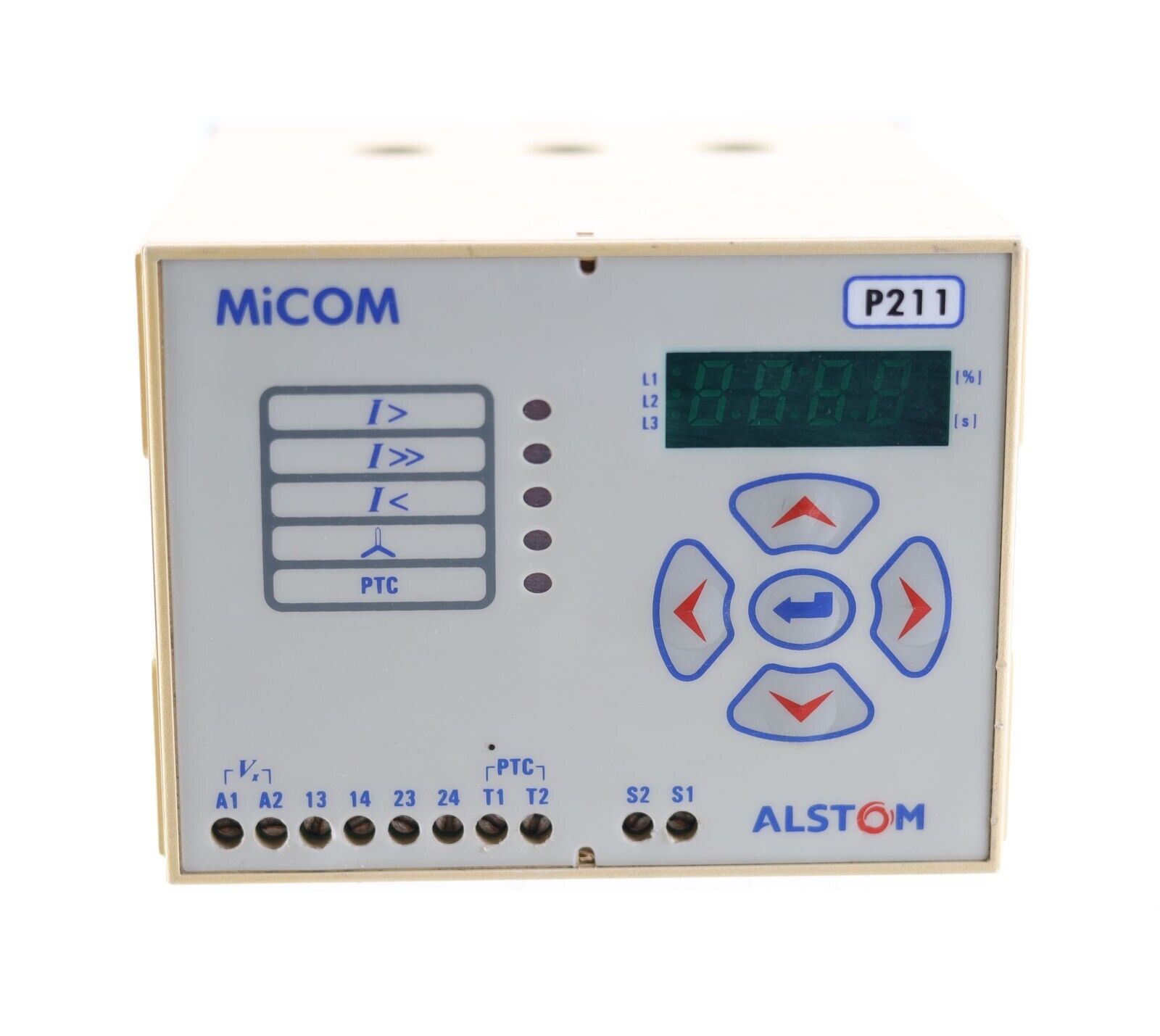

前面板LED指示灯实时显示运行状态（如过载、故障、通信状态）
液晶屏与键盘支持参数查询、整定值修改
远程控制：
RS485接口支持Modbus协议，可与SCADA系统集成
远程读取测量值（如三相电流、温度）、修改保护阈值及触发跳闸
技术规格:ALSTOM MICOM P211
参数项规格描述
保护类型过负荷、过电流、接地故障、启动超时、缺相、不平衡保护
通信接口RS485（Modbus协议），支持远程配置与监控
输入通道3相电流输入（L1/L2/L3），可扩展零序电流输入（B/C型）
辅助电源AC/DC 24-240V，A1-A2端子接入
安装方式DIN轨道或嵌入式安装（兼容35mm轨道）
Product brief description
ALSTOM MICOM P211 is a high-performance motor integrated protection device designed for industrial low-voltage motors,with core functions including:
Multi-dimensional protection:supports overload,overcurrent,grounding fault,start timeout,phase loss and imbalance protection
Intelligent control:can assign protection functions to output relays,support RS485 remote communication
Flexible installation:Supports DIN track or embedded installation,compatible with 35mm track standard
Product details
1.Hardware architecture and functional modules
Version Differences:
Type A:Basic version,only supports front panel adjustment
Type B:Increase the zero-sequence current input and RS485 communication interface
Type C:Expand digital input(V1/V2)and output relay(P3/P4)based on Type B
Enter configuration:
Three-phase current input(L1/L2/L3),supports external TA access(special TA is required when the setting current is>80A)
Auxiliary power input(A1-A2 terminals,voltage range compatible with AC/DC 24-240V)
2.Core protection logic
General protection:
Overload protection:dynamic calculation based on thermal time constant,supporting multi-stage delay adjustment
Overcurrent protection:instantaneous or short delay response,threshold value can be configured(1-2000A)
Ground fault protection:zero-sequence current detection,adjustable sensitivity(0.1A-10A)
Special protection:
Start timeout protection:Monitor the motor start time,trigger tripping when the limit is exceeded
Phase loss and imbalance protection:detect the difference in three phase current,the threshold value can be configured(5%-50%)
Control functions:
Number of startups:The number of allowed startups can be set to prevent frequent starts and stops causing equipment damage
3.Intelligence and communication capabilities
Local interaction:
The front panel LED indicator light displays the operating status in real time(such as overload,fault,communication status)
LCD screen and keyboard support parameter query and setting value modification
Remote control:
RS485 interface supports Modbus protocol and can be integrated with SCADA system
Remote reading of measured values(such as three-phase current,temperature),modifying protection thresholds and triggering trip
Technical Specifications:ALSTOM MICOM P211
Parameters Specification Description
Protection type Overload,overcurrent,grounding fault,start timeout,phase loss,unbalanced protection
Communication interface RS485(Modbus protocol),supports remote configuration and monitoring
Input channel 3-phase current input(L1/L2/L3),expandable zero-sequence current input(B/C type)
Auxiliary power supply AC/DC 24-240V,A1-A2 terminal connection
Installation method DIN track or embedded installation(compatible with 35mm track)
