描述
产品简要说明

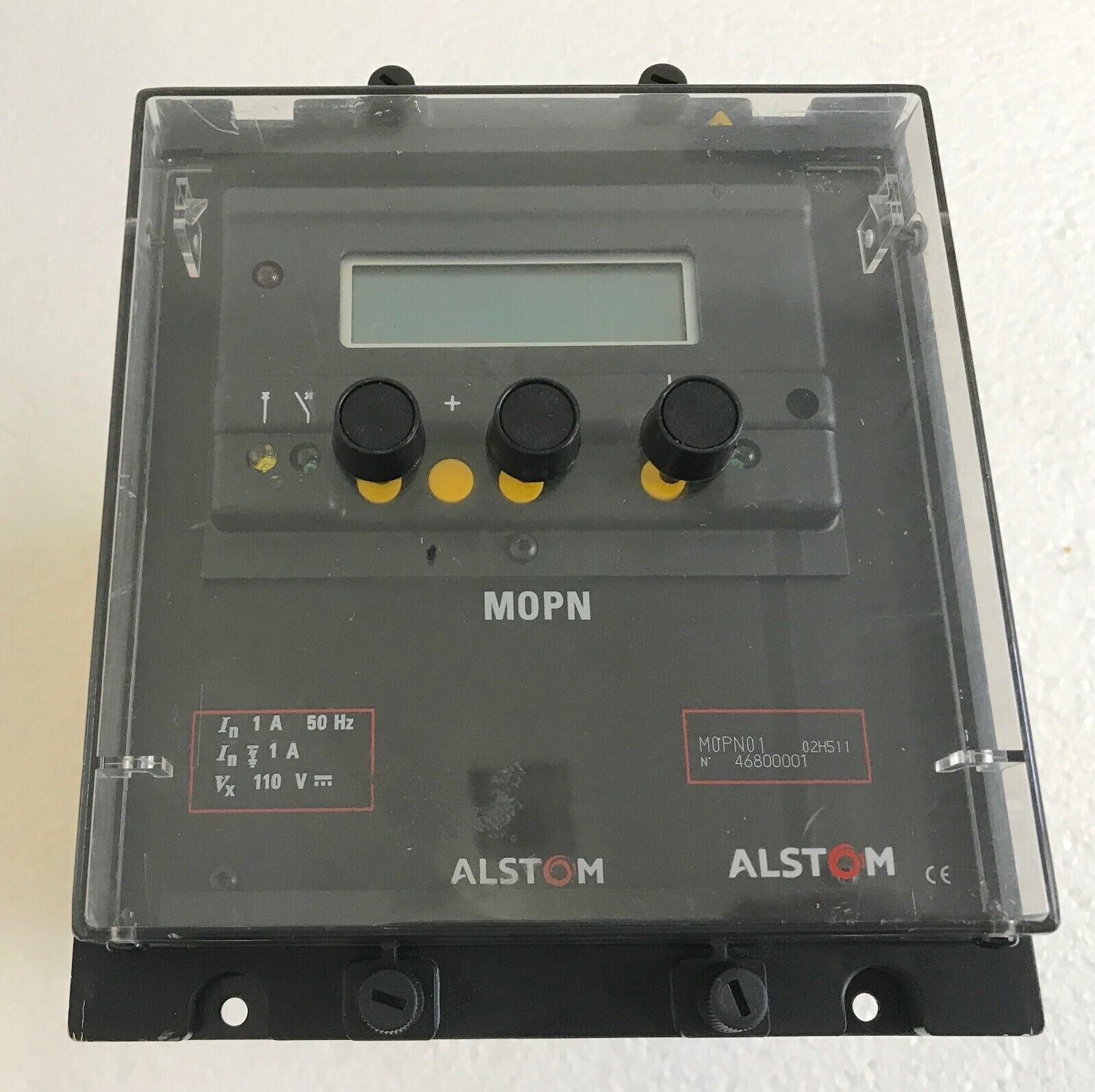

ALSTOM MOPN MOPN01 46800001是一款工业级自动化控制单元，专为电力系统、轨道交通及工业设备设计，核心功能包括：
多场景保护：支持过流、过压、短路等电力故障保护
模块化扩展：兼容多种I/O模块，适应复杂控制需求
智能诊断：实时监测设备状态并生成故障报告
产品详细说明
1.硬件架构与功能模块
核心处理器：
嵌入式实时操作系统，支持多任务并行处理
支持16位/32位数据处理，响应时间≤5ms
输入输出配置：
模拟量输入：8路0-10V/4-20mA输入，精度±0.1%
数字量I/O：16路DI（干接点）+16路DO（继电器触点）
通信接口：双以太网（10/100Mbps）、RS485、CAN总线
2.核心保护逻辑
电力系统保护：
过流保护：支持瞬时、短延时、长延时三段式保护
差动保护：适用于变压器、发电机等关键设备
温度保护：集成PT100温度传感器接口，阈值可调
故障诊断：
本地存储10,000条事件日志，支持故障波形捕捉
通过以太网实时上传数据至SCADA系统
3.智能通信与集成能力
协议支持：
工业协议：IEC 61850、Modbus TCP、DNP3.0
同步接口：IRIG-B时间同步（DC/AC双模式）
远程管理：
支持Web界面远程配置与固件升级
提供API接口，兼容第三方监控平台
技术规格:ALSTOM MOPN MOPN01 46800001
参数项规格描述
电源输入24-240V AC/DC，双冗余电源设计
输入通道8路模拟量输入（0-10V/4-20mA）+16路DI+16路DO
通信接口2×Ethernet（10/100Mbps）+RS485+CAN总线
防护等级IP67（防尘防水）
工作温度-40℃至70℃
核心价值与性能亮点
1.模块化设计
灵活扩展：支持定制化I/O模块，适应不同工业场景需求
2.高可靠性
冗余电源：双电源热备份设计，确保电力中断时系统持续运行
Product brief description
ALSTOM MOPN MOPN01 46800001 is an industrial-grade automation control unit designed for power systems,rail transit and industrial equipment.The core functions include:
Multi-scenario protection:supports power failure protection such as overcurrent,overvoltage,short circuit,etc.
Modular expansion:compatible with multiple I/O modules,adapting to complex control needs
Intelligent diagnostics:Real-time monitoring of equipment status and generating fault reports
Product details
1.Hardware architecture and functional modules
Core processor:
Embedded real-time operating system,supports multi-task parallel processing
Supports 16-bit/32-bit data processing,response time≤5ms
Input and output configuration:
Analog input:8 channels 0-10V/4-20mA inputs,accuracy±0.1%
Digital I/O:16-channel DI(dry contact)+16-channel DO(relay contact)
Communication interface:Dual Ethernet(10/100Mbps),RS485,CAN bus
2.Core protection logic
Power system protection:
Overcurrent protection:supports three-stage protection of instantaneous,short delay and long delay
Differential protection:suitable for key equipment such as transformers and generators
Temperature protection:Integrated PT100 temperature sensor interface,adjustable threshold
Troubleshooting:
10,000 event logs are stored locally,supporting fault waveform capture
Upload data to SCADA system in real time via Ethernet
3.Intelligent communication and integration capabilities
Protocol support:
Industrial Agreement:IEC 61850,Modbus TCP,DNP3.0
Synchronization interface:IRIG-B time synchronization(DC/AC dual mode)
Remote Management:
Support remote configuration of web interface and firmware upgrade
Provides API interface,compatible with third-party monitoring platforms
Technical Specifications:ALSTOM MOPN MOPN01 46800001
Parameters Specification Description
Power input 24-240V AC/DC,dual redundant power supply design
Input channel 8 analog inputs(0-10V/4-20mA)+16 DI+16 DO
Communication interface 2×Ethernet(10/100Mbps)+RS485+CAN bus
Protection level IP67(dust-proof and waterproof)
Operating temperature-40℃to 70℃
Core Valuesand Performance Highlights
1.Modular design
Flexible expansion:Supports customized I/O modules to meet the needs of different industrial scenarios
2.High reliability
Redundant power supply:dual power supply hot backup design to ensure the system continues to operate when power is interrupted
