一、产品概述

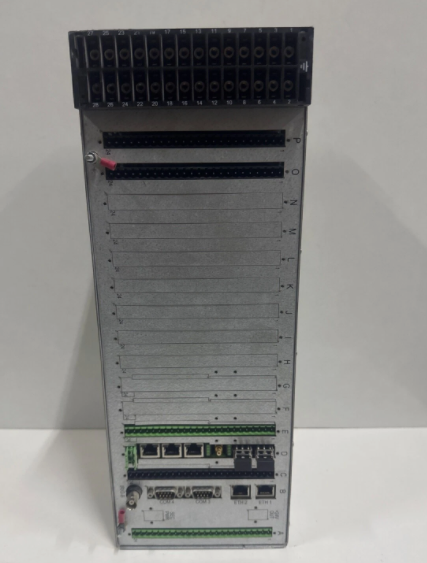

ALSTOM N897164611M是一款多功能工业控制模块，属于ALSTOM 800系列控制器平台的核心组件。它集成了离散I/O控制、脉冲输出、系统控制与通信功能，适用于电力、石油化工、交通运输等行业的自动化系统，提供高精度控制、灵活扩展和稳定运行能力。
二、核心功能与特点
离散I/O与脉冲输出
输入/输出配置：
16I/O模型：8路输入+8路继电器/晶体管输出；
32I/O模型：16路输入+16路晶体管输出。
模拟输入：支持0-10VDC模拟信号，分辨率12位。
脉冲输出：可生成高精度脉冲信号，适用于电机控制、运动调节等场景。
系统控制能力
数据采集与处理：实时采集传感器数据，支持复杂逻辑运算与信号处理。
执行器控制：驱动马达、阀门等执行设备，实现高精度位置和速度控制。
可编程配置：用户可通过软件灵活调整参数，适配不同工业场景需求。
通信与集成
接口类型：兼容DCS系统接口，支持以太网、RS485、Modbus协议及工业总线（如PROFINET）。
远程管理：通过以太网实现远程配置、数据记录和故障诊断，无需第三方HMI。
扩展性：支持插接离散、模拟、串行通信或蓝牙模块（最多3个插件）。
工业级可靠性
环境适应性：坚固的工业设计，适应高温、高湿、电磁干扰等恶劣环境。
故障诊断：实时监测模块状态，自动检测硬件故障（如电源缺失、通信异常）并生成报警。
冗余能力：支持双电源和通信接口冗余配置，确保系统高可用性。
三、技术参数
参数类别规格
工作电压24 V DC（输入功率）；部分模块需12 V DC辅助电源（如LAN接口）
通信协议Modbus、PROFINET、以太网TCP/IP
安装方式机架式安装（兼容VME总线）
工作温度-25°C至+70°C
防护等级IP65（部分型号）
扩展插件离散I/O（4点/插件）、模拟I/O（2点/插件）、串行通信或蓝牙模块
四、典型应用场景
电力系统
发电机保护、变电站自动化控制。
交通运输
列车或车辆的执行器控制（如制动系统、阀门调节）。
工业自动化
机器人运动控制、生产线设备协调。
过程控制
化工、水处理等行业的传感器数据采集与执行机构驱动。
1.Product Overview
ALSTOM N897164611M is a multifunctional industrial control module and is a core component of the ALSTOM 800 series controller platform.It integrates discrete I/O control,pulse output,system control and communication functions,and is suitable for automation systems in the power,petrochemical,transportation and other industries,providing high-precision control,flexible expansion and stable operation capabilities.
2.Core functions and features
Discrete I/O and pulse output
Input/Output Configuration:
16I/O model:8 inputs+8 relays/transistor outputs;
32I/O model:16 input+16 transistor output.
Analog input:Supports 0-10VDC analog signals,with a resolution of 12 bits.
Pulse output:It can generate high-precision pulse signals,which are suitable for motor control,motion adjustment and other scenarios.
System control capability
Data acquisition and processing:Collect sensor data in real time,supporting complex logical operations and signal processing.
Actuator control:drive motors,valves and other execution equipment to achieve high-precision position and speed control.
Programmable configuration:Users can flexibly adjust parameters through software to adapt to the needs of different industrial scenarios.
Communication and integration
Interface type:Compatible with DCS system interface,supports Ethernet,RS485,Modbus protocol and industrial bus(such as PROFINET).
Remote Management:Remote configuration,data recording and troubleshooting are enabled over Ethernet without the need for third-party HMI.
Extensibility:Supports plugging discrete,analog,serial communication or Bluetooth modules(up to 3 plug-ins).
Industrial-grade reliability
Environmental adaptability:Sturdy industrial design,adapting to harsh environments such as high temperature,high humidity,electromagnetic interference,etc.
Fault diagnosis:Monitor the module status in real time,automatically detect hardware failures(such as missing power supply,abnormal communication)and generate an alarm.
Redundancy capability:Supports redundant configuration of dual power supply and communication interfaces to ensure high system availability.
3.Technical parameters
Parameter Category Specifications
Operating voltage:24 V DC(input power);some modules require 12 V DC auxiliary power supply(such as LAN interface)
Communication protocols Modbus,PROFINET,Ethernet TCP/IP
Installation method Rack-mounted installation(compatible with VME bus)
Operating temperature-25°C to+70°C
Protection level IP65(some models)
Extended plug-ins Discrete I/O(4 points/plug-in),analog I/O(2 points/plug-in),serial communication or Bluetooth module
4.Typical application scenarios
Power system
Generator protection and substation automation control.
Transportation
Actuator control(such as braking system,valve adjustment)of trains or vehicles.
Industrial automation
Robot motion control and production line equipment coordination.
Process control
Sensor data acquisition and actuator drive in chemical industry,water treatment and other industries.
