描述
产品简要说明

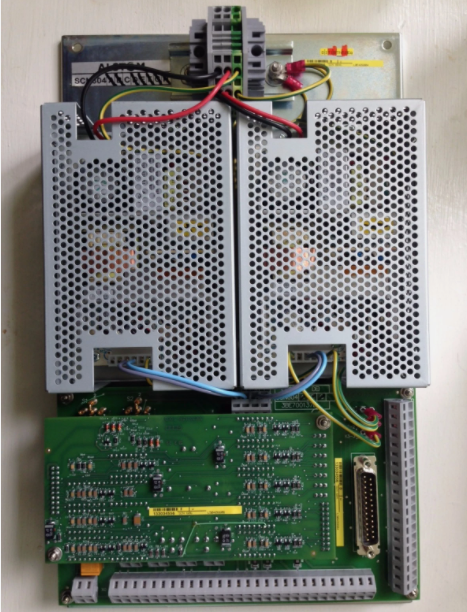

Alstom SCN804 C是阿尔斯通（Alstom）专为工业自动化系统设计的高精度测量接口模块，核心特性包括：
功能定位：支持温度、压力、流量等多物理量测量与数据采集
技术优势：集成高速数据传输与智能算法，确保测量精度与稳定性
行业适配：适用于轨道交通、能源电力、化工制造等领域的实时监测需求
产品详细说明
1.硬件架构与核心功能
模块设计
传感器兼容性：支持热电偶（K/J型）、压力变送器（0-100MPa）、流量计（电磁/涡街）等标准接口
信号处理单元：
ADC精度：24位Σ-Δ模数转换器，全量程线性误差≤±0.1%FS
数据缓存：内置512KB FIFO缓冲区，支持突发数据存储
通信接口：
工业总线：支持Modbus RTU（RS485）、CANopen协议
以太网扩展：可选配千兆以太网接口（需外接协议转换模块）
安全与可靠性
自检功能：上电自动校验传感器连接状态与信号完整性
抗干扰设计：符合IEC 61000-4-2/-4-4/-4-6电磁兼容标准
产品概述:Alstom SCN804 C
作为工业自动化系统的数据采集中枢，其核心价值体现在多参数融合与精准控制：
技术价值：
在轨道交通制动系统中实现温度-压力联动监测
在化工反应釜中支持流量-压力动态补偿
行业适配：
轨道交通：列车空调系统温度/湿度同步采集
能源电力：燃气轮机燃烧室压力-温度实时监控
化工制造：管道流量-压力闭环控制
Product brief description
Alstom SCN804 C is a high-precision measurement interface module designed by Alstom for industrial automation systems.The core features include:
Functional positioning:Supports measurement and data acquisition of multiple physical quantities such as temperature,pressure,and flow.
Technical advantages:Integrating high-speed data transmission and intelligent algorithms to ensure measurement accuracy and stability
Industry adaptation:suitable for real-time monitoring needs in rail transit,energy,electricity,chemical manufacturing and other fields
Product details
1.Hardware architecture and core functions
Module design
Sensor compatibility:Supports standard interfaces such as thermocouple(K/J type),pressure transmitter(0-100MPa),flowmeter(electromagnetic/vortex street)
Signal processing unit:
ADC accuracy:24-bitΣ-Δanalog-to-digital converter,full range linear error≤±0.1%FS
Data cache:Built-in 512KB FIFO buffer,supports burst data storage
Communication interface:
Industrial bus:Supports Modbus RTU(RS485)and CANopen protocols
Ethernet expansion:optional Gigabit Ethernet interface(requires external protocol conversion module)
Safety and reliability
Self-test function:Power-on automatically check the sensor connection status and signal integrity
Anti-interference design:complies with IEC 61000-4-2/-4-4/-4-6 electromagnetic compatibility standard
Product Overview:Alstom SCN804 C
As the data collection hub of industrial automation systems,its core value is reflected in multi-parameter fusion and precise control:
Technical value:
Implement temperature-pressure linkage monitoring in rail transit braking system
Support flow rate-pressure dynamic compensation in chemical reactors
Industry adaptation:
Rail Transit:Temperature/humidity acquisition of train air conditioning system
Energy and electricity:Gas turbine combustion chamber pressure-temperature monitoring
Chemical Manufacturing:Pipeline Flow-Pressure Closed Loop Control
