描述

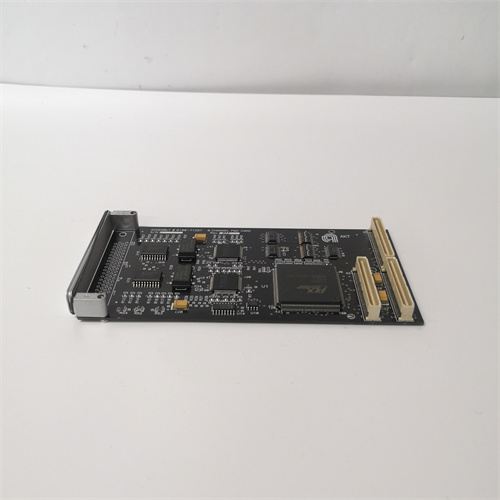

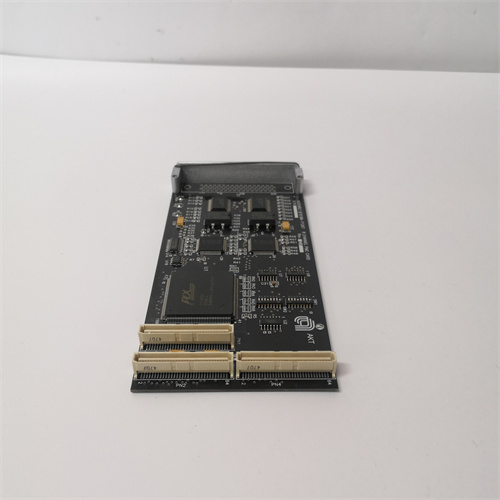

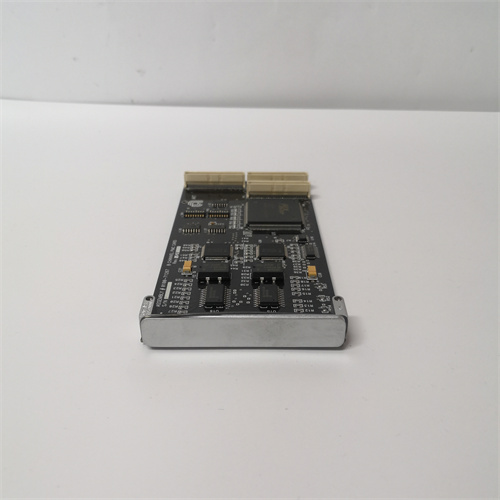

AMAT 0100-71267是一款由Applied Materials（应用材料公司）制造的多功能工业自动化组件，主要用于半导体制造设备和工业自动化系统，以下为其详细产品详情：
核心功能
计数器功能
可记录和计算各种输入信号的数量或频率，支持脉冲信号、电平信号等，将传感器数据转化为可读的计数值。这一功能在工业控制系统中至关重要，可帮助用户精准掌握生产数据。
无线连接扩展
集成嵌入式无线以太网桥接模块，支持通过内置Web服务器和命令行界面，为具备以太网接口的产品添加无线802.11b/g连接，简化串行接口设备的无线化改造。
信号转换与调制
作为8通道PCM卡PCB，可实现模拟信号与数字信号的双向转换，支持脉冲宽度调制（PWM）和幅度调制（AM），满足复杂信号处理需求。
技术参数
电气与接口规格
工作电压：支持24V DC或110V/220V AC，兼容不同工业电源环境。
通信协议：支持Modbus、Profibus等工业通信协议，可扩展至8通道数字输入/输出。
接口类型：PCIe接口，兼容高速数据传输需求。
性能指标
分辨率与采样率：16位分辨率，最高采样率达100 MHz，确保信号处理精度。
环境适应性：工作温度范围-20°C至+70°C，存储温度-40°C至+85°C，湿度5%至95%（非凝结），防护等级IP65，适应恶劣工业环境。
保护功能
集成过流保护、过压保护等机制，防止因异常操作导致设备损坏，提升系统稳定性。
应用场景
半导体制造
用于精确控制步进电机，实现设备部件的精确定位；同时采集温度、压力等传感器数据，保障生产过程的精确性和可靠性，提升产品质量与效率。
工业自动化
扩展系统的I/O功能，连接传感器、驱动器等外部设备，实现多设备协同控制，提升自动化程度。
测试与测量
在高精度信号采集与转换场景中，支持数据采集系统的实时处理需求。
数据采集
通过多通道信号处理能力，满足工业环境中的复杂数据采集需求。
AMAT 0100-71267 is a multifunctional industrial automation component manufactured by Applied Materials,mainly used in semiconductor manufacturing equipment and industrial automation systems.The following is its detailed product details:
Core Function
Counter Function
It can record and calculate the number or frequency of various input signals,support pulse signals,level signals,etc.,and convert sensor data into readable count values.This function is crucial in industrial control systems and can help users accurately grasp production data.
Wireless Connection Expansion
Integrated embedded wireless Ethernet bridge module,supports adding wireless 802.11b/g connection to products with Ethernet interface through built-in web server and command line interface,and simplifies the wireless transformation of serial interface devices.
Signal Conversion and Modulation
As an 8-channel PCM card PCB,it can realize bidirectional conversion between analog and digital signals,support pulse width modulation(PWM)and amplitude modulation(AM),and meet complex signal processing requirements.
Technical Parameters
Electrical and Interface Specifications
Working Voltage:Supports 24V DC or 110V/220V AC,compatible with different industrial power supply environments.
Communication protocol:Supports industrial communication protocols such as Modbus and Profibus,and can be expanded to 8-channel digital input/output.
Interface type:PCIe interface,compatible with high-speed data transmission requirements.
Performance indicators
Resolution and sampling rate:16-bit resolution,maximum sampling rate of 100 MHz,to ensure signal processing accuracy.
Environmental adaptability:operating temperature range-20°C to+70°C,storage temperature-40°C to+85°C,humidity 5%to 95%(non-condensing),protection level IP65,adaptable to harsh industrial environments.
Protection function
Integrated overcurrent protection,overvoltage protection and other mechanisms to prevent equipment damage due to abnormal operation and improve system stability.
Application scenario
Semiconductor manufacturing
Used to accurately control stepper motors and achieve precise positioning of equipment components;at the same time,collect sensor data such as temperature and pressure to ensure the accuracy and reliability of the production process and improve product quality and efficiency.
Industrial automation
Expand the I/O function of the system,connect external devices such as sensors and drivers,realize multi-device collaborative control,and improve the degree of automation.
Test and Measurement
Support the real-time processing requirements of data acquisition systems in high-precision signal acquisition and conversion scenarios.
Data Acquisition
Meet complex data acquisition requirements in industrial environments through multi-channel signal processing capabilities.
