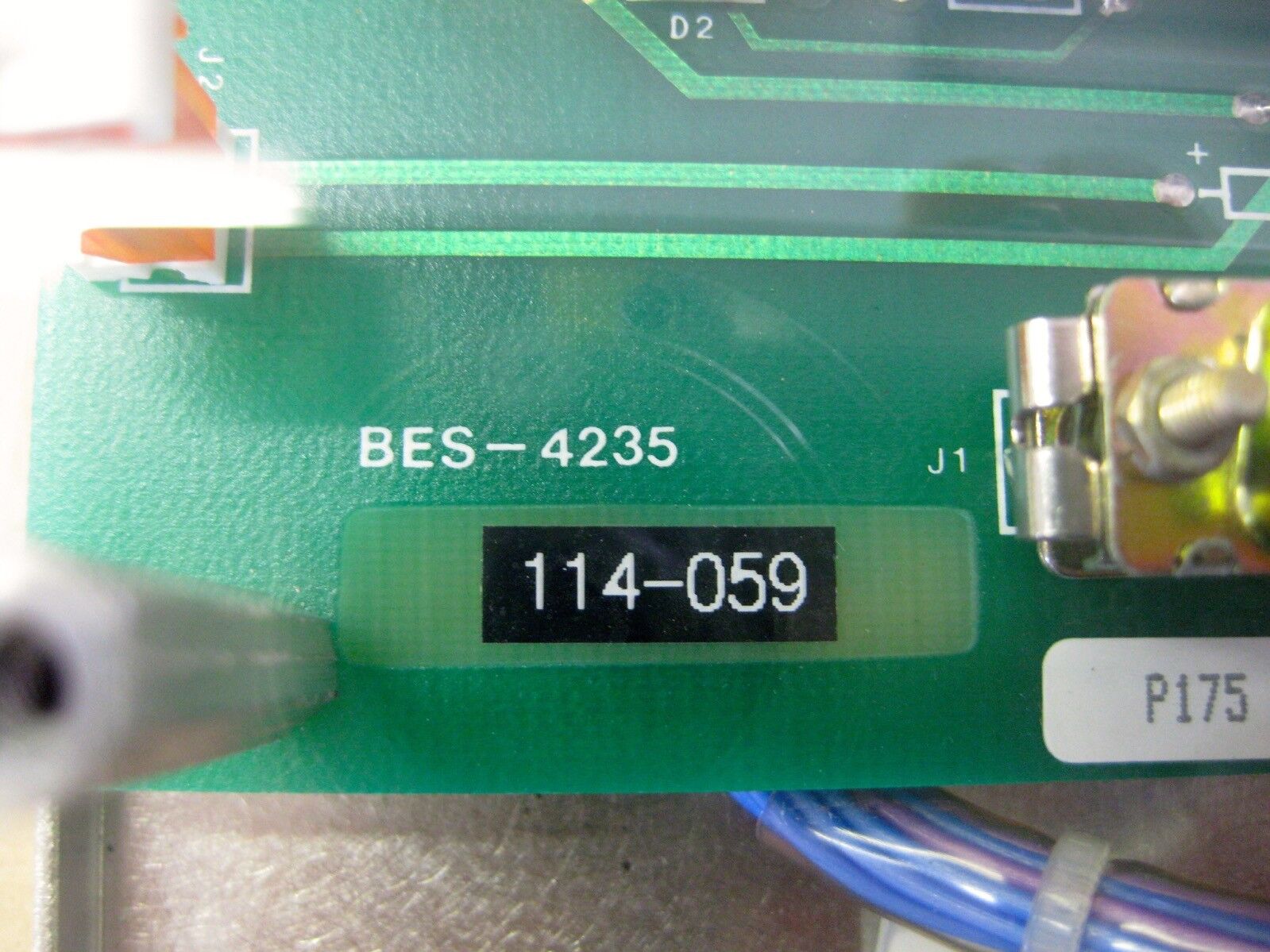

ASML 114-095 BES-4235

1.技术架构与创新

光学传感系统:

激光干涉仪:采用HeNe激光+光纤传感,分辨率≤0.5pm,抗环境干扰比≥60dB。

多模态校准算法:融合机器学习与有限元分析,对准时间缩短25%。

机械结构设计:

钛合金基底:热膨胀系数(CTE)<1ppm/℃,抗辐射损伤阈值≥10¹⁴photons/cm²。

气浮轴承系统:接触力≤0.5N,动态响应带宽≥2kHz。

2.工艺适配性

DUV光刻应用:

多层曝光兼容:支持5次以上曝光层叠加,套刻误差≤1.2nm(3σ)。

低剂量曝光优化:光强均匀性≥99.3%,单次曝光能量波动<1%。

特殊环境适配:

真空兼容性:在1×10⁻⁵Pa真空环境下保持定位精度。

温度控制:闭环温控系统,温度波动<0.05℃。

3.行业应用案例

台积电5nm工艺:2022年导入后,光刻缺陷密度降低20%,良率提升8%。

三星逻辑芯片制造:2023年用于存储器生产,关键层线宽偏差从±1.5nm降至±0.7nm。

中芯国际先进封装:2024年集成后,TSV通孔对准精度达±0.5μm。

分类: 品牌:

描述

产品简要说明

ASML 114-095 BES-4235是ASML深紫外(DUV)光刻机的核心校准模块,专为5nm及以下先进制程设计。其核心功能包括:

亚纳米级对准精度:平面误差≤0.1nm(RMS),旋转误差≤0.05角秒。

动态补偿能力:实时校正热漂移、振动干扰,补偿精度≥99.8%。

洁净室兼容性:表面颗粒污染≤0.1μm(Class 1标准),无油润滑设计。

产品详细说明

1.技术架构与创新

光学传感系统:

激光干涉仪:采用HeNe激光+光纤传感,分辨率≤0.5pm,抗环境干扰比≥60dB。

多模态校准算法:融合机器学习与有限元分析,对准时间缩短25%。

机械结构设计:

钛合金基底:热膨胀系数(CTE)<1ppm/℃,抗辐射损伤阈值≥10¹⁴photons/cm²。

气浮轴承系统:接触力≤0.5N,动态响应带宽≥2kHz。

2.工艺适配性

DUV光刻应用:

多层曝光兼容:支持5次以上曝光层叠加,套刻误差≤1.2nm(3σ)。

低剂量曝光优化:光强均匀性≥99.3%,单次曝光能量波动<1%。

特殊环境适配:

真空兼容性:在1×10⁻⁵Pa真空环境下保持定位精度。

温度控制:闭环温控系统,温度波动<0.05℃。

3.行业应用案例

台积电5nm工艺:2022年导入后,光刻缺陷密度降低20%,良率提升8%。

三星逻辑芯片制造:2023年用于存储器生产,关键层线宽偏差从±1.5nm降至±0.7nm。

中芯国际先进封装:2024年集成后,TSV通孔对准精度达±0.5μm。

技术规格:ASML 114-095 BES-4235

参数项规格描述

对准精度平面误差≤0.1nm(RMS),旋转误差≤0.05角秒

动态补偿带宽≥2kHz(0.1-2kHz频段)

环境适应性温度范围25℃±0.05℃,湿度40%±1%相对湿度

功耗≤25kW(连续运行)

Product brief description

ASML 114-095 BES-4235 is the core calibration module of ASML deep ultraviolet(DUV)lithography machine,designed for advanced processes 5nm and below.Its core functions include:

Sub-nanometer alignment accuracy:plane error≤0.1nm(RMS),rotation error≤0.05 arc seconds.

Dynamic compensation ability:real-time correction of thermal drift and vibration interference,and compensation accuracy≥99.8%.

Clean room compatibility:surface particle contamination≤0.1μm(Class 1 standard),oil-free lubricating design.

Product details

1.Technical Architecture and Innovation

Optical sensing system:

Laser interferometer:uses HeNe laser+fiber sensing,resolution≤0.5pm,and anti-environmental interference ratio≥60dB.

Multimodal calibration algorithm:Fusion machine learning and finite element analysis,the alignment time is reduced by 25%.

Mechanical structure design:

Titanium alloy substrate:thermal expansion coefficient(CTE)<1ppm/℃,radiation damage threshold≥10¹⁴photos/cm².

Air-floating bearing system:contact force≤0.5N,dynamic response bandwidth≥2kHz.

2.Process adaptability

DUV lithography applications:

Multi-layer exposure compatibility:supports overlay of exposure layers with more than 5 exposure times,with an incision error of≤1.2nm(3σ).

Low-dose exposure optimization:light intensity uniformity≥99.3%,single exposure energy fluctuation<1%.

Special environment adaptation:

Vacuum compatibility:Maintain positioning accuracy under a 1×10⁻⁵Pa vacuum environment.

Temperature control:closed-loop temperature control system,temperature fluctuation is<0.05℃.

3.Industry application cases

TSMC’s 5nm process:After introduction in 2022,the lithography defect density will be reduced by 20%,and the yield will be increased by 8%.

Samsung Logic chip manufacturing:used for memory production in 2023,the line width deviation of key layer dropped from±1.5nm to±0.7nm.

SMIC Advanced Package:After integration in 2024,the TSV through-hole alignment accuracy reaches±0.5μm.

Technical Specifications:ASML 114-095 BES-4235

Parameters Specification Description

Alignment accuracy Plane error≤0.1nm(RMS),rotation error≤0.05 angle seconds

Dynamic compensation bandwidth≥2kHz(0.1-2kHz band)

Environmental adaptability Temperature range 25℃±0.05℃,humidity 40%±1%relative humidity

Power consumption≤25kW(continuous operation)
