描述
一、产品概述

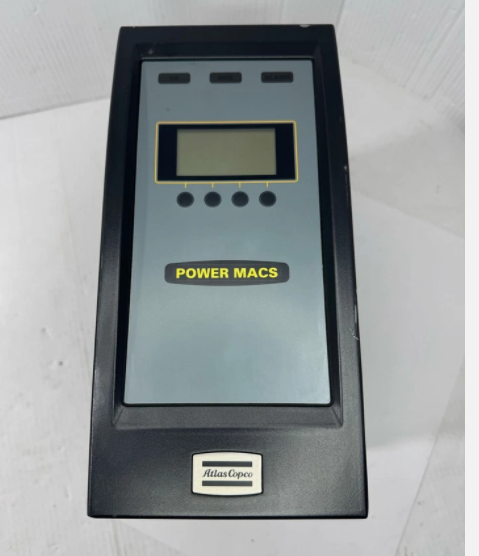

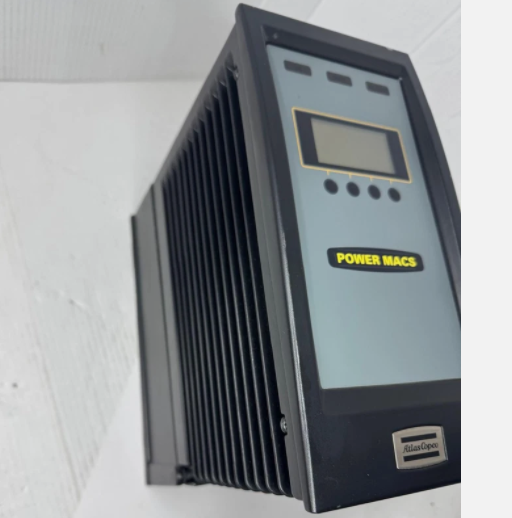

ATLAS TC-4000-S是阿特拉斯·科普柯（Atlas Copco）旗下的一款工业自动化控制设备，主要应用于电机驱动控制或精密拧紧系统，具体功能因型号后缀（如“-ES”）不同而有所差异。其核心特点包括高可靠性、多协议兼容及模块化设计，适用于制造业、能源、物流等领域。
二、核心功能与技术参数
1.作为交流驱动器（TC-4000-S）
控制能力：
支持三相交流电机控制，适用于工业自动化生产线、物流设备等场景。
采用先进控制算法，实现高精度转速与扭矩调节，效率可达95%以上。
保护功能：
集成过流、过压、欠压、过热保护，防止设备损坏。
支持短路保护与故障自诊断，提升系统稳定性。
通信接口：
支持Modbus、Profibus、EtherNet/IP等工业协议，可与PLC、HMI等设备无缝集成。
提供RS-485、以太网接口，支持远程监控与配置。
2.作为拧紧控制器（TC-4000-S-ES）
核心功能：
专为螺栓拧紧工艺设计，支持多轴同步控制，确保力矩与角度精度。
内置数据记录功能，可追溯拧紧过程参数（如力矩、转角、时间）。
技术参数：
防护等级：IP43（防尘防水）。
额定电压：3相交流电，工作温度范围-20°C至50°C。
功率：500W，支持高负载场景。
扩展性：
支持多控制器级联，适用于复杂装配线。
兼容多种传感器与执行器，如扭矩传感器、伺服电机等。
1.Product Overview
ATLAS TC-4000-S is an industrial automation control device under Atlas Copco.It is mainly used in motor drive control or precision tightening systems.The specific functions vary according to the model suffix(such as”-ES”).Its core features include high reliability,multi-protocol compatibility and modular design,which are suitable for manufacturing,energy,logistics and other fields.
2.Core functions and technical parameters
1.As an AC drive(TC-4000-S)
Control ability:
Supports three-phase AC motor control and is suitable for industrial automation production lines,logistics equipment and other scenarios.
Advanced control algorithms are adopted to achieve high-precision speed and torque adjustment,with an efficiency of more than 95%.
Protection function:
Integrated overcurrent,overvoltage,undervoltage and overheating protection to prevent equipment damage.
Supports short-circuit protection and fault self-diagnosis to improve system stability.
Communication interface:
Supports industrial protocols such as Modbus,Profibus,EtherNet/IP,and can be seamlessly integrated with PLC,HMI and other devices.
Provides RS-485 and Ethernet interfaces,supporting remote monitoring and configuration.
2.As a tightening controller(TC-4000-S-ES)
Core functions:
Designed for bolt tightening process,it supports multi-axis synchronous control to ensure torque and angle accuracy.
Built-in data recording function,which can trace the tightening process parameters(such as torque,angle,time).
Technical parameters:
Protection level:IP43(dust-proof and waterproof).
Rated voltage:3-phase AC,operating temperature range-20°C to 50°C.
Power:500W,supports high load scenarios.
Scalability:
Supports multi-controller cascade,suitable for complex assembly lines.
Compatible with a variety of sensors and actuators,such as torque sensors,servo motors,etc.
