描述

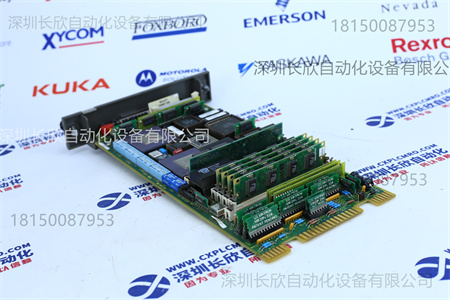

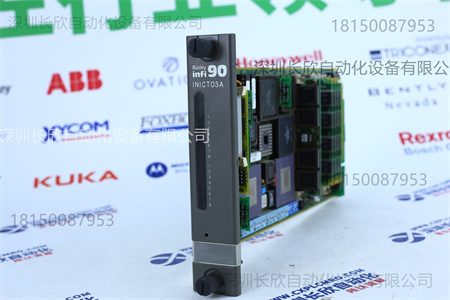

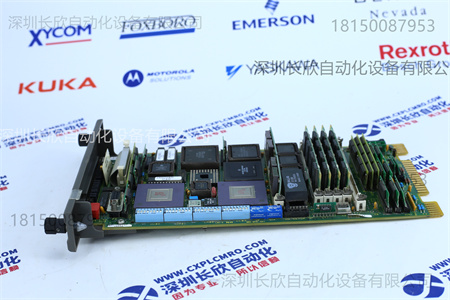

BAILEY INICT03A是ABB Bailey推出的一款计算机传输模块，主要用于实现Infi-Net到计算机的数据传输，通常与ABB Bailey Infi 90以及Net 90系统配合使用。以下是其详细信息：
电源要求：5VDC，2A，典型功耗为10W。
通信接口与速率：支持RS-232和RS-485通信，RS-232-C通信速率用户可选，最高可达19.2kbaud；SCSI接口速率最高可达4MB/s。
内存：512KB ROM，2MB RAM。
工作温度与湿度：工作温度范围为-10℃至60℃，湿度为0至95%无冷凝。
尺寸重量：尺寸为178mm×51mm×330mm，重量约0.6kg。
产品特点：支持多种Infi-Net网络，兼容性强；具备冗余硬件和通信媒体，可靠性高；采用紧凑设计，易于安装和配置，可轻松集成到现有系统中。
应用领域：可应用于SCADA系统、DCS系统、工厂监测系统和数据记录系统等工业自动化领域。
The BAILEY INICT03A is a computer transmission module launched by ABB Bailey.It is primarily used for data transmission from Infi-Net to a computer and is typically used with the ABB Bailey Infi 90 and Net 90 systems.The following are its details:
Power Requirements:5VDC,2A,typical power consumption 10W.
Communication Interface and Speed:Supports RS-232 and RS-485 communications,with user-selectable RS-232-C communication speeds up to 19.2kbaud;SCSI interface speeds up to 4MB/s.
Memory:512KB ROM,2MB RAM.
Operating Temperature and Humidity:Operating temperature range-10°C to 60°C,humidity 0 to 95%non-condensing.
Dimensions and Weight:178mm×51mm×330mm,weight approximately 0.6kg.Product Features:Supports multiple Infi-Net networks for strong compatibility;features redundant hardware and communication media for high reliability;and features a compact design that is easy to install and configure,allowing for simple integration into existing systems.
Applications:Suitable for industrial automation applications such as SCADA systems,DCS systems,plant monitoring systems,and data logging systems.
