描述
产品概述

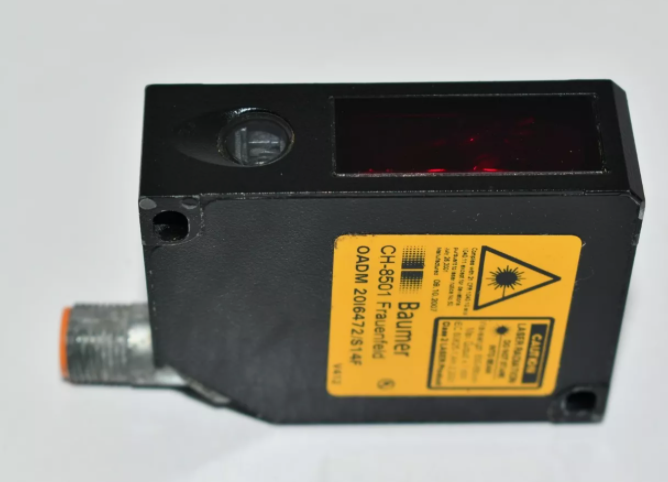

BAUMER OADM 20I6572/S14F是堡盟（Baumer）品牌的激光测距传感器，专为工业自动化场景设计，支持高精度非接触式距离测量，适用于机器人、实验室设备、光伏检测、特种设备监测等领域。其核心功能包括远距离测距、抗干扰能力强及工业级可靠性。
技术参数
硬件规格
测量范围：50 mm至300 mm（最小/最大距离）。
分辨率：0.01 mm至0.33 mm（取决于测量范围）。
响应时间：900μs（典型值）。
工作电压：12-28 V DC。
输出信号：4-20 mA模拟电流输出或0-10 V模拟电压输出。
防护等级：IP 67，适用于潮湿、粉尘等工业环境。
安装方式：板式安装（BOARD MOUNT），尺寸65 mm×20.6 mm×50 mm，重量0.5 g。
功能特性
激光测距原理：
采用脉冲红光激光二极管（650 nm波长），光束类型为线性光束，宽度2.5 mm，高度4-12 mm。
支持教具模式（TEACH-IN）校准，可通过按钮或外部信号调整测量范围。
抗干扰设计：
内置过压保护、短路保护及反向极性保护，适应强电磁干扰环境。
通过EMI认证，确保信号稳定性。
环境适应性：
工作温度范围：-20°C至50°C。
温度漂移：<0.03%Sd/K（测量距离的线性误差）。
核心功能特点
高精度与稳定性
线性误差低于0.03%，适用于精密检测场景，如机器人定位、光伏板尺寸测量等。
灵活配置
支持教具模式校准，可适应不同测量需求，例如动态调整最小检测距离（≥5 mm）。
提供模拟电流和电压双输出接口，兼容多种控制系统。
工业级可靠性
高防护等级（IP 67）和抗振动设计，适用于工厂、实验室等严苛环境。
长寿命激光源，确保长期稳定运行。
Product Overview
BAUMER OADM 20I6572/S14F is a Baumer brand laser ranging sensor designed for industrial automation scenarios and supports high-precision contactless distance measurement.It is suitable for robots,laboratory equipment,photovoltaic detection,special equipment monitoring and other fields.Its core functions include long-distance ranging,strong anti-interference ability and industrial-grade reliability.
Technical parameters
Hardware specifications
Measurement range:50 mm to 300 mm(min/maximum distance).
Resolution:0.01 mm to 0.33 mm(depending on measurement range).
Response time:900μs(typical).
Operating voltage:12-28 V DC.
Output signal:4-20 mA analog current output or 0-10 V analog voltage output.
Protection level:IP 67,suitable for industrial environments such as humidity and dust.
Installation method:Board mounting(BOARD MOUNT),dimensions 65 mm×20.6 mm×50 mm,weight 0.5 g.
Functional Features
Laser ranging principle:
Pulse red laser diode(650 nm wavelength)is used,the beam type is linear beam,width is 2.5 mm,height is 4-12 mm.
Supports teaching aid mode(TEACH-IN)calibration,and the measurement range can be adjusted through buttons or external signals.
Anti-interference design:
Built-in overvoltage protection,short circuit protection and reverse polarity protection to adapt to strong electromagnetic interference environments.
EMI certification ensures signal stability.
Environmental adaptability:
Operating temperature range:-20°C to 50°C.
Temperature drift:<0.03%Sd/K(linear error of measurement distance).
Core functional features
High precision and stability
The linear error is less than 0.03%,and it is suitable for precision detection scenarios,such as robot positioning,photovoltaic panel size measurement,etc.
Flexible configuration
Supports teaching aid mode calibration,which can adapt to different measurement needs,such as dynamically adjusting the minimum detection distance(≥5 mm).
Provides dual output interfaces for analog current and voltage,and is compatible with a variety of control systems.
Industrial-grade reliability
High protection level(IP 67)and vibration-resistant design,suitable for harsh environments such as factories and laboratories.
Long-life laser source ensures long-term and stable operation.
