描述

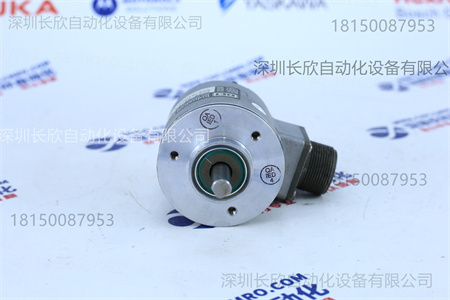

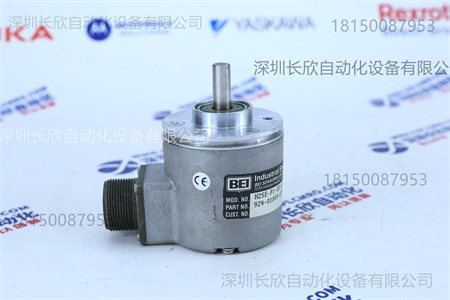

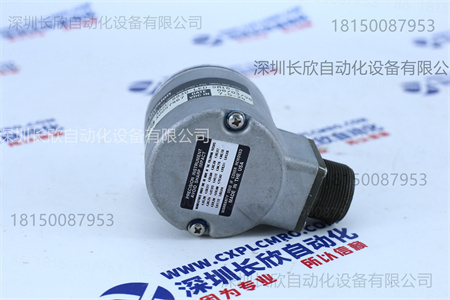

EI H25E-F1-SS-10是一款高性能的增量式旋转编码器，属于BEI Sensors的H25系列，该系列是其产品线的旗舰级产品。以下是其详细信息：
产品类型：增量式旋转编码器。
应用领域：适用于多种工业场景，包括机器控制、过程控制、木材加工业、油井测井、工业称重、农业机械、纺织设备、卷筒纸过程控制、机器人以及食品加工等。
功能特点
高精度测量：能够提供准确的位置反馈，确保工业设备的精确运行。
坚固耐用：采用全金属结构，可承受恶劣的工业环境，如振动、冲击、灰尘和湿气等。
EMI屏蔽：具备EMI屏蔽功能，可有效减少电磁干扰，保证编码器信号的稳定性和可靠性。
高质量轴承：配备40磅ABEC 7轴承（3/8″轴），具有较长的使用寿命和低启动扭矩，不带轴封的启动扭矩最大为1.0 in-oz。
热膨胀匹配：关键部件的热膨胀系数相匹配，可在不同温度环境下保持良好的性能。
部分技术参数
轴径：3/8″（特殊型号可为1/2″）。
轴负载：3/8″轴的轴向负载为40磅，径向负载为35磅。
输出选项：通常提供A、B、Z相输出，部分型号还可能有C相输出，如H25E-F1-SS-1024-ABZC-15V/V-SM12，其中“ABZC”表示有A、B、Z、C相输出。
工作电压：不同型号工作电压不同，常见的有15V、28V等。
分辨率：H25系列编码器提供多种分辨率选择，H25E-F1-SS-10中的“10”可能代表分辨率为10PPR（每转脉冲数），不过具体分辨率还需根据完整型号确认，该系列其他型号有100PPR、1024PPR、2500PPR等多种选择。
The EI H25E-F1-SS-10 is a high-performance incremental rotary encoder belonging to BEI Sensors’H25 series,the flagship product line.Here are its details:
Product Type:Incremental Rotary Encoder
Applications:Suitable for various industrial scenarios,including machine control,process control,wood processing,oil well logging,industrial weighing,agricultural machinery,textile equipment,roll paper process control,robotics,and food processing.
Features:
High-Precision Measurement:Provides accurate position feedback,ensuring precise operation of industrial equipment.
Rugged and Durable:Utilizes an all-metal construction,capable of withstanding harsh industrial environments such as vibration,shock,dust,and moisture.
EMI Shielding:Equipped with EMI shielding,effectively reducing electromagnetic interference and ensuring the stability and reliability of the encoder signal.
High-quality bearings:Equipped with 40-pound ABEC 7 bearings(3/8″shaft),offering long service life and low starting torque;the maximum starting torque without shaft seals is 1.0 in-oz.
Thermal expansion matching:The thermal expansion coefficients of key components are matched to maintain good performance under various temperature conditions.
Partial technical parameters:
Shaft diameter:3/8″(1/2″available for special models).
Shaft load:40 lbs axial load and 35 lbs radial load for the 3/8″shaft.
Output options:Typically offers A,B,and Z phase outputs;some models may also have a C phase output,such as H25E-F1-SS-1024-ABZC-15V/V-SM12,where”ABZC”indicates A,B,Z,and C phase outputs.
Operating voltage:Operating voltage varies depending on the model;common options include 15V and 28V.
Resolution:The H25 series encoders offer a variety of resolution options.The”10″in H25E-F1-SS-10 may represent a resolution of 10 PPR(pulses per revolution),but the specific resolution needs to be confirmed based on the complete model number.Other models in this series offer options such as 100 PPR,1024 PPR,and 2500 PPR.
