描述

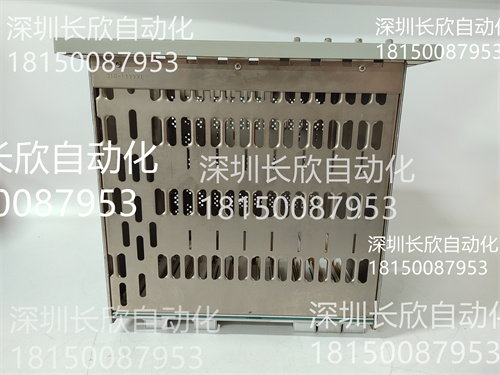

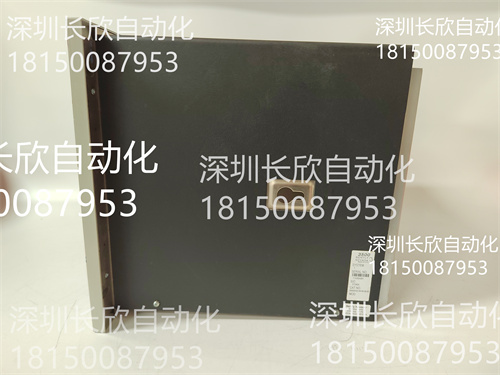

本特利内华达3500/05系统机架
3500系统机架的主要功能是容纳所有3500监控模块和电源，使它们能够相互通信并为各个模块分配电源。其设计旨在确保在严苛的工业环境中实现高可靠性和耐用性。
主要功能和特点：
模块化设计：机架提供各种3500系列模块的插槽，包括监控模块（用于振动、温度、位置等）、继电器模块、通信网关和电源。
通信主干：它充当3500系统内部模块间通信的背板，确保不同监控和控制组件之间的无缝数据流。
配电：机架将已安装电源模块的电源分配给所有其他模块，确保系统稳定可靠地运行。
可扩展性：3500系统具有可扩展性，用户可以选择合适的机架尺寸并安装必要的模块，以满足不同机械类型和关键等级的特定监控需求。
高可靠性：作为3500系列的一部分，该机架符合API 670等严格的行业标准，这对于涡轮机械保护应用至关重要。它支持冗余电源，可延长系统正常运行时间。
3500/05-02-04-00-00-000配置详解
详细的部件号后缀指定了机架的物理特性和基本选项：
3500/05：这表示它本身就是系统机架。
02（第一字段-机架尺寸）：这表示一个12英寸迷你机架，带有7个可用模块插槽。与19英寸全尺寸机架（有14个插槽）相比，这是一个更紧凑的版本。
04（第二字段-安装选项）：这指定了迷你机架的面板安装选项。这意味着该机架设计为安装在控制面板上的矩形开孔中，并用夹具固定。在此配置中，通常可从机架后部访问线路连接和I/O模块。
00（第三字段-机构认证选项）：无特定机构认证。这意味着它未获得CSA、ATEX或IECEx等危险区域使用认证（尽管其本身具有一般工业合规性）。
00（第四字段-保留）：此字段通常保留用于将来的选项，或在此上下文中没有特定含义。
00（第五字段-欧洲合规性选项）：无特定的欧洲合规性（例如CE）。虽然许多Bently Nevada产品都符合CE标准，但此特定配置并未通过订购代码明确指明。
000（第六字段-特殊选项/版本）：通常表示此配置没有特殊选项或标准版本。
Bently Nevada 3500/05 System Rack
The 3500 System Rack’s primary function is to house all the 3500 monitor modules and power supplies,allowing them to communicate with one another and providing power distribution to each module.It’s designed for high reliability and durability in harsh industrial settings.
Key Functions and Features:
Modular Design:The rack provides slots for various 3500 series modules,including monitor modules(for vibration,temperature,position,etc.),relay modules,communication gateways,and power supplies.
Communication Backbone:It acts as the backplane for inter-module communication within the 3500 system,ensuring seamless data flow between the different monitoring and control components.
Power Distribution:The rack distributes power from the installed power supply modules to all other modules,ensuring stable and reliable operation.
Scalability:The 3500 system is scalable,allowing users to select the appropriate rack size and populate it with the necessary modules to meet specific monitoring requirements for different machinery types and criticality levels.
High Reliability:As part of the 3500 series,the rack is built to meet stringent industry standards like API 670,which is crucial for turbomachinery protection applications.It supports redundant power supplies for increased system uptime.
Breakdown of the 3500/05-02-04-00-00-000 Configuration
The detailed part number suffix specifies the physical characteristics and basic options of the rack:
3500/05:This identifies it as the System Rack itself.
02(First field-Rack Size):This indicates a 12-inch Mini-Rack with 7 available module slots.This is a more compact version compared to the 19-inch full-size rack(which has 14 slots).
04(Second field-Mounting Option):This specifies a Panel Mount Option for the Mini-Rack.This means the rack is designed to mount into a rectangular cutout in a control panel,securing with clamps.Wiring connections and I/O modules are typically accessible from the rear of the rack in this configuration.
00(Third field-Agency Approval Option):No specific agency approvals.This means it does not come with certifications like CSA,ATEX,or IECEx for hazardous area use(though general industrial compliance is inherent).
00(Fourth field-Reserved):This field is typically reserved for future options or has no specific meaning in this context.
00(Fifth field-European Compliance Option):No specific European Compliance(e.g.,CE).While many Bently Nevada products are CE compliant,this specific configuration doesn’t explicitly denote it via the ordering code.
000(Sixth field-Special Options/Revision):Usually indicates no special options or a standard revision for this configuration.
